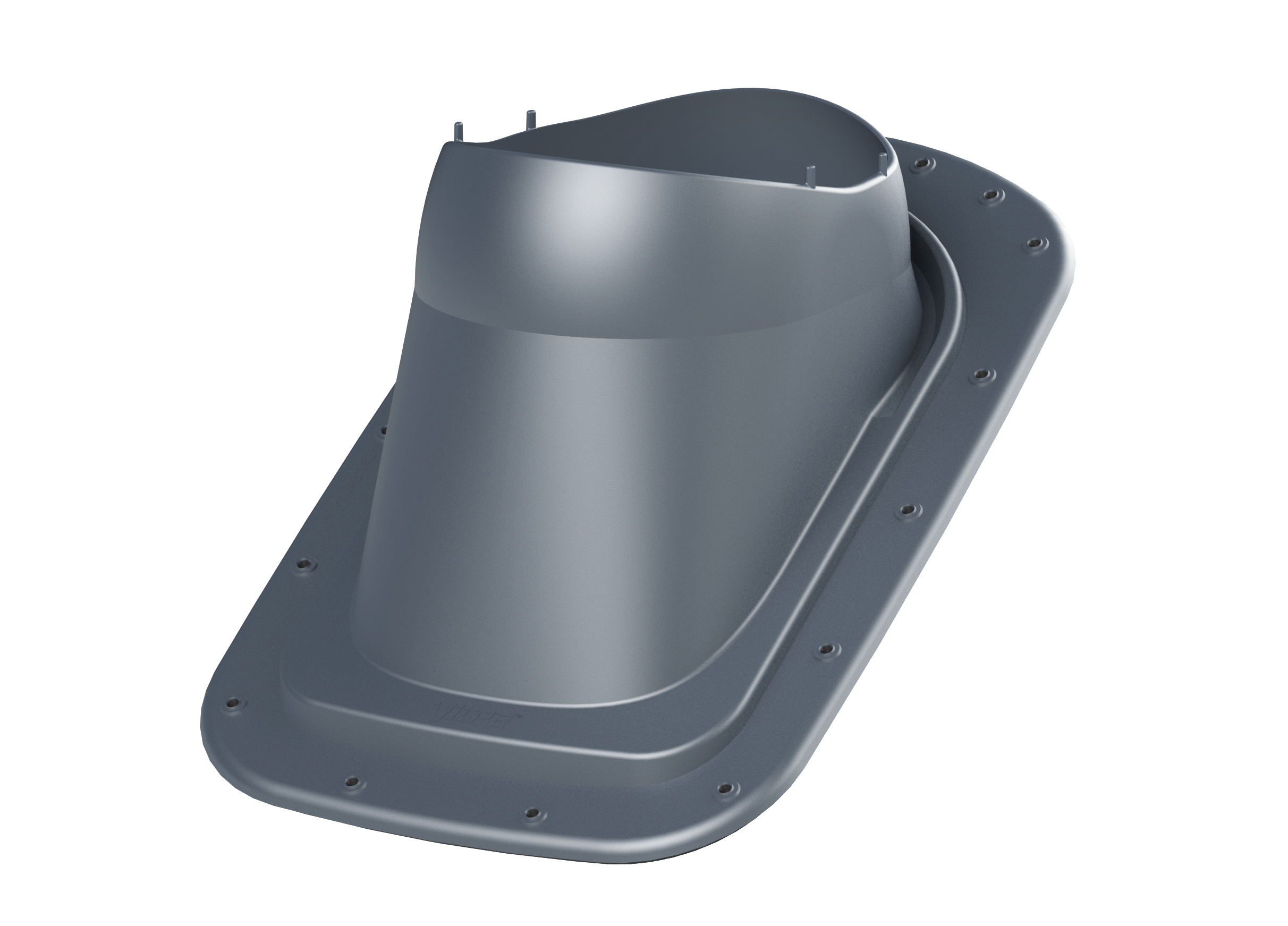

Classic Vino 2K Pass-Through

Description: The VILPE Classic Vino 2K is a new, progressive pass-through for plain standing seam roofs or felt roofs (if retrofitted). Can be installed on roofs with pitches between 1:5 (11.5 degrees) and 57 degrees, as its collar is steeper than that of previous models–enabling installation on steeper roofs compared to the original VILPE Classic pass-through. The stylish and angular VILPE Classic Vino 2K is also more elegant on a linear sheet metal roof than its predecessor. The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Classic Vino 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Sealing compound (not incl.) required for installation on felt roofs.

Contents: Pass-through, underlay 2K seal, screws, installation instructions/template for underlay seal and pass-through.

Color
Green
Black
Light Grey
Brown
Grey
Red
Brick Red
Product number746006
LVI Code7820181
EAN Code6410457460069
Color Green | RR11 | RAL6020
Weight Gross: 1.834kg, Net: 1.405kg
Product number746002
LVI Code7820179
EAN Code6410457460021
Color Black | RR33 | RAL9005
Weight Gross: 1.774kg, Net: 1.345kg
Product number746001
LVI Code7820178
EAN Code6410457460014
Color Light Grey | RAL7040
Weight Gross: 1.838kg, Net: 1.409kg
Product number746004
LVI Code7820180
EAN Code6410457460045
Color Brown | RR32 | RAL8019
Weight Gross: 1.774kg, Net: 1.345kg
Product number746007
LVI Code7820182
EAN Code6410457460076
Color Grey | RR23 | RAL7024
Weight Gross: 1.834kg, Net: 1.405kg
Product number746008
LVI Code7820183
EAN Code6410457460083
Color Red | RR29 | RAL3009
Weight Gross: 1.834kg, Net: 1.405kg
Product number746009
LVI Code7820184
EAN Code6410457460090
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.834kg, Net: 1.405kg
