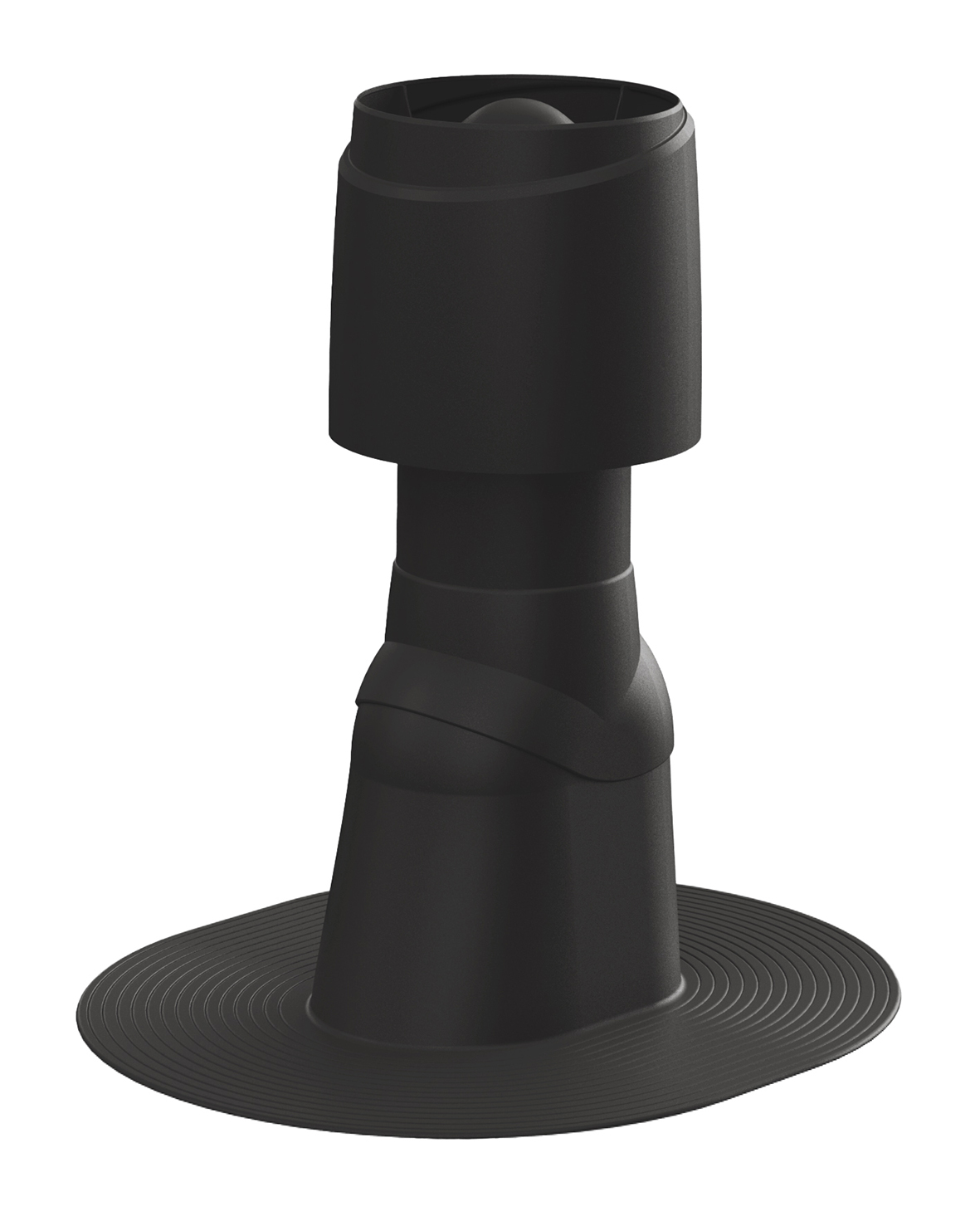

Alipai FLOW Low-Pitched/Inclined

Description: Negative pressure air vent for the ventilation of gently sloping felt roof structures (with a pitch of 0–20 degrees).

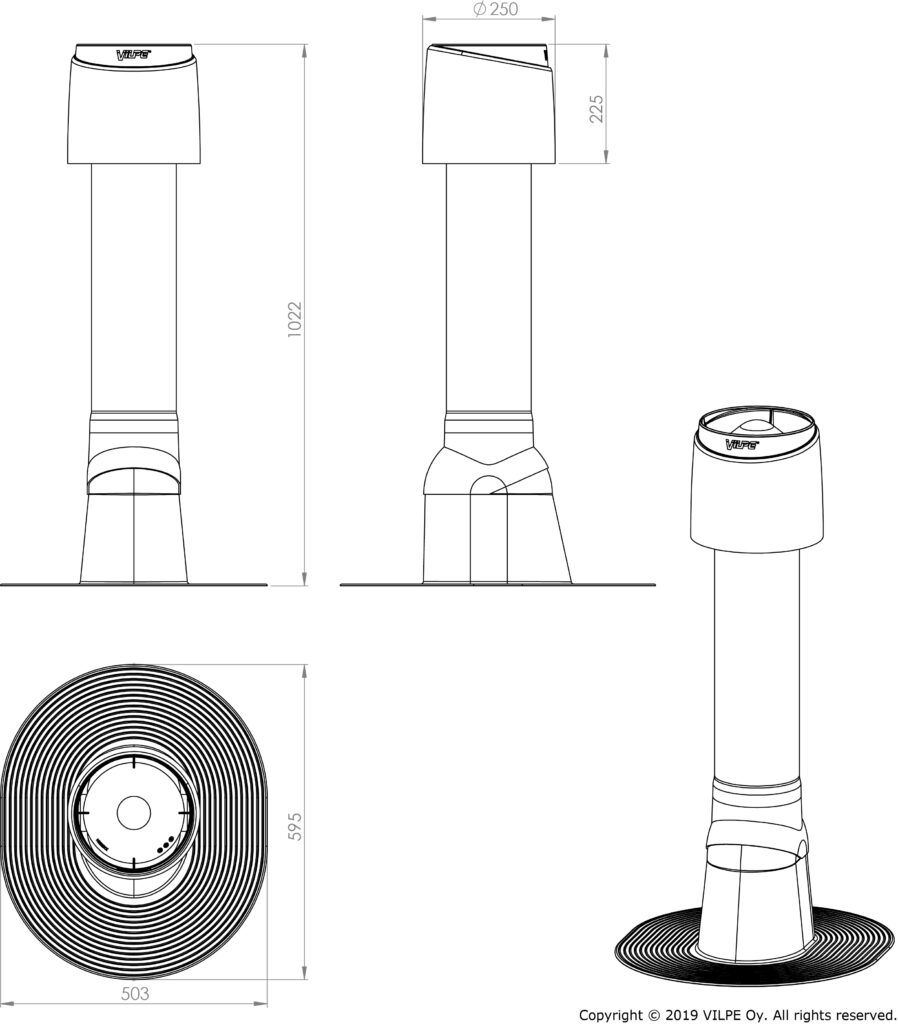

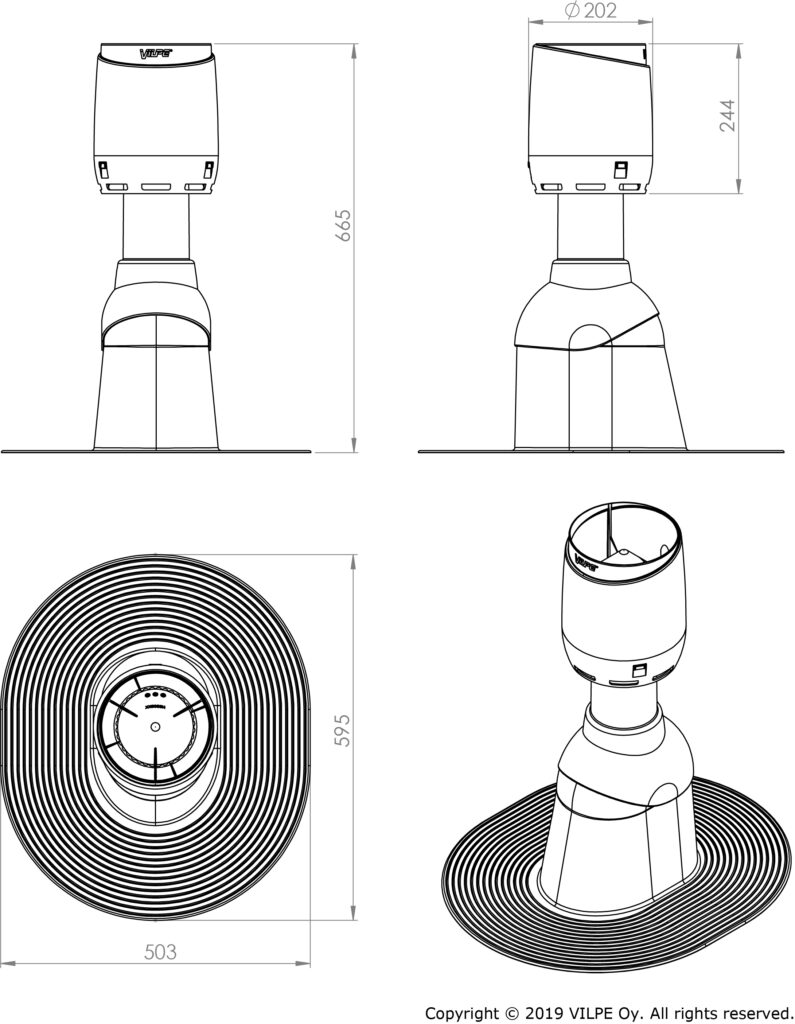

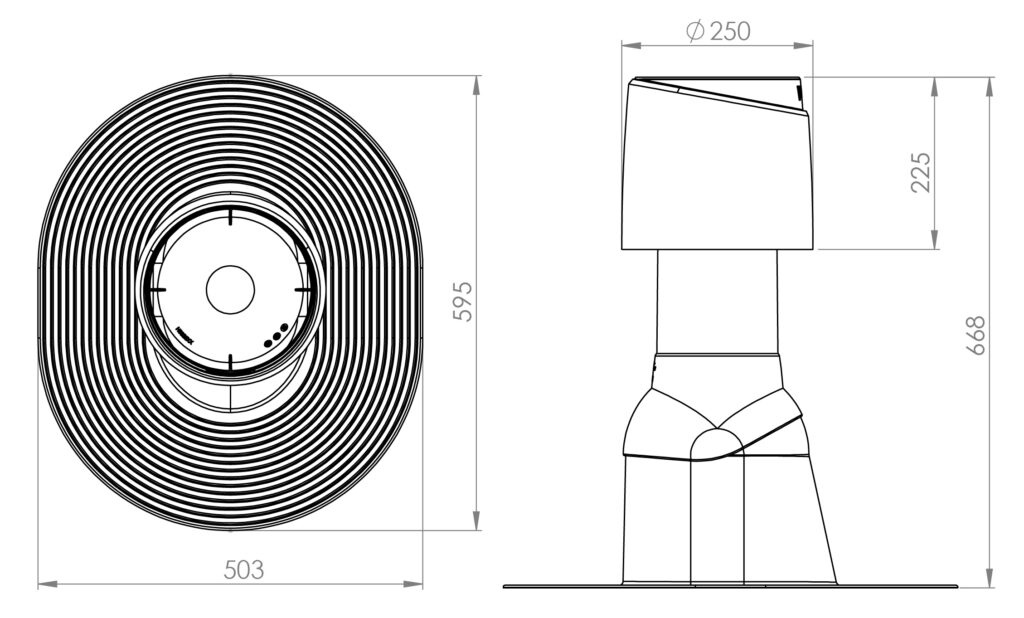

Dimensions: Height 665/668/1022 mm, stem height 200 mm.

Contents: Tall felt pass-through, negative pressure air vent pipe, VILPE FLOW cowl, screws.
Model
Ø 160/620 mm
Ø 160/1000 mm
Ø 110/640 mm
ModelØ 160/620 mm
Product number730172
LVI Code7820441
EAN Code6410457301720
Color Black | RR33 | RAL9005
Weight Gross: 2.586kg, Net: 2.357kg
ModelØ 160/1000 mm
Product number730202
LVI Code7820442
EAN Code6410457302024
Color Black | RR33 | RAL9005
Weight Gross: 3.381kg, Net: 2.924kg
ModelØ 110/640 mm
Product number732172
LVI Code7820445
EAN Code6410457321728
Color Black | RR33 | RAL9005
Weight Gross: 2.496kg, Net: 2.268kg
SKU: N/A Categories: ,
Share product page
Print pdf

Download CAD Models

Prodlib file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Alipai, Ventilation of structures
