Aalto 2K Pass-Through

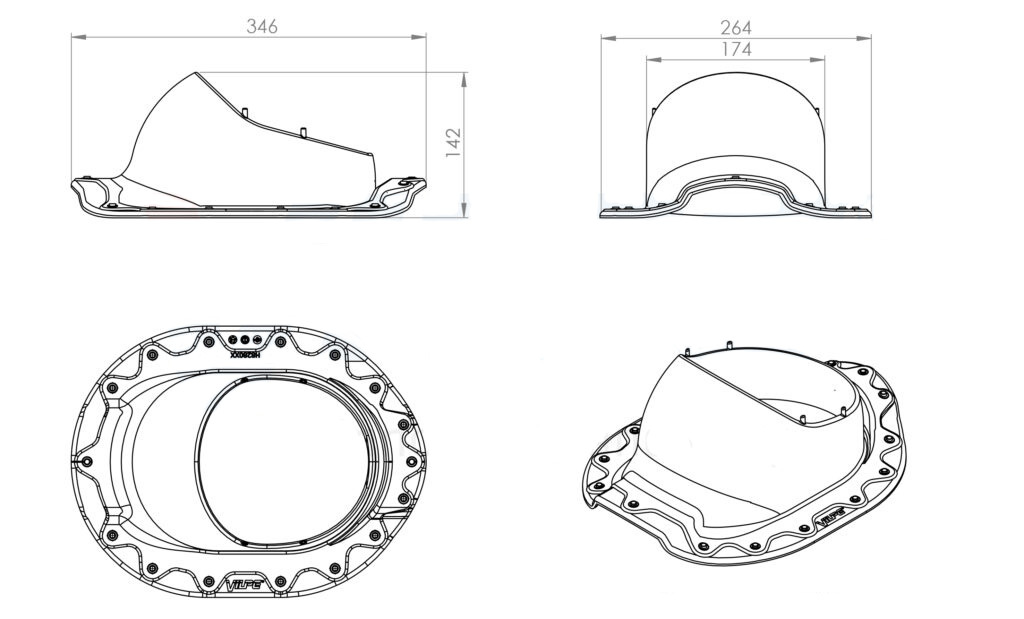

Description: The VILPE Aalto 2K is a new, progressive pass-through for sheet metal roofs such as Ruukki’s Adamante, or other equivalent round-profile, tile-patterned roofs. The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Aalto 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay 2K seal, sealing compound, screws, installation instructions/template for underlay seal and pass-through.

Brick Red
Chocolate Brown
Product number740742
LVI Code7820199
EAN Code6410457407422
Color Black | RR33 | RAL9005
Weight Gross: 1.639kg, Net: 1.21kg
Product number740744
LVI Code7820200
EAN Code6410457407446
Color Brown | RR32
Weight Gross: 1.64kg, Net: 1.211kg
Product number740746
LVI Code7820201
EAN Code6410457407460
Color Green | RR11
Weight Gross: 1.794kg, Net: 1.458kg
Product number740747
LVI Code7820202
EAN Code6410457407477

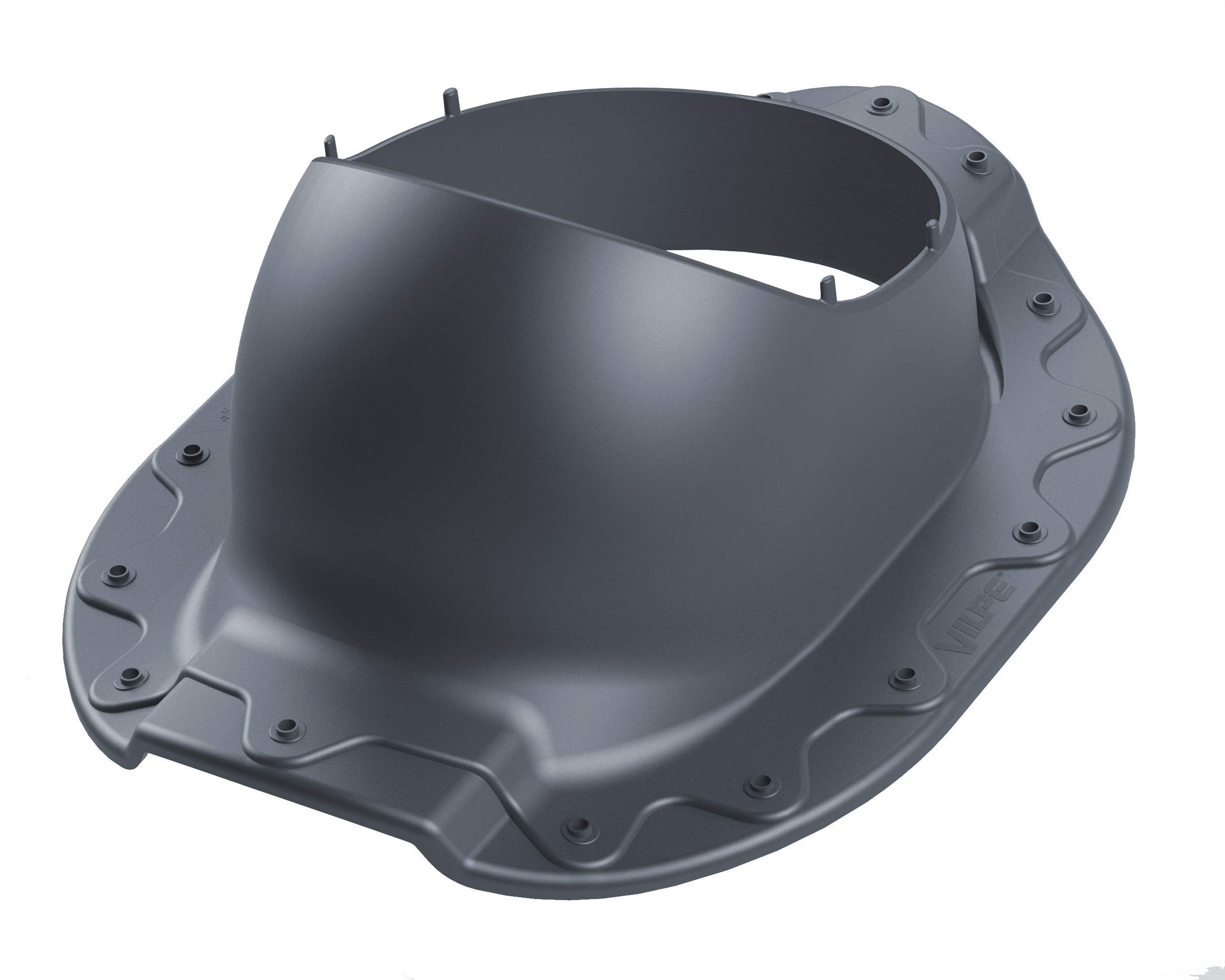

Color Grey | RR23 | RAL7015
Weight Gross: 1.6kg, Net: 1.171kg
Product number740748
LVI Code7820203
EAN Code6410457407484
Color Red | RR29 | RAL3009
Weight Gross: 1.6kg, Net: 1.171kg
Product number740749
LVI Code7820204
EAN Code6410457407491
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.794kg, Net: 1.458kg
Product number74074B
EAN Code6417323850238
Color Chocolate Brown | RR887
Weight Gross: 1.794kg, Net: 1.458kg
Product number74074A
EAN Code6417323850214
Color Aubergine | RR779
Weight Gross: 1.794kg, Net: 1.458kg
Product number74074W
EAN Code6417323850221
Color Winered | RR798
Weight Gross: 1.794kg, Net: 1.458kg
Product number74074G
EAN Code6417323850603
Color Anthracite
Weight Gross: 1.794kg, Net: 1.458kg
Share product page
Roof MaterialSteel
Materialspolypropene plastic (PP)
Package includesfixing screws, installation instructions, pass-through, sealing for underlay, template
