250C/IS/450 XL EXHAUST VENTILATION PIPE

DISCONTINUED

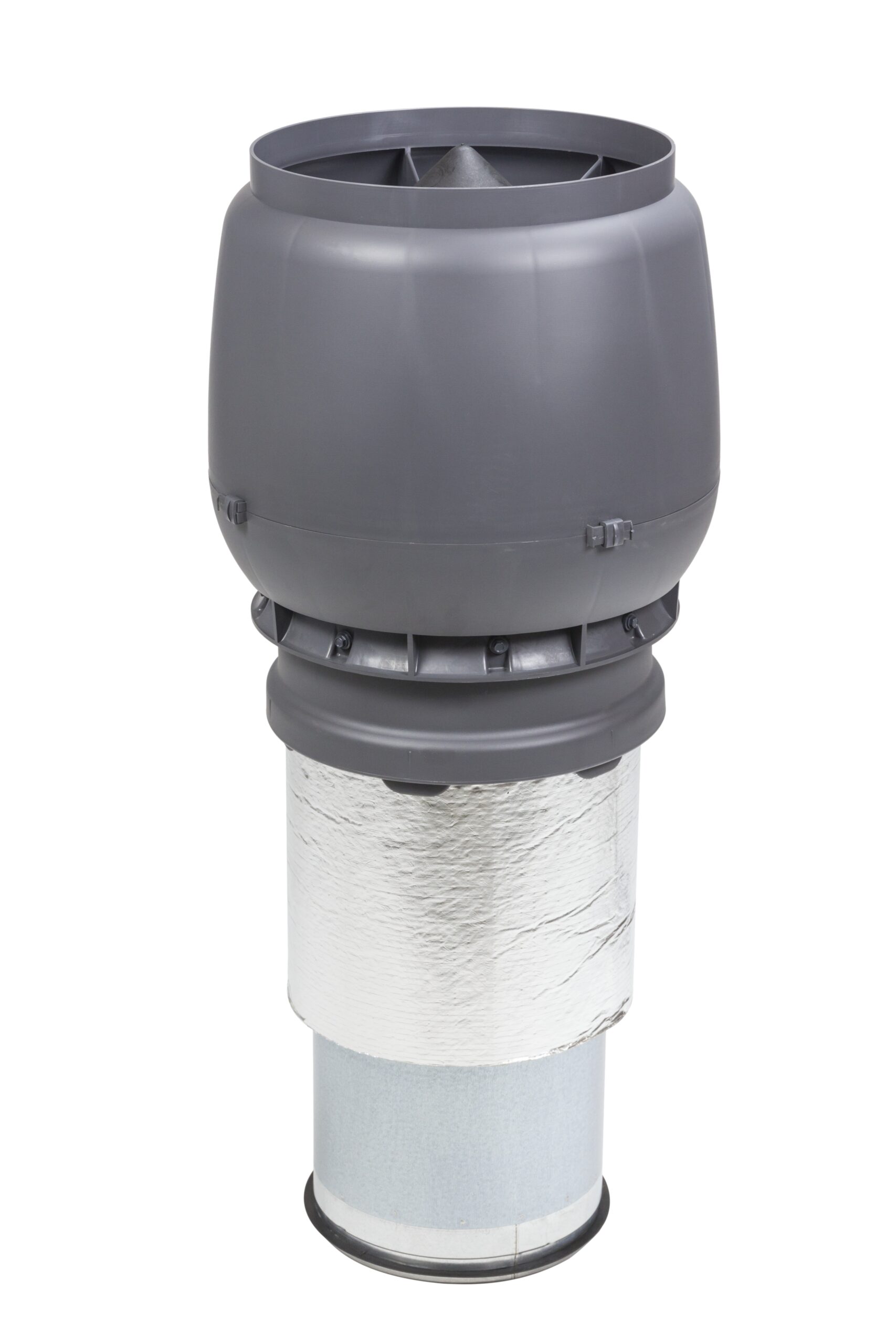

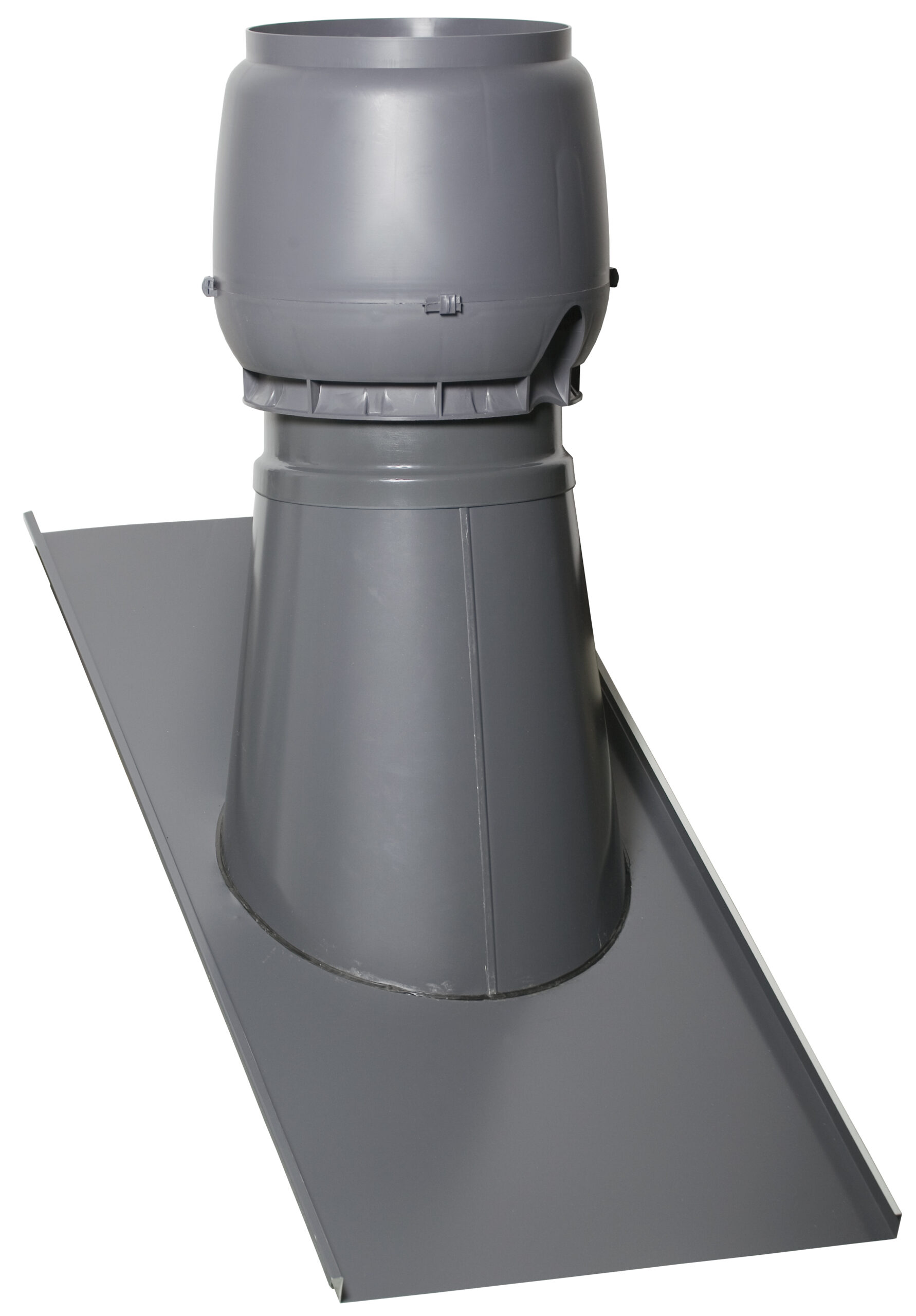

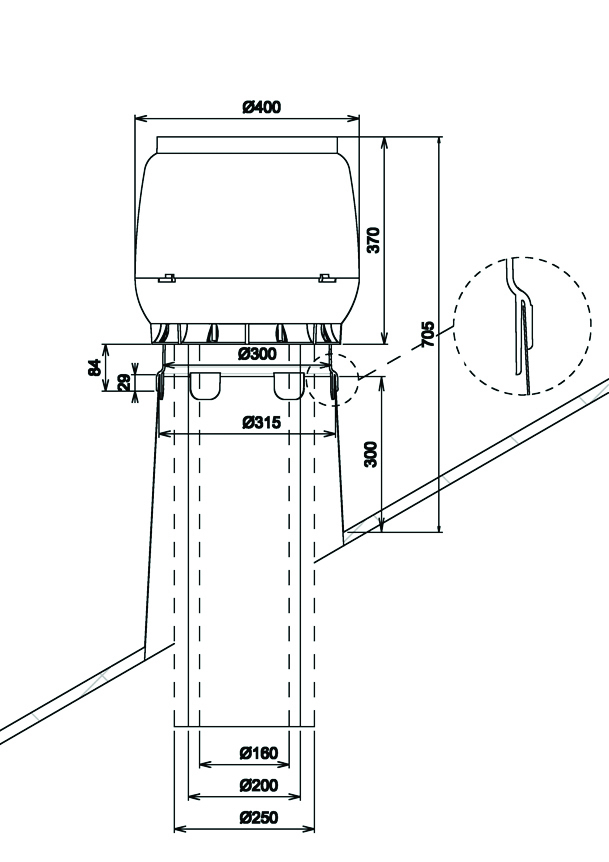

Description: Insulated exhaust ventilation XL pipe with a cowl. Inner pipe is made of galvanized steel and has a lip seal. Installed in a sheet metal cone with opening Ø 315 mm, made by a sheet metal worker.

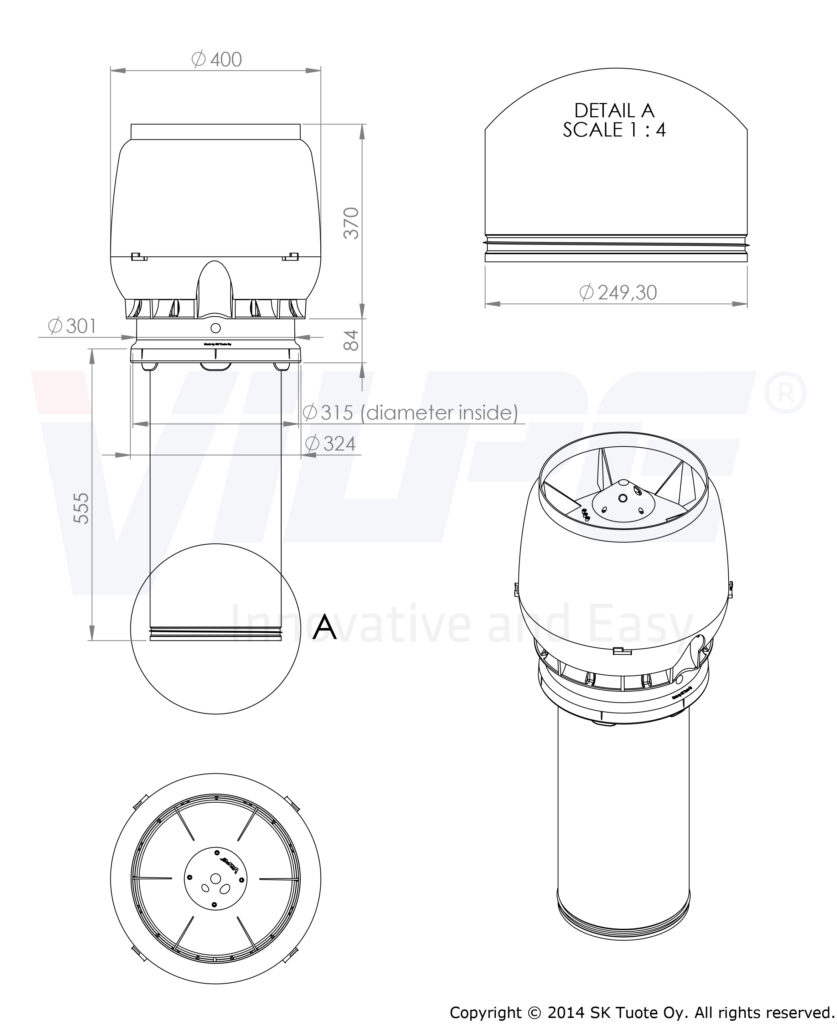

Dimensions: Duct size Ø 250 mm, external Ø 300 mm, height 450 mm.

Contents: Exhaust ventilation pipe, cowl, screws.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number791232
LVI Code7814922
EAN Code6410457912322
Color Black | RR33 | RAL9005
Weight Gross: 6.955kg, Net: 5.525kg
Product number791234
LVI Code7814924
EAN Code6410457912346
Color Brown | RR32
Weight Gross: 6.955kg, Net: 5.525kg
Product number791236
LVI Code7814926
EAN Code6410457912360
Color Green | RR11
Weight Gross: 6.955kg, Net: 5.525kg
Product number791237
LVI Code7814927
EAN Code6410457912377
Color Grey | RR23 | RAL7015
Weight Gross: 6.955kg, Net: 5.525kg
Product number791238
LVI Code7814928
EAN Code6410457912384
Color Red | RR29 | RAL3009
Weight Gross: 6.955kg, Net: 5.525kg
Product number791239
LVI Code7814929
EAN Code6410457912391
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.955kg, Net: 5.525kg
SKU: N/A Category:
Share product page
Print pdf
Duct size250 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws

Download CAD Models

Download DWG-file
79123x.dwg
MagiCAD file
Product categories: Discontinued
