200C/IS/450 XL EXHAUST VENTILATION PIPE
200C/IS/450 XL EXHAUST VENTILATION PIPE - Image 2

200C/IS/450 XL EXHAUST VENTILATION PIPE

DISCONTINUED

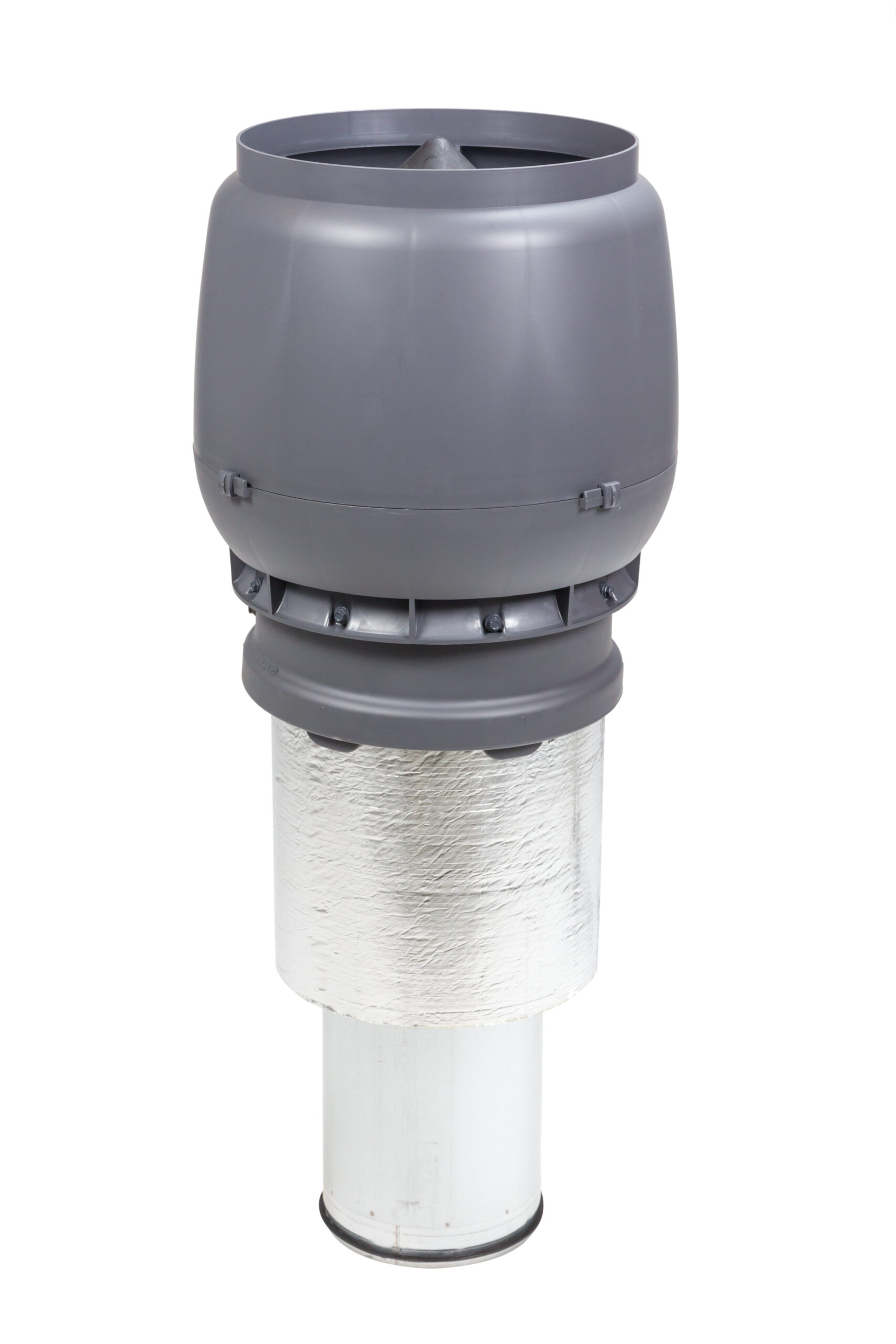

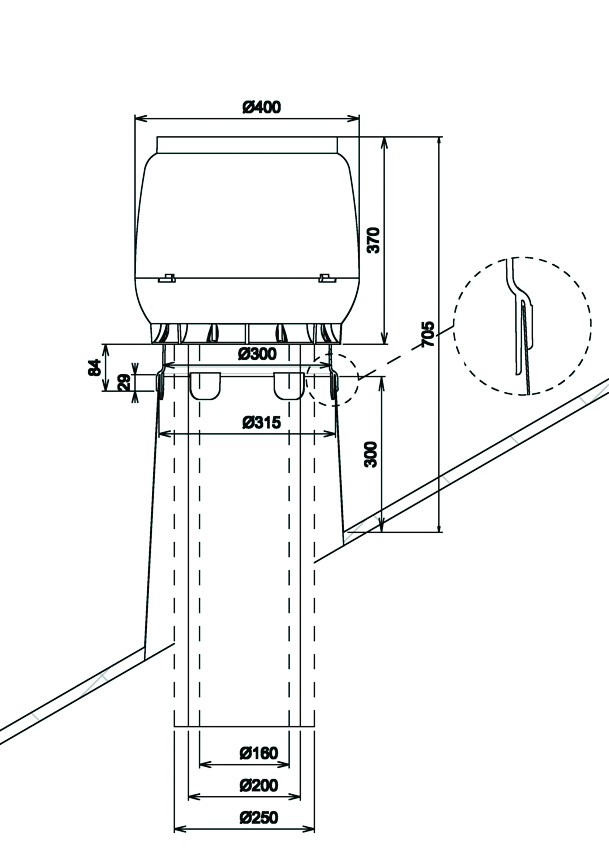

Description: Insulated exhaust ventilation XL pipe with a cowl. Inner pipe is made of galvanized steel and has a lip seal. . Installed in a sheet metal cone with opening Ø 315 mm, made by a sheet metal worker.

Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height 450 mm.

Contents: Exhaust ventilation pipe, cowl, screws.
Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number791222
LVI Code7814892
EAN Code6410457912223
Color Black | RR33 | RAL9005
Weight Gross: 8.711kg, Net: 7.302kg
Product number791224
LVI Code7814894
EAN Code6410457912247
Color Brown | RR32
Weight Gross: 8.711kg, Net: 7.302kg
Product number791226
LVI Code7814896
EAN Code6410457912261
Color Green | RR11
Weight Gross: 8.711kg, Net: 7.302kg
Product number791227
LVI Code7814897
EAN Code6410457912278
Color Grey | RR23 | RAL7015
Weight Gross: 8.711kg, Net: 7.302kg
Product number791228
LVI Code7814898
EAN Code6410457912285
Color Red | RR29 | RAL3009
Weight Gross: 8.711kg, Net: 7.302kg
Product number791229
LVI Code7814899
EAN Code6410457912292
Color Brick Red | RR750 | RAL8004
Weight Gross: 8.711kg, Net: 7.302kg
Product number791221
LVI Code7820449
EAN Code6410457912216
Color Light Grey
Weight Gross: 8.711kg, Net: 7.302kg
SKU: N/A Category:
Share product page
Print pdf
Duct size200 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws

Download CAD Models

Download DWG-file
79122x.dwg
MagiCAD file
Product categories: Discontinued
