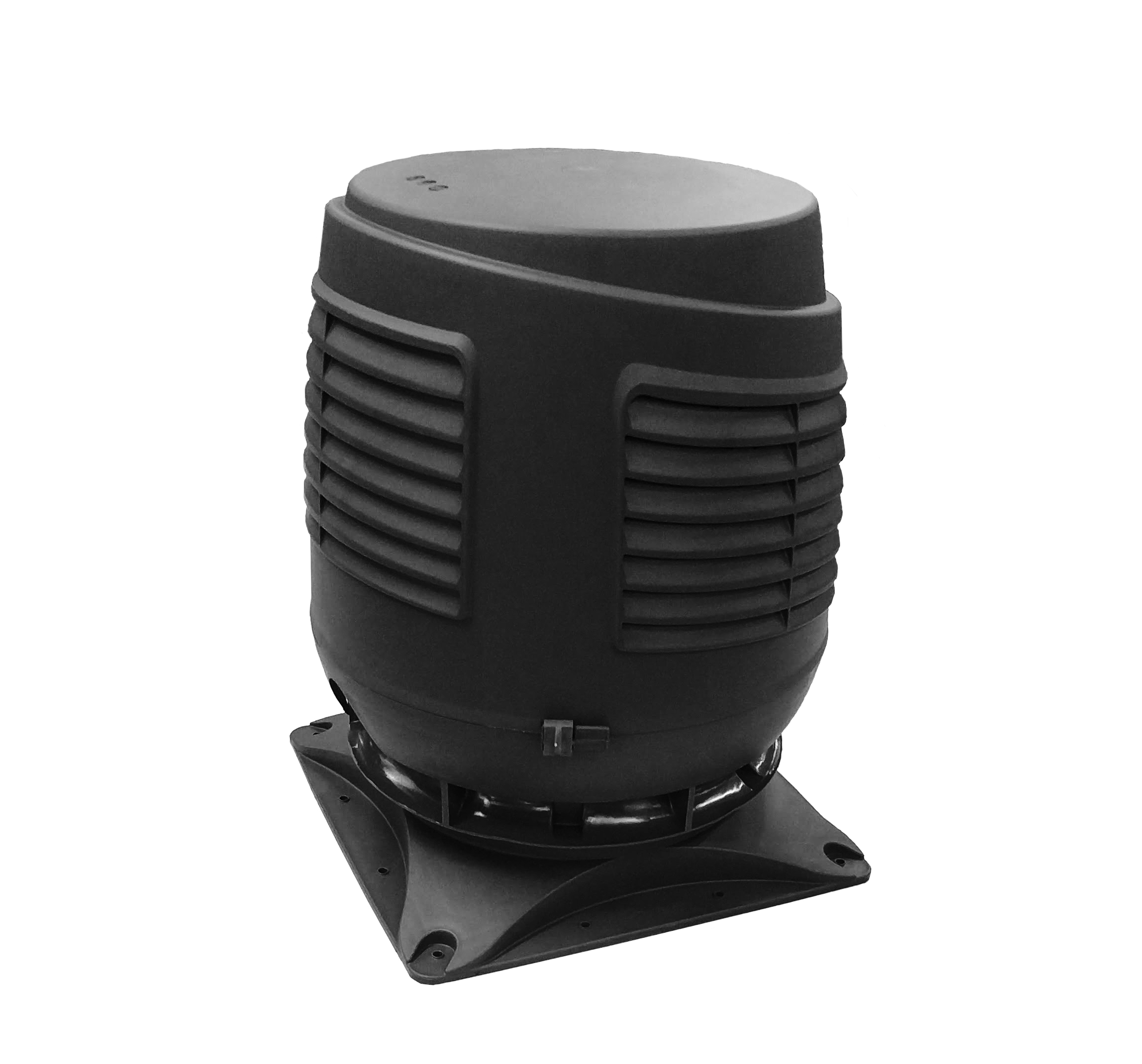

160S Intake vent

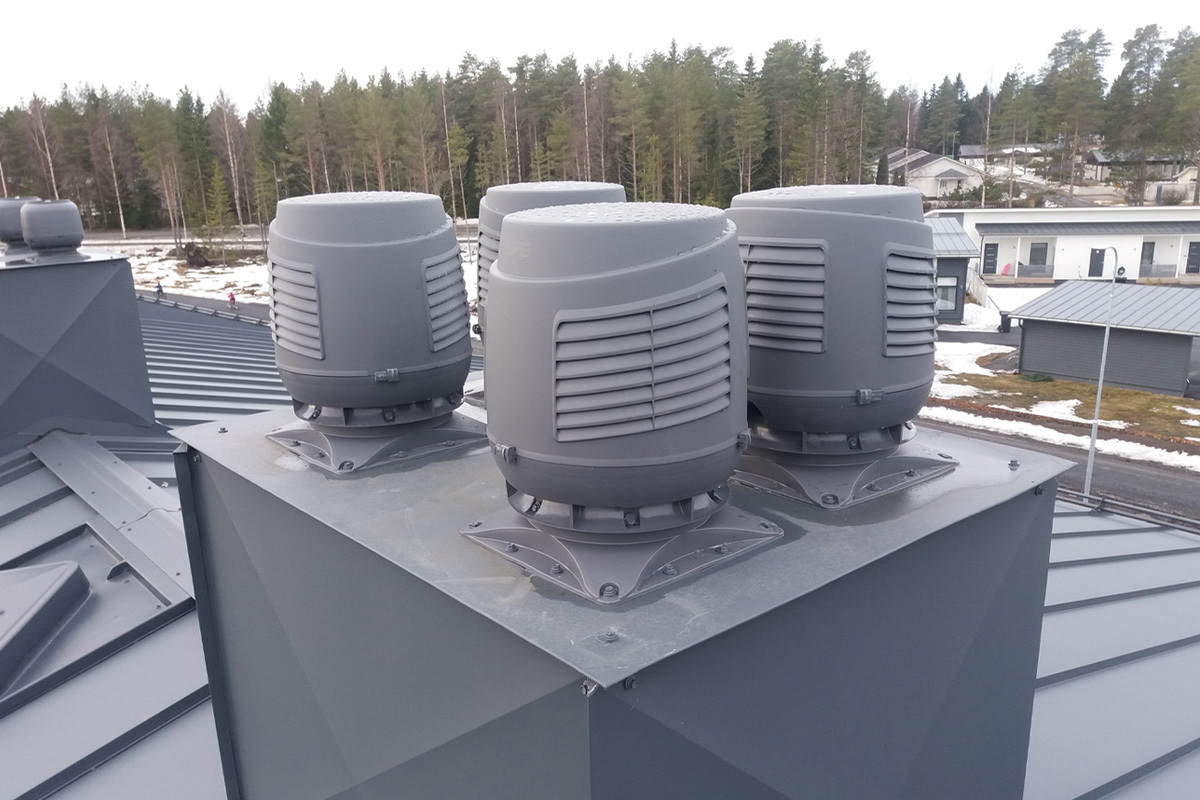

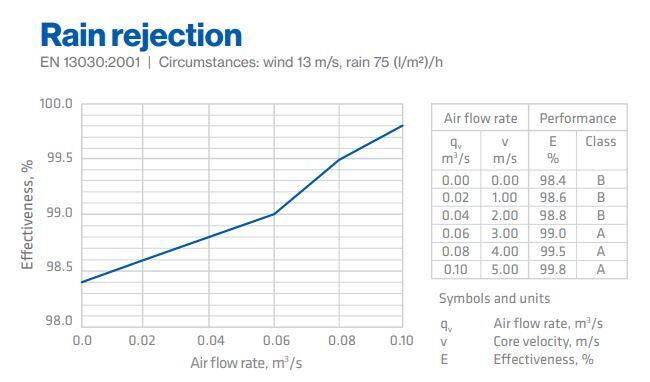

Description: Intake vent for buildings with a mechanical ventilation system, to be installed on the roof. Includes VILPE Intake Cowl with a unique structure which separates rain droplets from the outside air. The attention to detail in the design ensures minimal pressure loss.

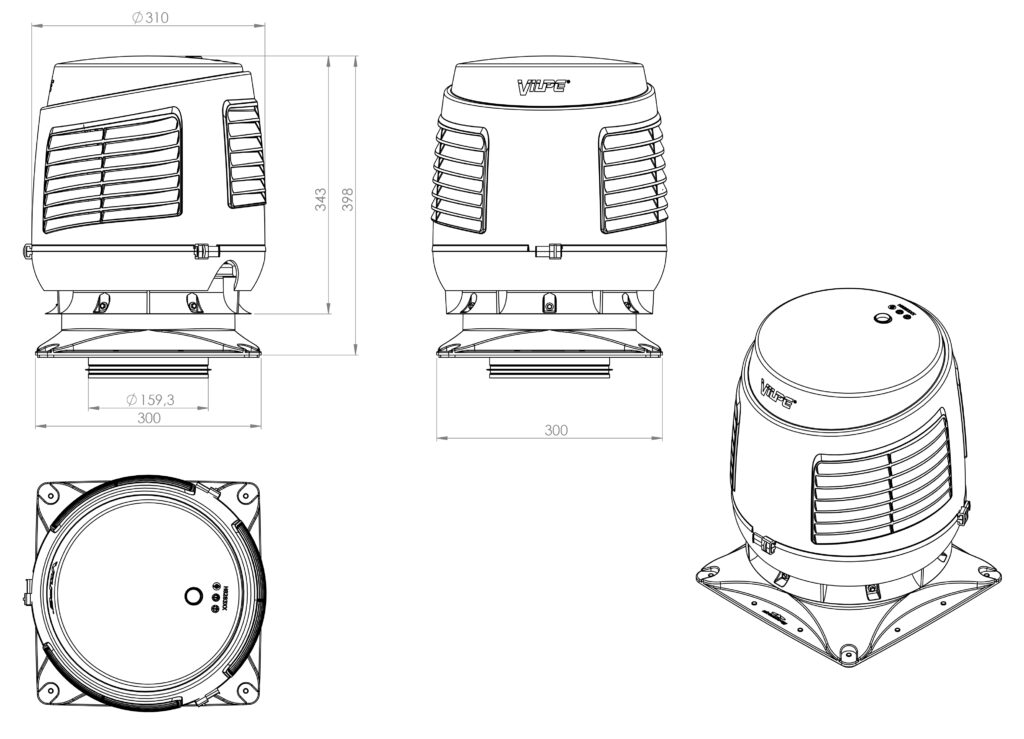

Dimensions: Duct size Ø 160 mm, external Ø 300 mm; installation set 300 x 300 mm, installation area must be at least the same size.

Contents: Ventilation pipe, intake cowl, installation set, screws.
Color
Black
Light Grey
Grey
Product number741892
LVI Code7820241
EAN Code6410457418923
Color Black | RR33 | RAL9005
Weight Gross: 2.827kg, Net: 2.336kg
Product number741891
LVI Code7820240
EAN Code6410457418916
Color Light Grey | RAL7040
Weight Gross: 2.774kg, Net: 2.283kg
Product number741897
LVI Code7820244
EAN Code6410457418978
Color Grey | RR23 | RAL7024
Weight Gross: 2.774kg, Net: 2.283kg
