High-quality pass-throughs for all climates

Pass-throughs are required when installing VILPE roof fans and exhaust ventilation pipes. They prevent water from flowing into openings made in the underlay and the roofing material, thereby ensuring that it remains watertight. Our product selection includes high-quality and easy-to-install pass-throughs for all kinds of roofing materials, colours and pitches. Pass-throughs should be installed with VILPE Underlay 2K Seals to ensure they are 100 % waterproof. The pass-throughs are designed with ease of installation in mind, so these products are suitable for DIY installation conducted by one person without the need for specialist knowledge. Find the right product for your needs below
Read the FAQ

Show all products

PVC Collar for Tall Felt Pass-Through

Used to facilitate easy installation of the Tall Felt Pass-Through onto a PVC roof

Cone-shaped collar ensures a waterproof finish

EPDM Collar for Tall Felt Pass-Through

Used to facilitate easy installation of the Tall Felt Pass-Through onto an EPDM roof

Cone-shaped collar ensures a waterproof finish

XL Underlay Ring

For fastening underlay material to roof battens, raising the underlay and ensuring that water is kept out of roof structures and insulation material

Also included in all VILPE XL pass-through sets

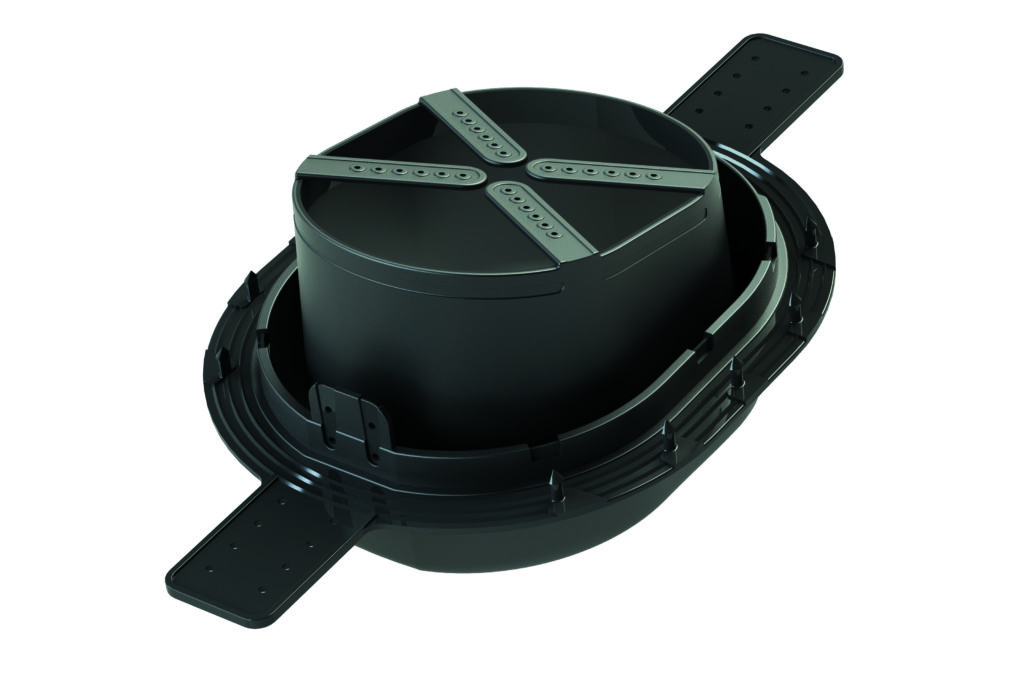

Underlay 2K Seal

For fastening underlay material to roof battens, extending to the upper edge of the pass-through and ensuring a watertight seal between the underlay and the roofing material

Also included in all VILPE^® 2K pass-through sets

Patented two-component (2K) underlay seal which is just as easy to install as the older VILPE® Underlay Ring

Profiled Steel Pass-Through

For round-profile sheet metal roofs (with min. 350 mm patterned tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110-160 mm pipes

Decra Pass-Through

For Decra roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110-160 mm pipes

Nera Pass-Through

For Ruukki´s Finnera or Finnera Plus roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110-160 mm pipes

CLASSIC PASS-THROUGH LOW PITCH

Plain standing seam roofing with roof pitches of 5-27°.

Thick rubber seal on the bottom of the flange.

Tile Pass-Through

For most common concrete tile roofs (replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Unitile Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Vittinge Pass-Through

For vittinge clay tile roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Evo Pass-Through

For plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Classic Vino Pass-Through

For plain standing seam roofs or felt roofs (if retrofitted); can be installed on roofs with pitches between 1:5 (11.5 degrees) and 57 degrees

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Hyygge Pass-Through

For Ruukki´s Hyygge or similar sheet metal roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Aalto Pass-Through

For sheet metal roofs such as Ruukki’s Adamante, or other equivalent round-proﬁle, tile-patterned roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Steel Pass-Through

For low-profile sheet metal roofs; not suitable for high-angular profiles

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 110, 125 or 160 mm pipes

Underlay Ring

For fastening underlay material to roof battens, raising the underlay and ensuring that water is kept out of roof structures and insulation material

Also included in all VILPE^® pass-through sets

For a more advanced solution, try the VILPE^® Underlay 2K Seal instead
