STEEL CLICK PASS-THROUGH

STEEL CLICK PASS-THROUGH

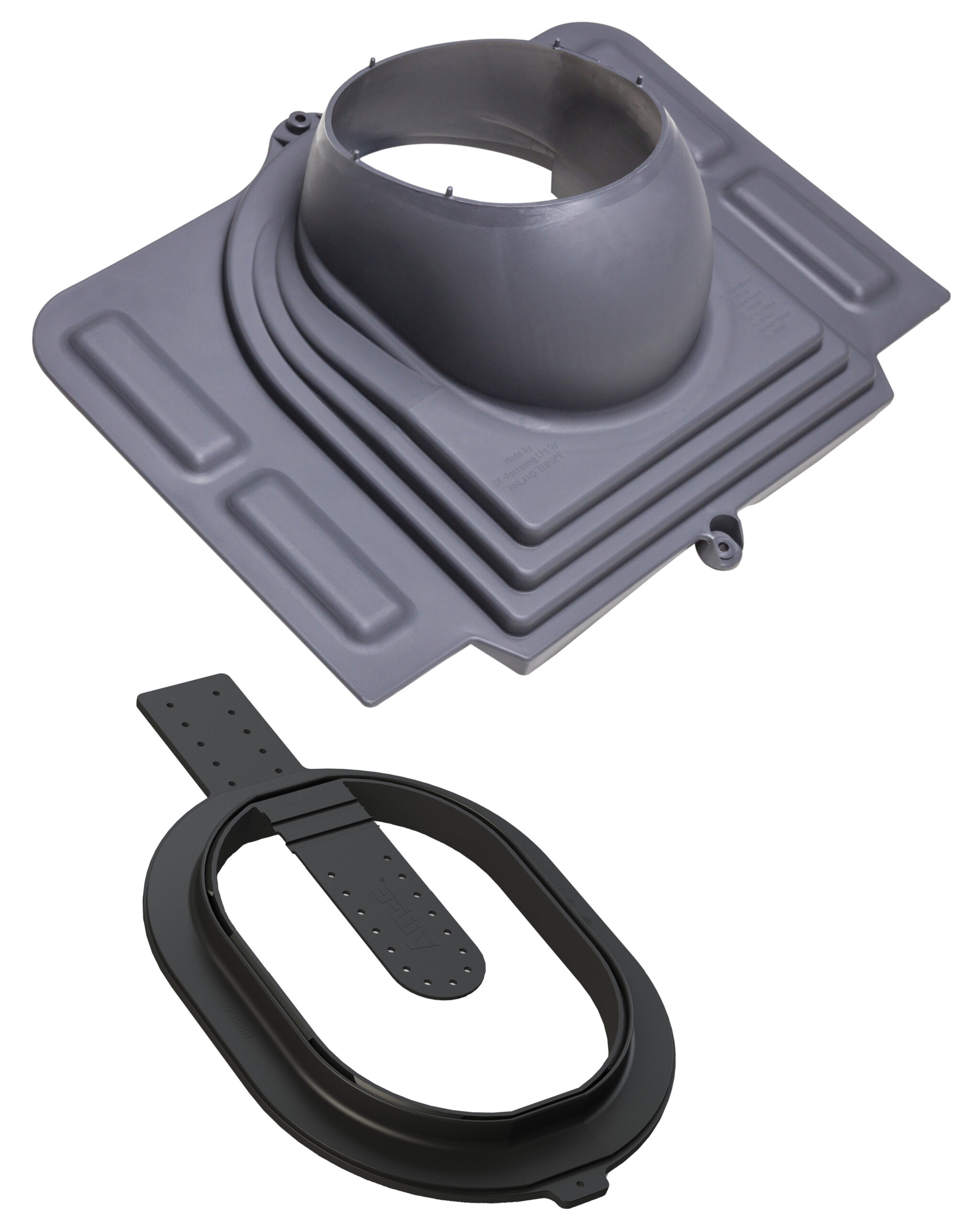

Description: Low profiled metal sheet roofing. Waterproof thanks to the rubber cone with the mouldable aluminium flange. Used with VILPE P-series ⌀ 110–160 mm roof fans and ventilation pipes.

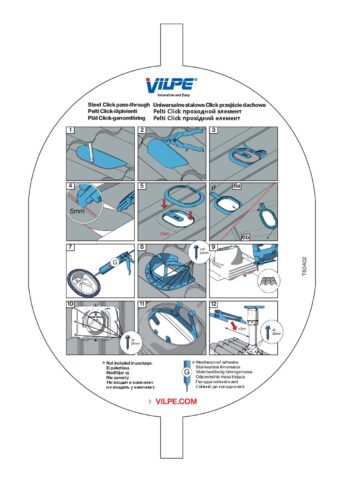

Contents: Pass-through, Click underlay seal, sealing ring, screws, template/installation instructions.

Color
Light Grey
Black
Brown
Red
Grey
Brick Red
Anthracite
Product number360021
LVI Code7820643
EAN Code6410457659395
Color Light Grey | RAL7040
Weight Gross: 1.51kg, Net: 1.51kg
Product number360022
LVI Code7820649
EAN Code6410457659401
Color Black | RR33 | RAL9005
Weight Gross: 1.916kg, Net: 1.641kg
Product number360024
LVI Code7820642
EAN Code6410457659418
Color Brown | RR32 | RAL8019
Weight Gross: 1.916kg, Net: 1.641kg
Product number360028
LVI Code7820646
EAN Code6410457659449
Color Red | RR29 | RAL3009
Weight Gross: 1.916kg, Net: 1.641kg
Product number360027
LVI Code7820645
EAN Code6410457659432
Color Grey | RR23 | RAL7024
Weight Gross: 1.916kg, Net: 1.641kg
Product number360029
LVI Code7820647
EAN Code6410457659456
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.916kg, Net: 1.641kg
Product number36002D
LVI Code7820648
EAN Code6410457659463
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 1.51kg, Net: 1.51kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-45°
Pipe Ø12511.5°-40°
Pipe Ø16011.5°-27°
EPD LinkEPD-portal
Roof MaterialSteel

Download CAD Models

Download DWG-file
36002x-7355x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-throughs, Pass-throughs for steel roofing
