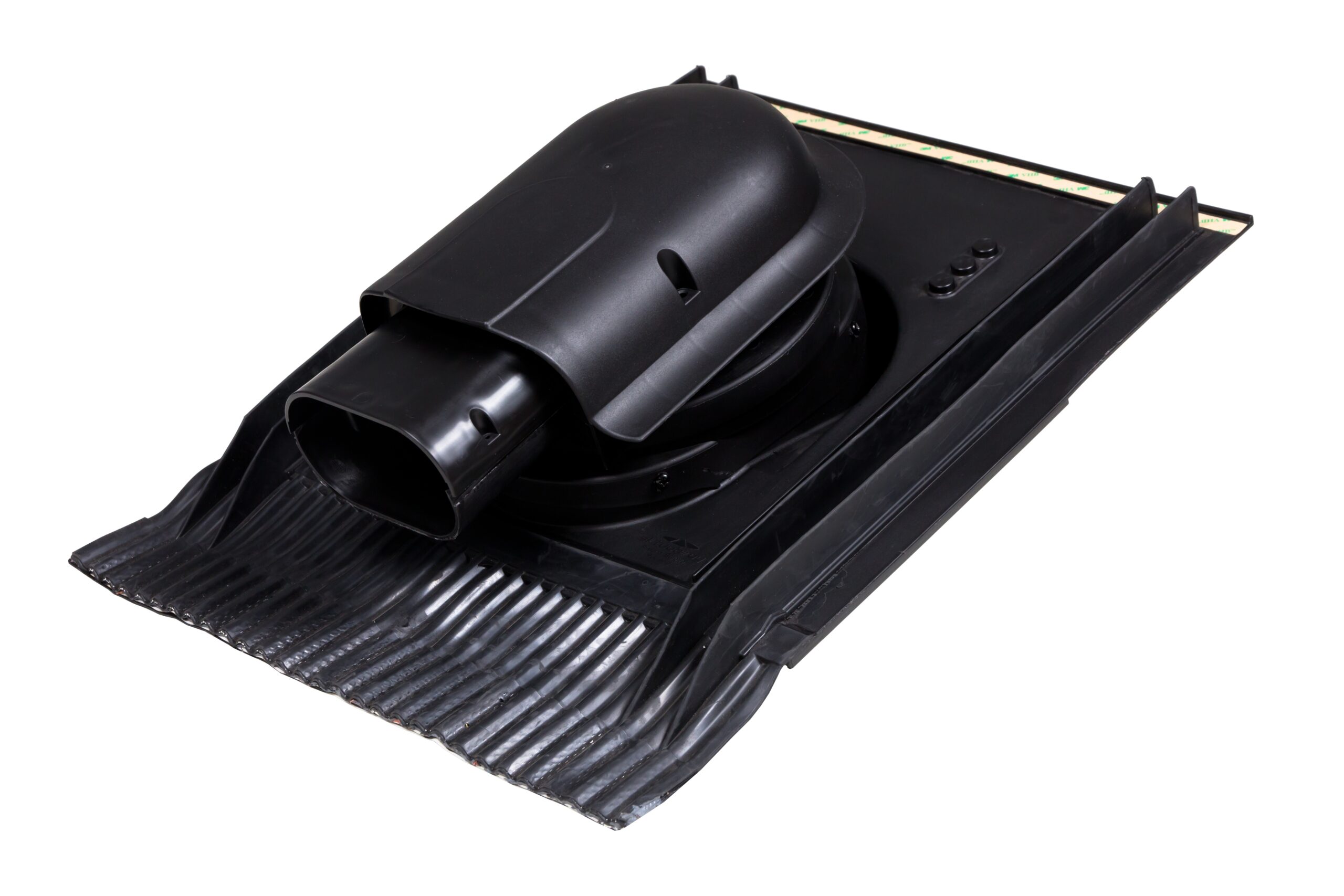

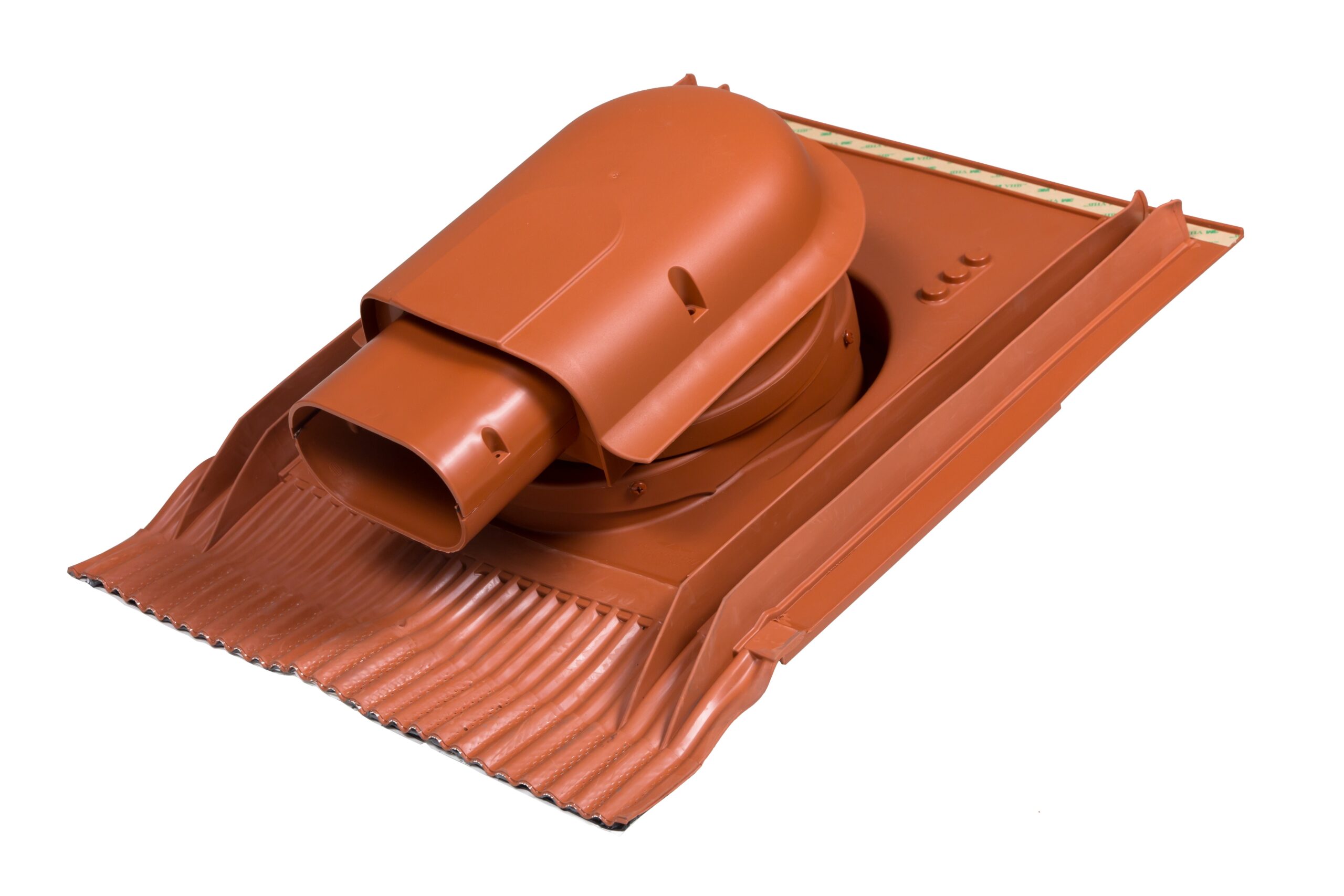

The VILPE Solar pass-through is suitable for passing through various small pipes, e.g. solar collector pipes. The Solar pass-through range includes a solution for all roofing materials. Unlike other VILPE pass-throughs, Solar passthroughs include a pre-attached coupling ring. Furthermore, the pass-through set includes a flange, a cover, a shrinking tube and the screws needed for installation.
The cover of a Solar pass-through is detachable, which facilitates service procedures of the pipes. The flange and the cover can be turned sideways 90 degrees to the direction of the pipes. This facilitates the installation and ensures a safe passing through. The size of the pipe hole in the front of the Solar pass-through is 100mm x 60mm.
The Universal tile pass-through set is designed to fit all tile roofs: clay, ceramic and concrete tiles, both one- and two-waved and also plain tiles. The length of the pass-through is 532 mm and width 400 mm. The pass-through is made of two different plastic raw materials: hard PP and soft, rubber-like thermoplastic plastic.
Seal for the upper side, a bracket to the bottom, 2*80 and 2*38 mm screws and the underlay seal are included.
