SOLAR STEEL CLICK PASS-THROUGH

SOLAR STEEL CLICK PASS-THROUGH

Description: Low profiled metal sheet roofing. Waterproof thanks to the rubber cone with the mouldable aluminium flange. Used for passing pipes and cables from solar panels and solar collectors through the roof covering. Rubber sealing for VILPE Solar pass-throughs, made of tough and flexible technical rubber material. Fully waterproof, and used to lead Ø 4–50 mm wires and cables through a roof. Attaches to a Solar pass-through with a weatherproof fastener.
Contents: Pass-through, Click underlay seal, flange, cover, cable sealing, screws, installation instructions/templates for the underlay seal and the pass-through.
Color
Black
Brown
Product number360252
LVI Code7820711
EAN Code6410457660506
Color Black | RR33 | RAL9005
Weight Gross: 2.76kg, Net: 2.267kg
Product number360254
LVI Code7820715
EAN Code6410457660513
Color Brown | RR32 | RAL8019
Weight Gross: 2.76kg, Net: 2.267kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-45°
Pipe Ø12511.5°-40°
Pipe Ø16011.5°-27°
Roof MaterialSteel

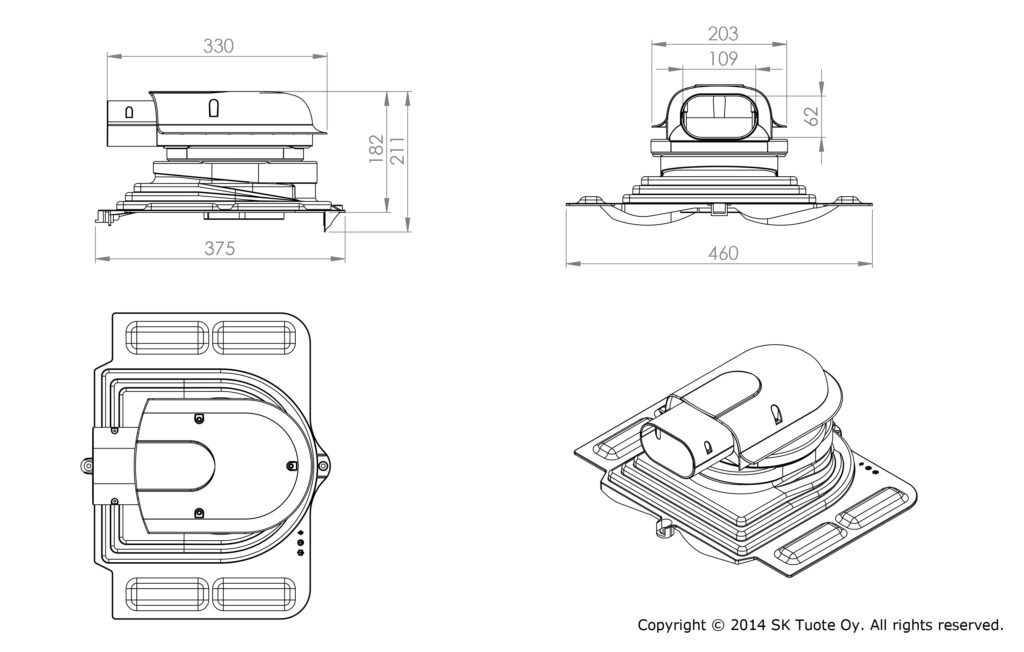

Download CAD Models

Download DWG-file
7561x.dwg

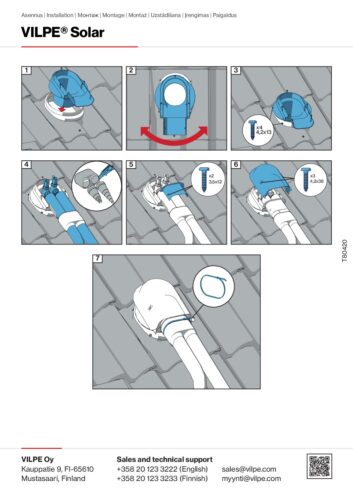

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Solar for steel roofing, Solar pass-throughs
