PROFILED STEEL CLICK PASS-THROUGH

PROFILED STEEL CLICK PASS-THROUGH

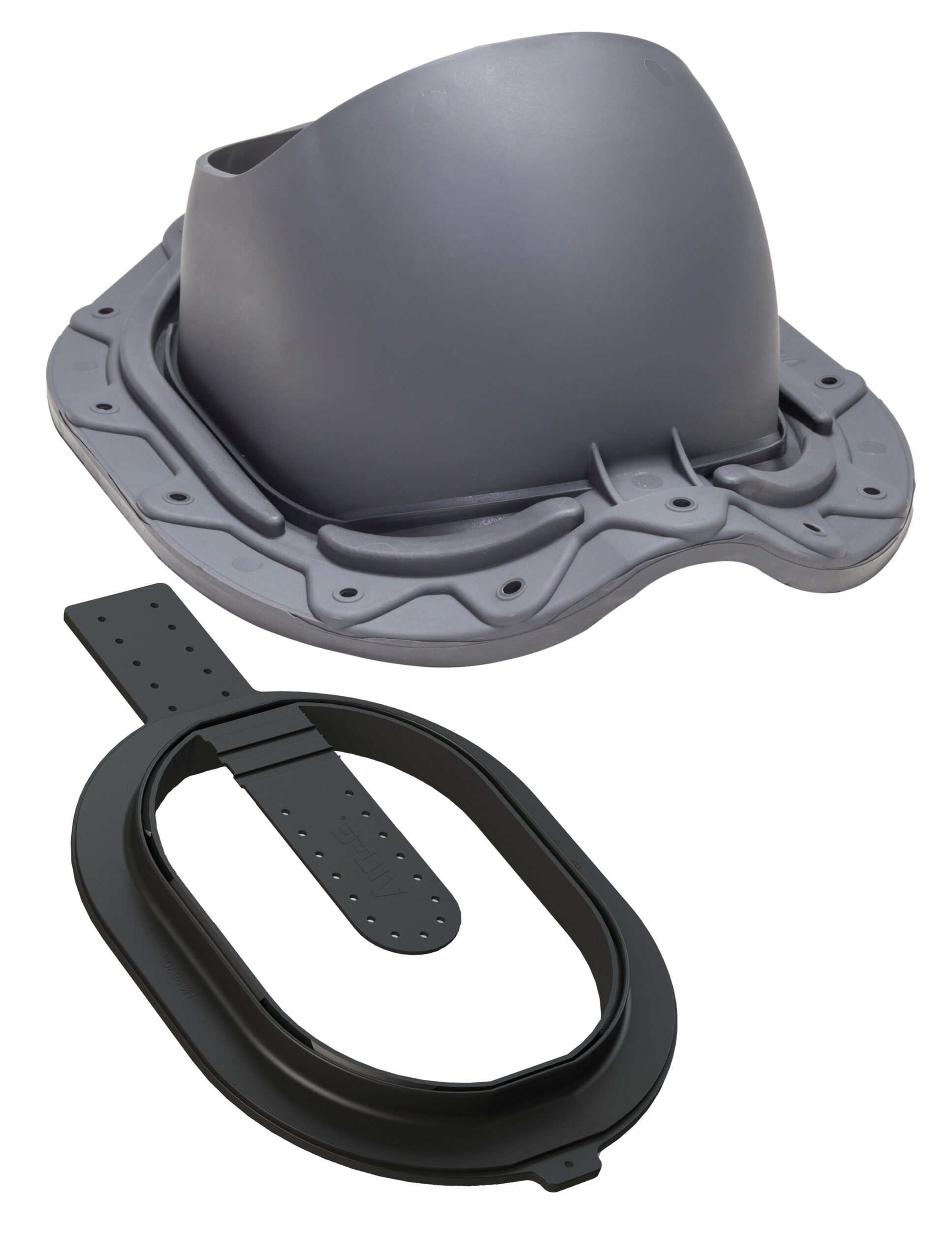

Description: All round profiled metal sheet roofing types (tilepatterned). Minimum length of tile pattern 350 mm. Mouldable and fully waterproof thanks to the rubber seal on the bottom surface. Used with VILPE P-series ⌀ 110–160 mm roof fans and ventilation pipes.
Contents: Pass-through, Click underlay seal, screws, installation instructions/template.
Color
Black
Brown
Green
Grey
Red
Brick Red
Chocolate Brown
Anthracite
Product number360142
LVI Code7820700
EAN Code6410457660117
Color Black | RR33 | RAL9005
Weight Gross: 1.066kg, Net: 0.898kg
Product number360144
LVI Code7820701
EAN Code6410457660124
Color Brown | RR32 | RAL8019
Weight Gross: 1.066kg, Net: 0.898kg
Product number360146
LVI Code7820702
EAN Code6410457660131
Color Green | RR11 | RAL6020
Weight Gross: 1.027kg, Net: 0.859kg
Product number360147
LVI Code7820703
EAN Code6410457660148
Color Grey | RR23 | RAL7024
Weight Gross: 1.027kg, Net: 0.859kg
Product number360148
LVI Code7820704
EAN Code6410457660155
Color Red | RR29 | RAL3009
Weight Gross: 1.027kg, Net: 0.859kg
Product number360149
LVI Code7820705
EAN Code6410457660162
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.026kg, Net: 0.859kg
Product number36014B
LVI Code7820707
EAN Code6410457660179
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 1.59kg, Net: 1.59kg
Product number36014D
LVI Code7820706
EAN Code6410457660186
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 1.59kg, Net: 1.59kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-50°
Pipe Ø12511.5°-45°
Pipe Ø16011.5°-40°
Roof MaterialSteel

Download CAD Models

Download DWG-file
36014x-7517x.dwg
