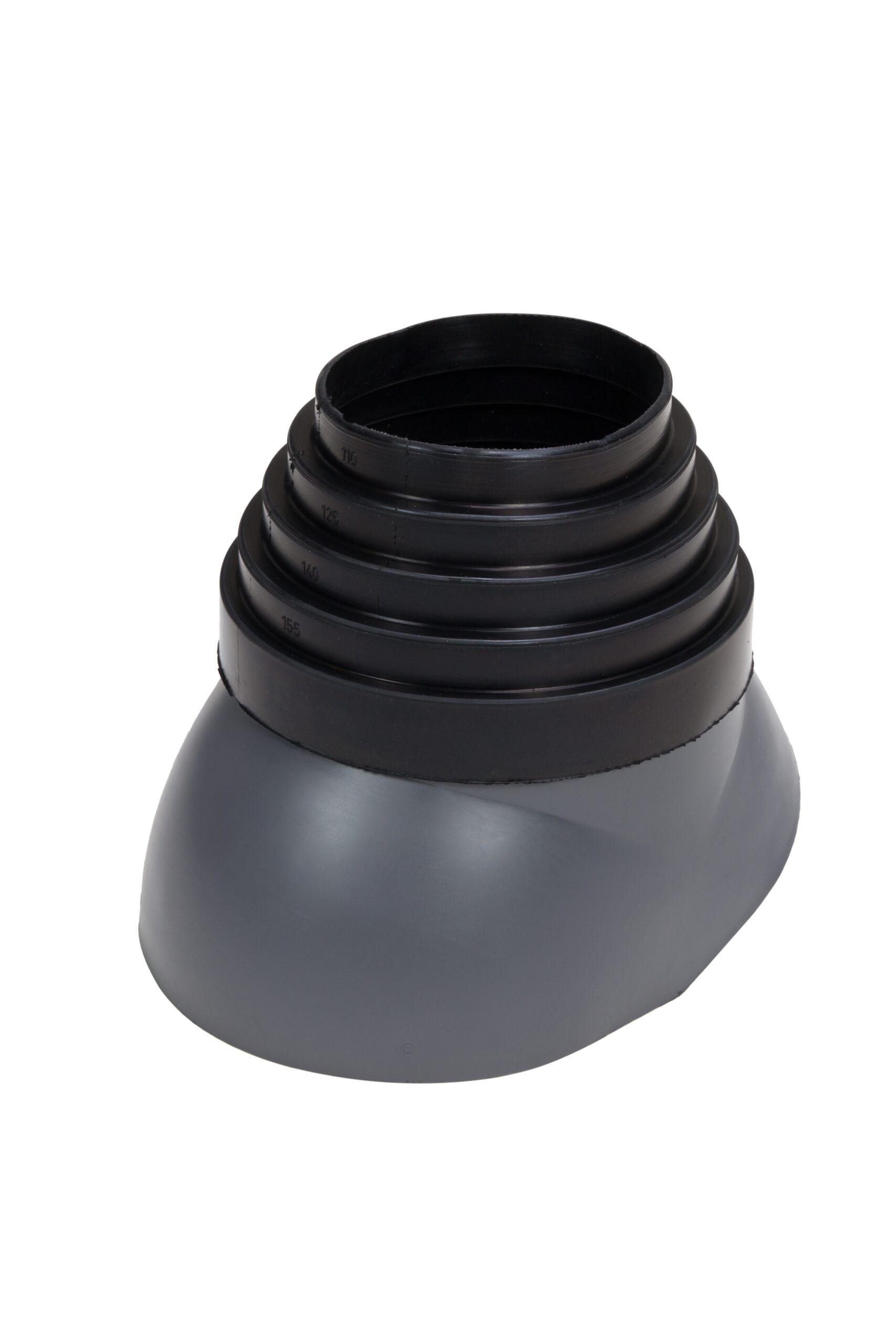

Pipe Sealing 110–155

Pass-through seal for a Ø 110-155 mm pipe, mast, cable or roof bollard installed on a roof. In addition to the stepped EPDM rubber sealing, the set contains a plastic collar and a clamp. The plastic collar should be installed onto a VILPE pass-through set which has been selected according to the roofing material. The flexible rubber cone permits some movement of the pipe, and ensures a watertight seal between the pass-through and the roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas.

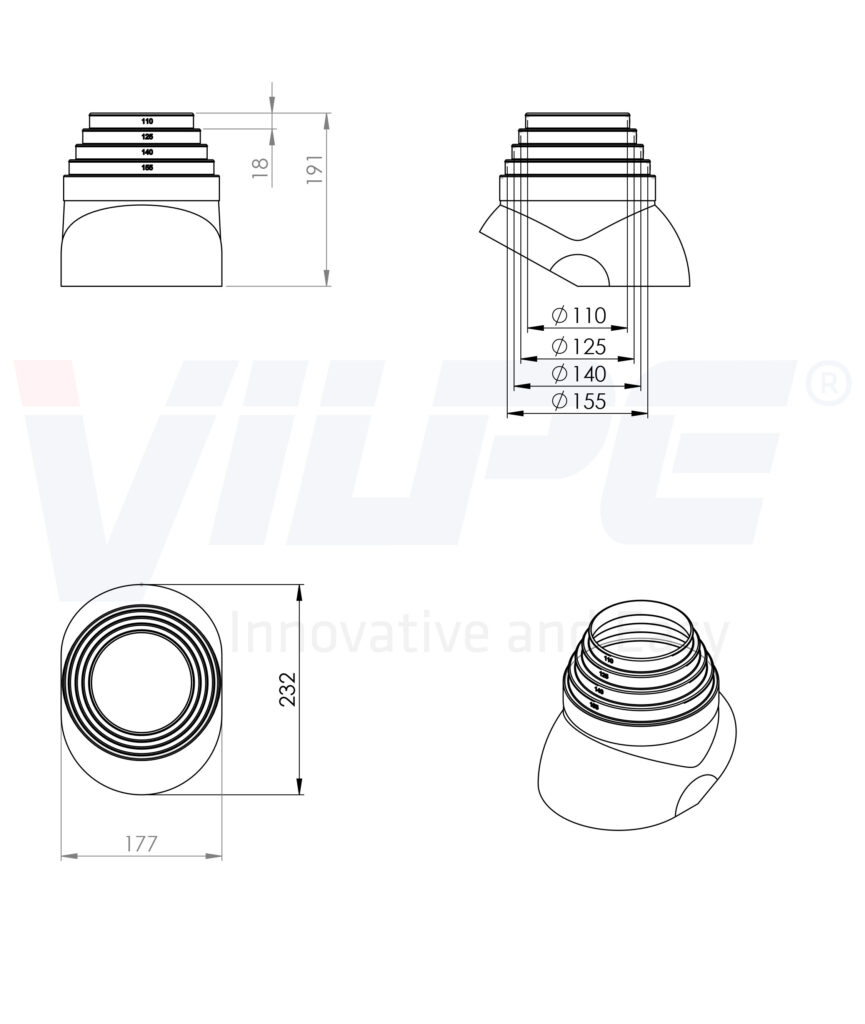

Dimensions: For duct sizes Ø 110/125/140/155 mm.

Contents: Pipe sealing, plastic collar, clamp.

Color
Black
Brown
Green
Grey
Red
Brick Red
Product number741002
LVI Code7814352
EAN Code6410457410026
Color Black | RR33 | RAL9005
Weight Gross: 0.719kg, Net: 0.459kg
Product number741004
LVI Code7814354
EAN Code6410457410040
Color Brown | RR32
Weight Gross: 0.719kg, Net: 0.459kg
Product number741006
LVI Code7814356
EAN Code6410457410064
Color Green | RR11
Weight Gross: 0.719kg, Net: 0.459kg
Product number741007
LVI Code7814357
EAN Code6410457410071
Color Grey | RR23 | RAL7015
Weight Gross: 0.719kg, Net: 0.459kg
Product number741008
LVI Code7814358
EAN Code6410457410088
Color Red | RR29 | RAL3009
Weight Gross: 0.719kg, Net: 0.459kg
Product number741009
LVI Code7814359
EAN Code6410457410095
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.719kg, Net: 0.459kg
