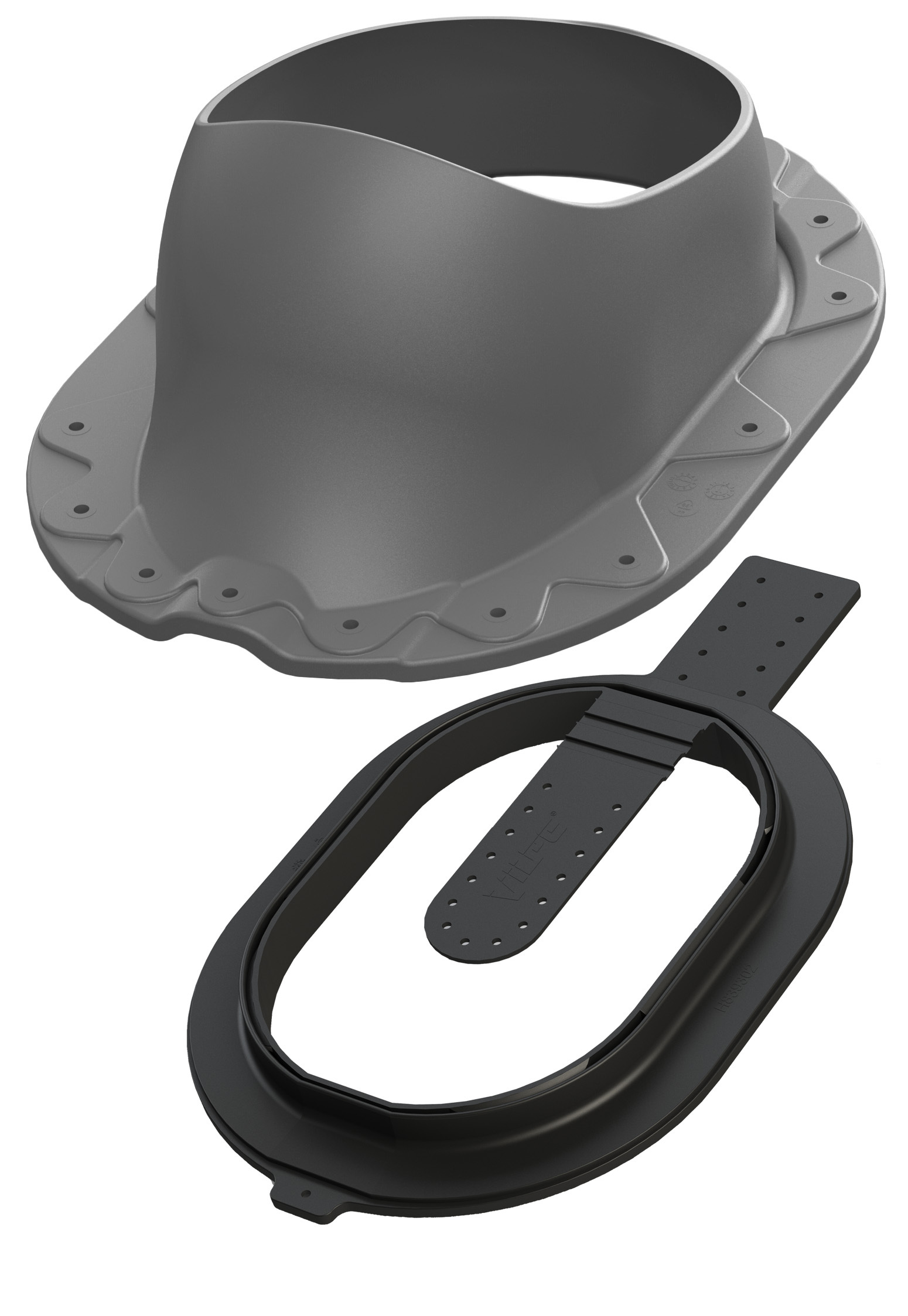

Nova Click pass-through

Nova Click pass-through

Description: For Ruukki’s Frigge or similar sheet metal roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange.

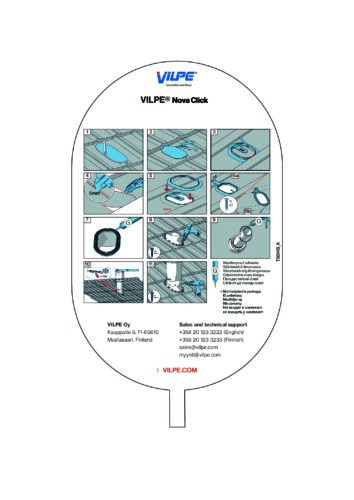

Contents: Pass-through, Click underlay seal, screws, installation instructions.
Color
Anthracite
Product number36009D
LVI Code7820724
EAN Code6410457725595
Color Anthracite | RR2H3 | RAL7016
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11014°-45°
Pipe Ø12514°-45°
Pipe Ø16014°-45°

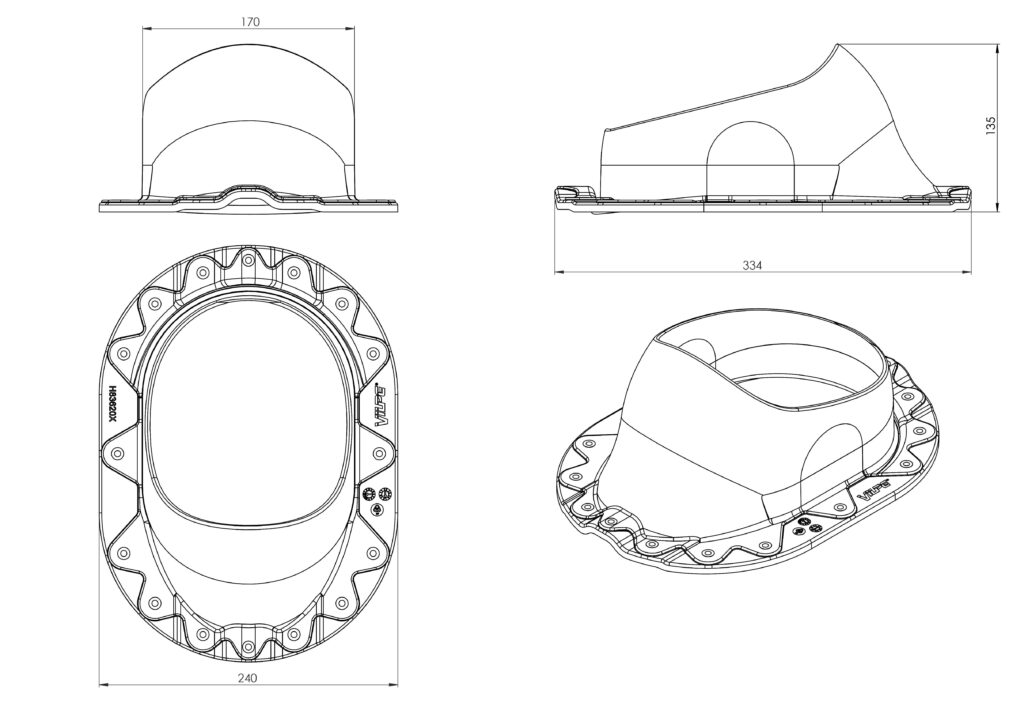

Download CAD Models

Download DWG-file
740842.dwg

Materials & Installation
