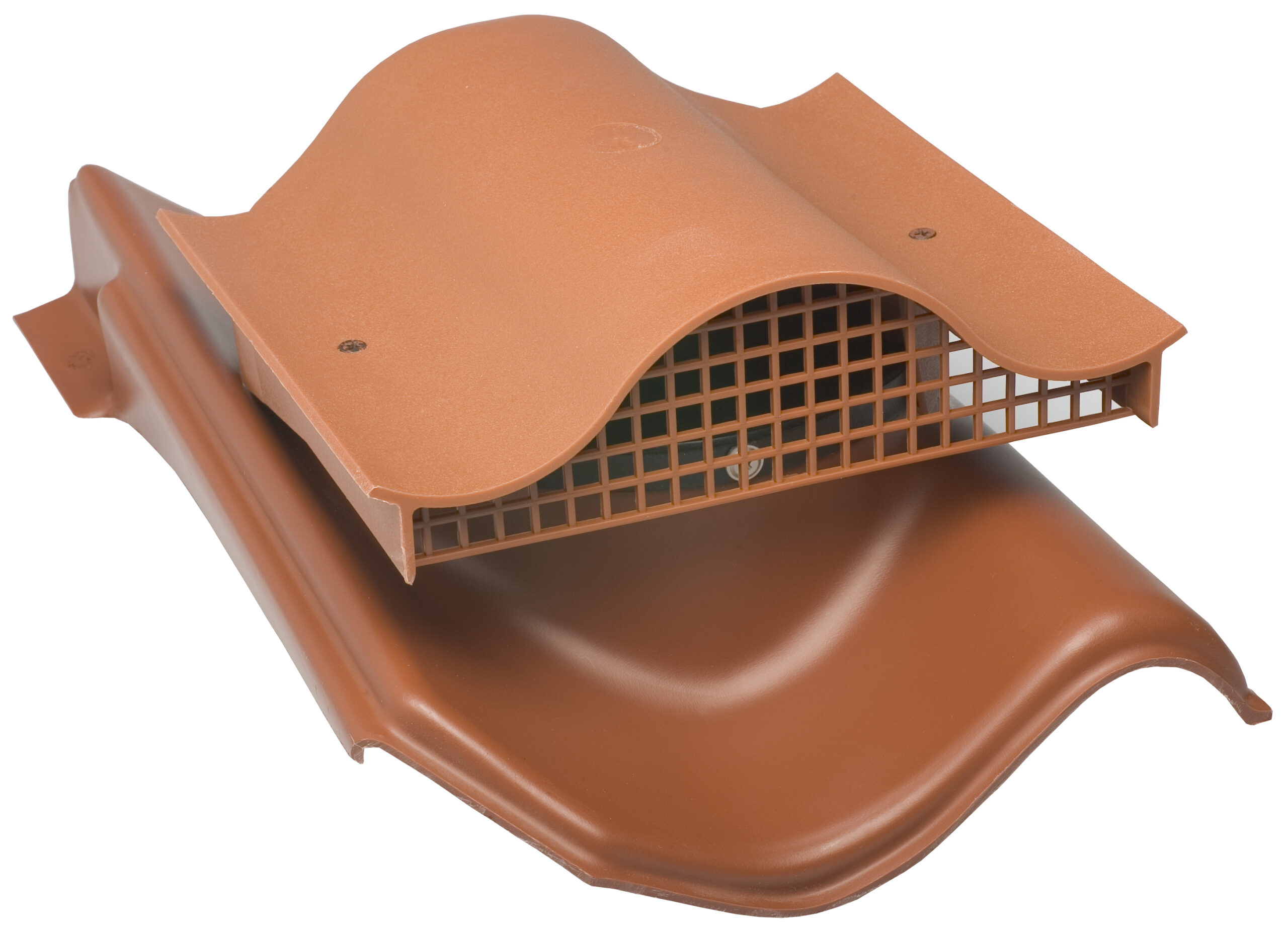

Description: Roofing structure and roof space ventilation. Also suitable for drainage ventilation. Vittinge clay tile roofing.
Contents: KTV ventilator, underlay ring, screws.
The KTV roof vent can be used for ventilating roof structures and attic spaces as well as for ventilating sewer pipes. The KTV roof vent can be selected from 10 different models according to the roofing material. The selection principles are the same as for pass-through sets. A KTV roof vent contains a valve, pass-through, an underlay ring and fixing screws. It can also include an Ø 110/125 adapter, if needed. The set is also available with a flex pipe if the KTV roof vent is to be used for ventilating a sewer pipe.
The Vittinge pass-through sets are designed for the pass-through of a clay tile roof. Vittinge pass-through sets are available for 1- and 2-wave clay tiles. The Vittinge 1-wave pass-through set is suitable for the E13 clay tile, the dimensions of which are 420 x 235 mm. The Vittinge 2-wave pass-through set is suitable for the T11 clay tile, the dimensions of which are 420 x 280 mm.
An underlay ring and screws is included in the pass-through sets.
