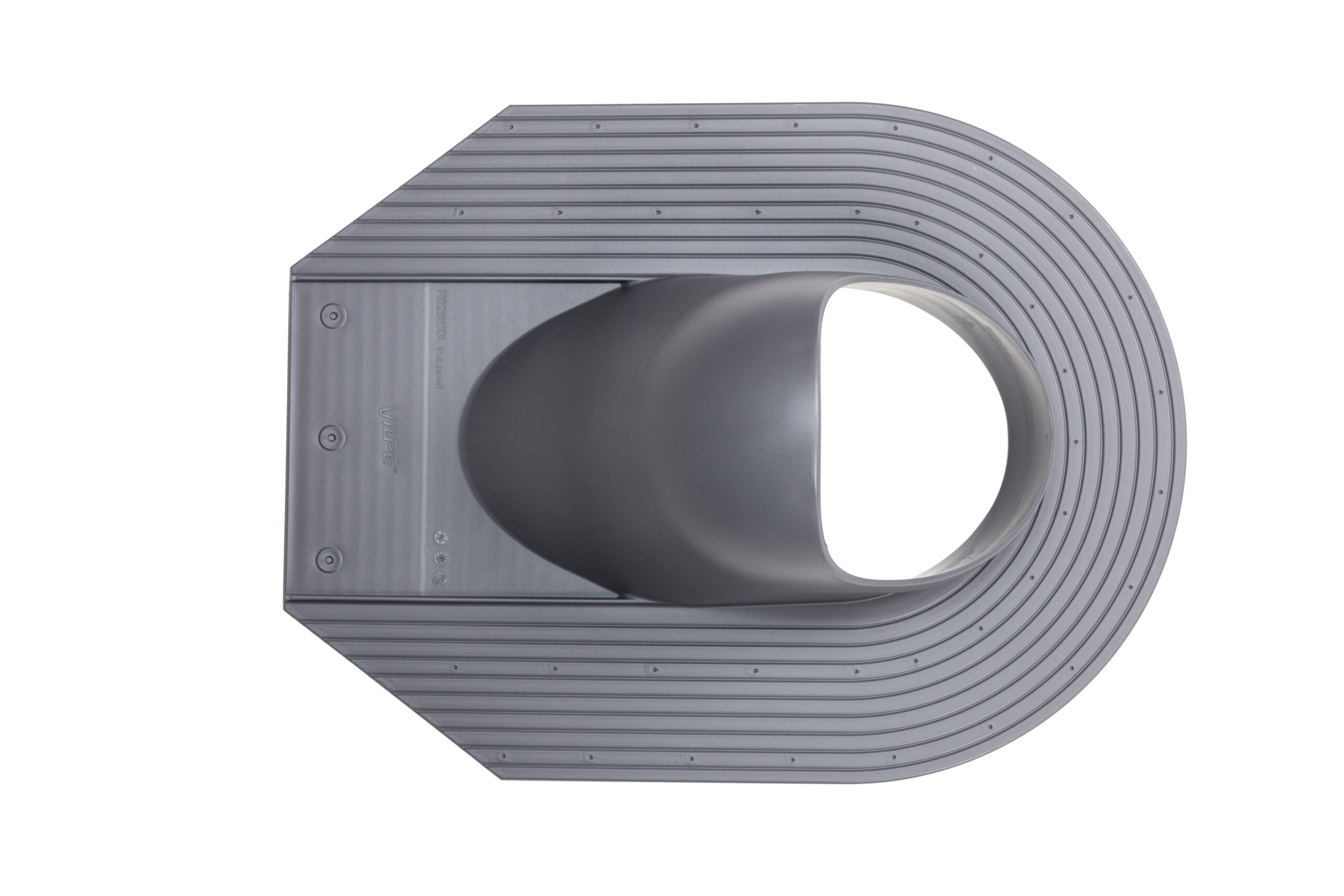

HS PASS-THROUGH

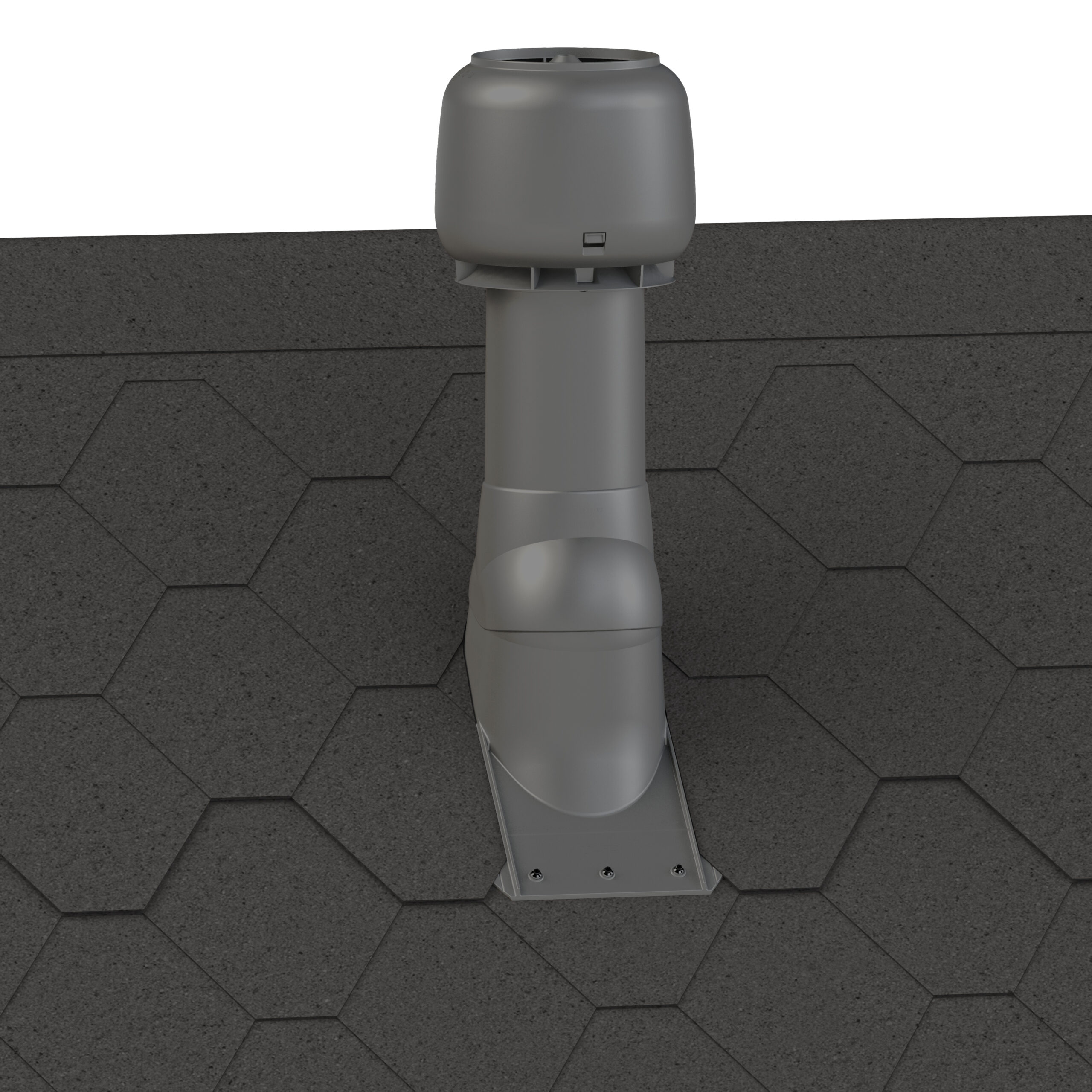

Description: For all slate, shingle and felt roofs. Installing the VILPE HS Slate Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay ring, screws, installation instructions.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number741062
LVI Code7820106
EAN Code6410457410620

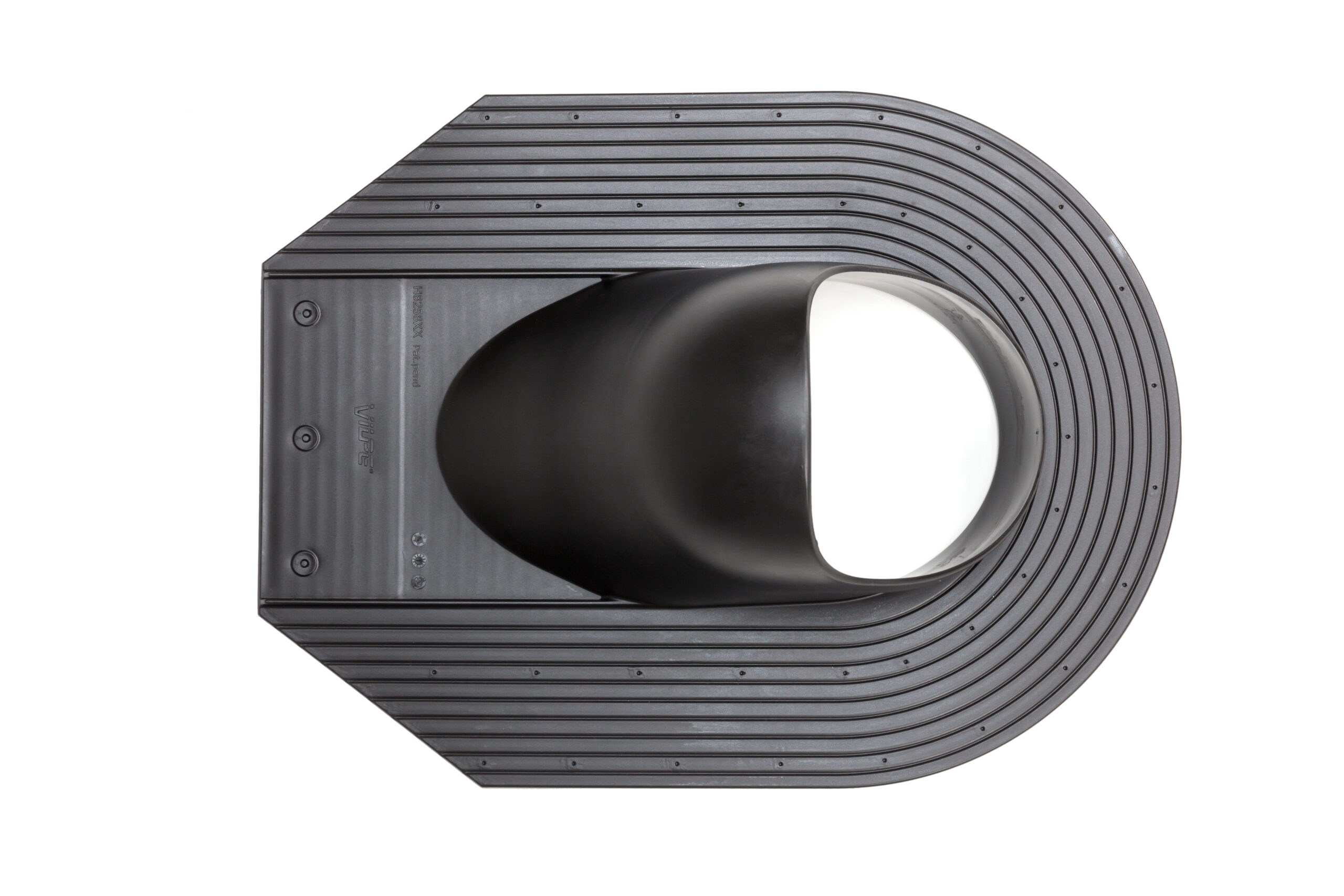

Color Black | RR33 | RAL9005
Weight Gross: 1.209kg, Net: 0.721kg
Product number741064
LVI Code7820107
EAN Code6410457410644

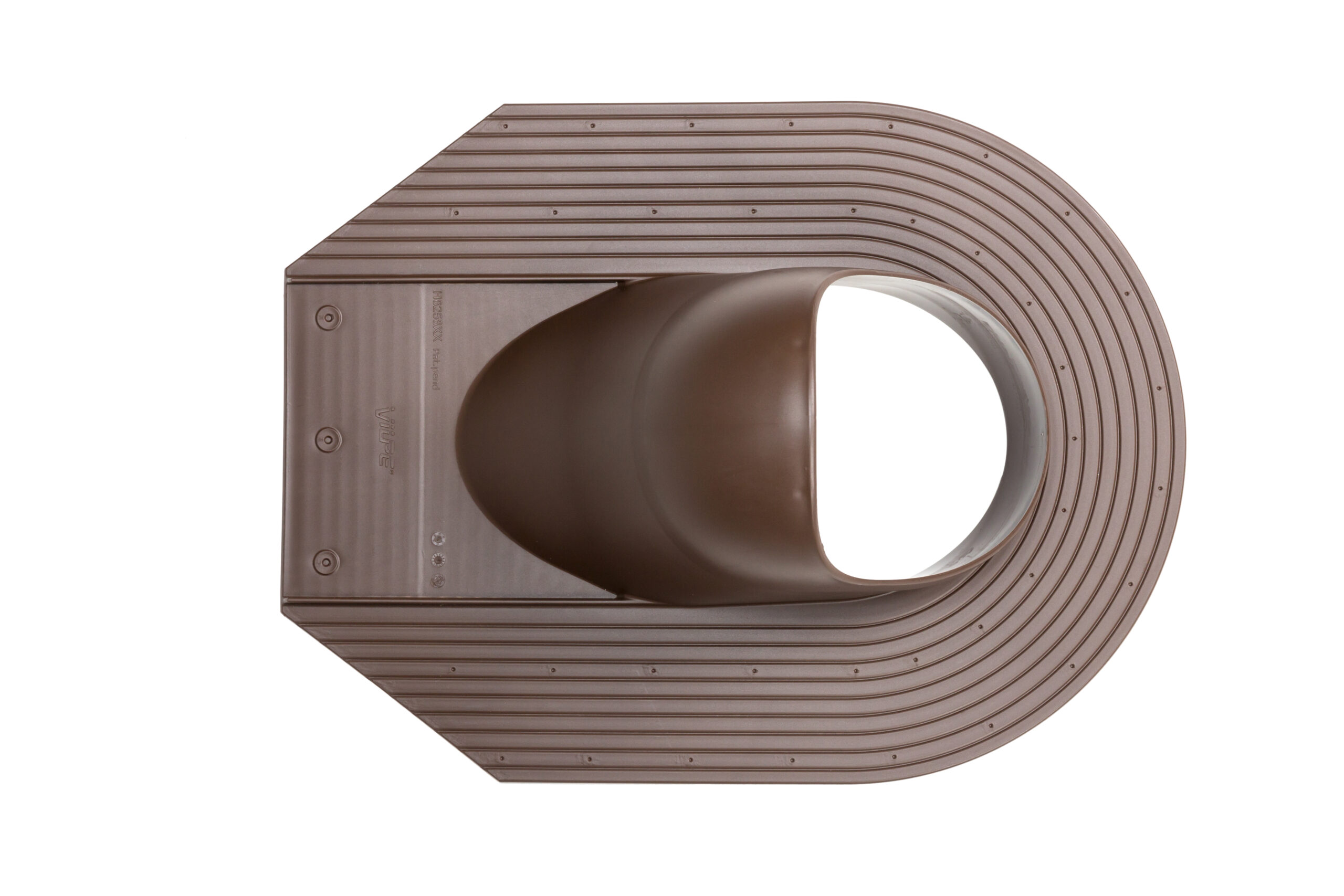

Color Brown | RR32 | RAL8019
Weight Gross: 1.208kg, Net: 0.721kg
Product number741066
LVI Code7820108
EAN Code6410457410668

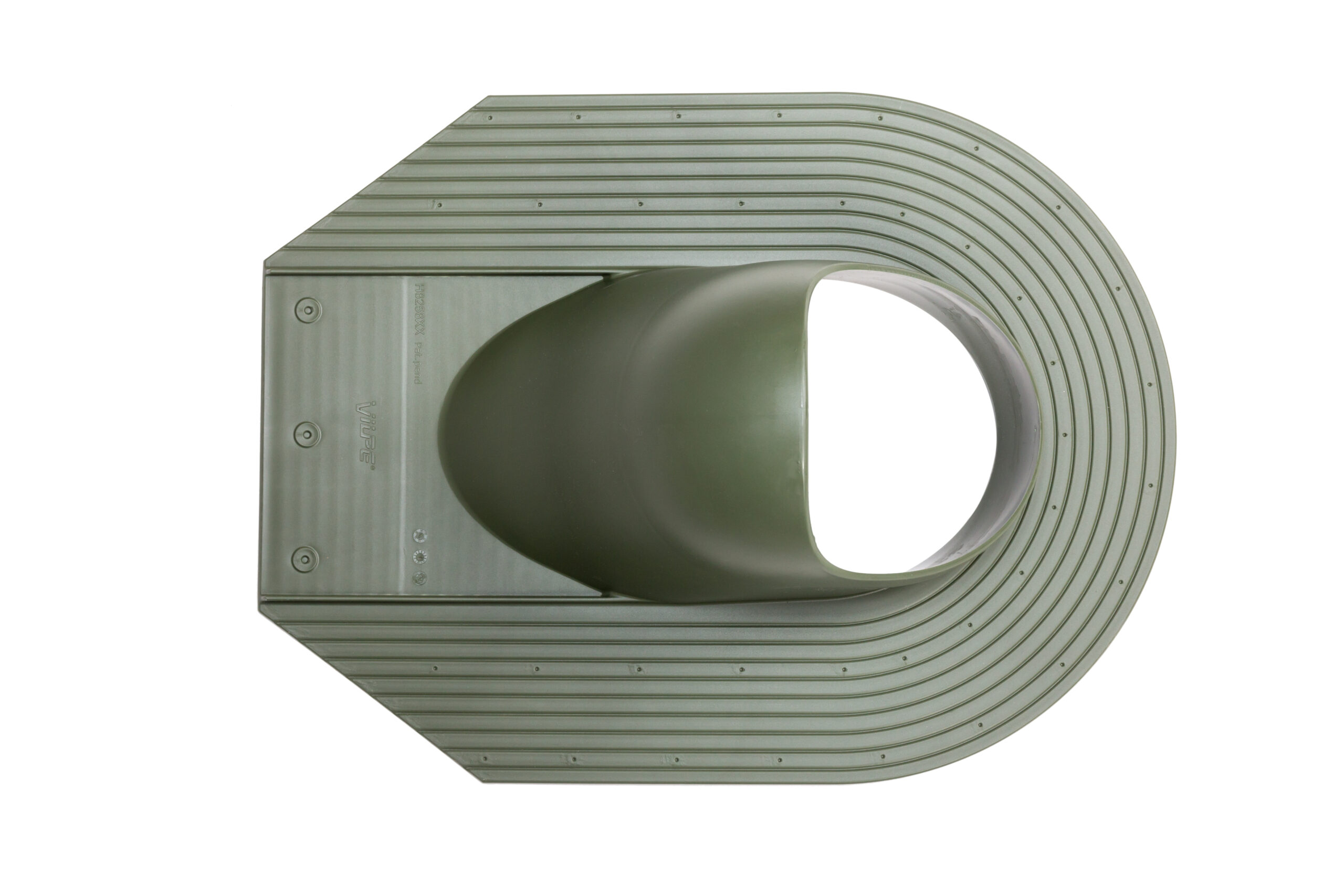

Color Green | RR11
Weight Gross: 1.199kg, Net: 0.73kg
Product number741067
LVI Code7820109
EAN Code6410457410675
Color Grey | RR23 | RAL7024
Weight Gross: 1.208kg, Net: 0.721kg
Product number741068
LVI Code7820110
EAN Code6410457410682

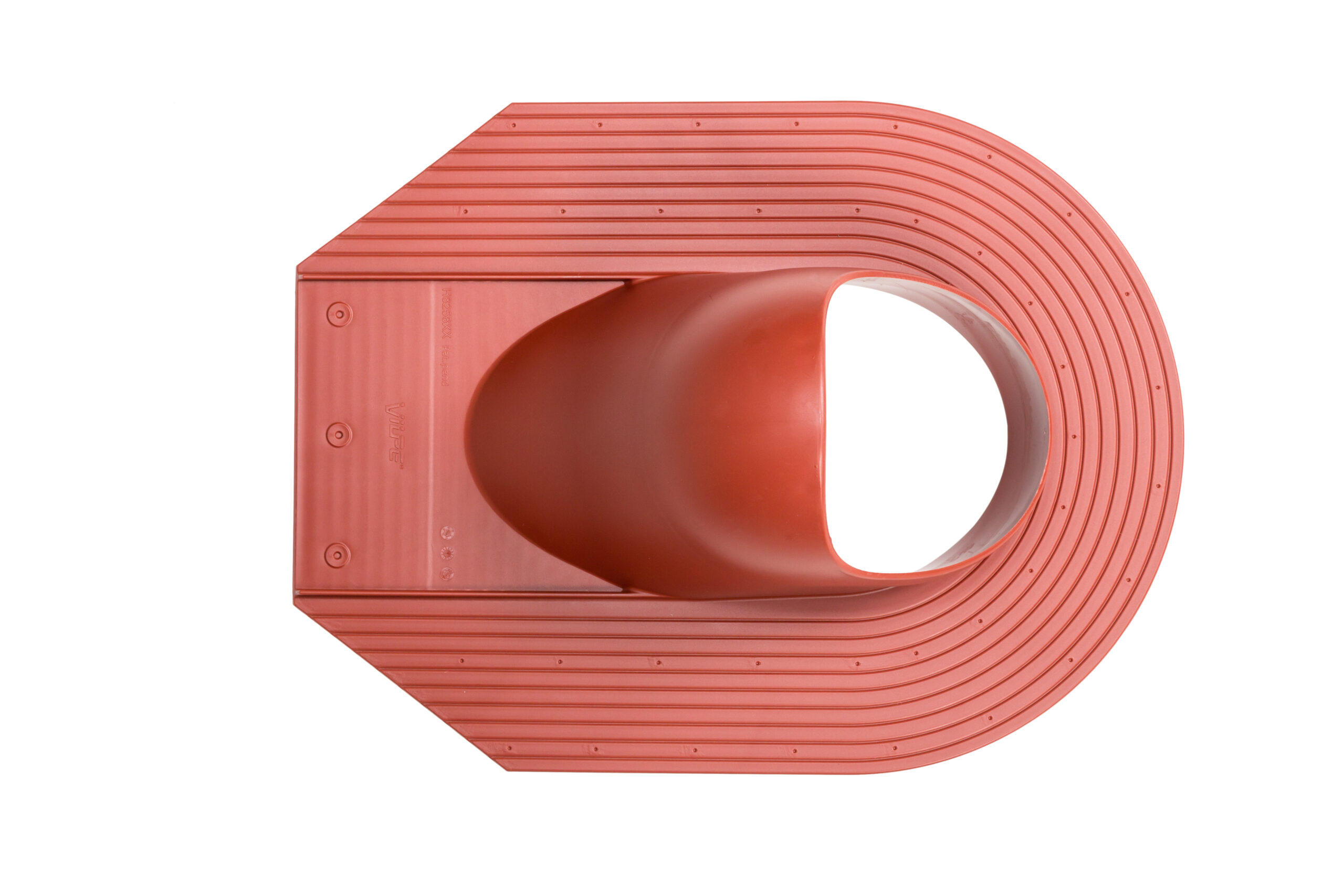

Color Red | RR29 | RAL3009
Weight Gross: 1.208kg, Net: 0.721kg
Product number741069
LVI Code7820111
EAN Code6410457410699

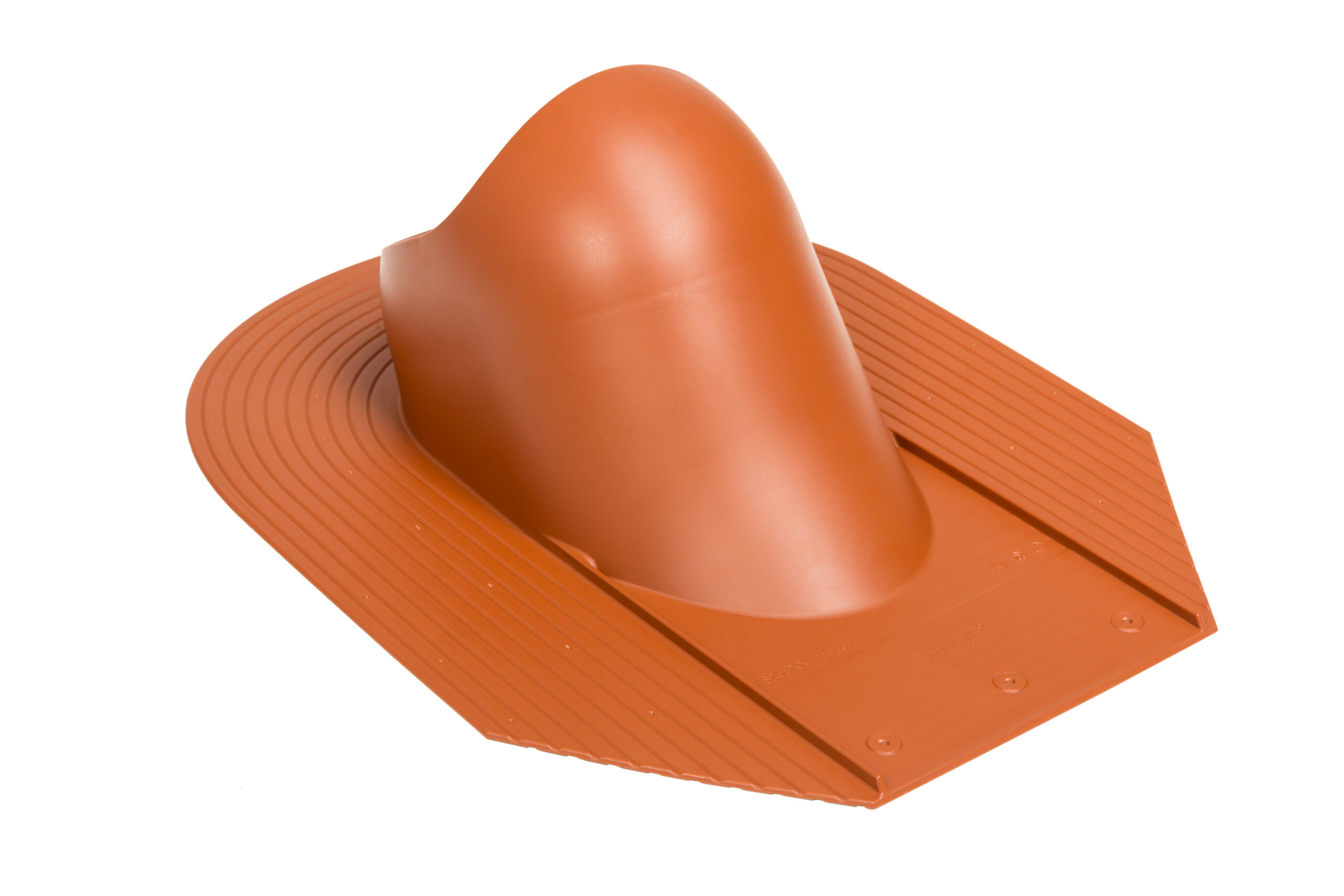

Color Brick Red | RR750 | RAL8004
Weight Gross: 1.208kg, Net: 0.721kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-59°
Pipe Ø12511.5°-57°
Pipe Ø16011.5°-52°

Download CAD Models

MagiCAD file

Materials & Installation
