ECo 200P/500 FLOW Roof Fan

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Includes a galvanized steel inner pipe with a lip seal. VILPE ECo control panels and VILPE pass-throughs suitable for a range of roofing types and material are available separately.

Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Grey
Red
Brick Red
Anthracite
Light Grey
Chocolate Brown
Product number350302
EAN Code6410453503029
Color Black | RR33 | RAL9005
Weight Gross: 9.426kg, Net: 8.532kg
Product number350304
EAN Code6410453503043
Color Brown | RR32 | RAL8019
Weight Gross: 9.426kg, Net: 8.532kg
Product number350307
EAN Code6410453503074
Color Grey | RR23 | RAL7024
Weight Gross: 9.426kg, Net: 8.532kg
Product number350308
EAN Code6410453503081
Color Red | RR29 | RAL3009
Weight Gross: 9.426kg, Net: 8.532kg
Product number350309
EAN Code6410453503098
Color Brick Red | RR750 | RAL8004
Weight Gross: 9.426kg, Net: 8.532kg
Product number35030D
EAN Code6410457658602
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 9.426kg, Net: 8.532kg
Product number350301
EAN Code6410457658909
Color Light Grey | RAL7040
Weight Gross: 9.426kg, Net: 8.532kg
Product number35030B
EAN Code6410457658954
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 9.426kg, Net: 8.532kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size200 Ø
Voltage230 V, 50 Hz
Current1.40 A
Rotation speed (rpm)2510 rpm
Power170 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 200 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Download CAD Models

Download DWG-file
3503xx.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

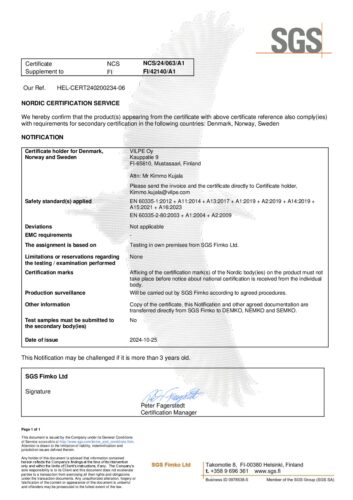

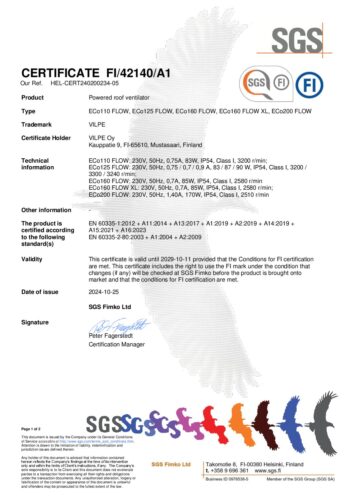

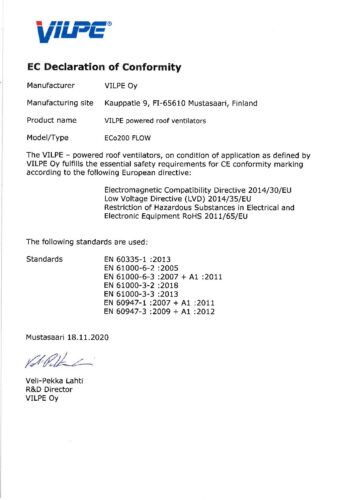

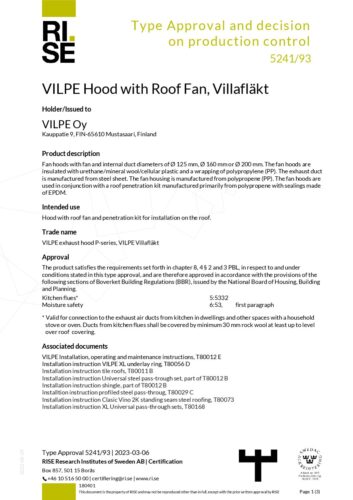

Certificates

Product categories: P-Series roof fans, Roof fans
