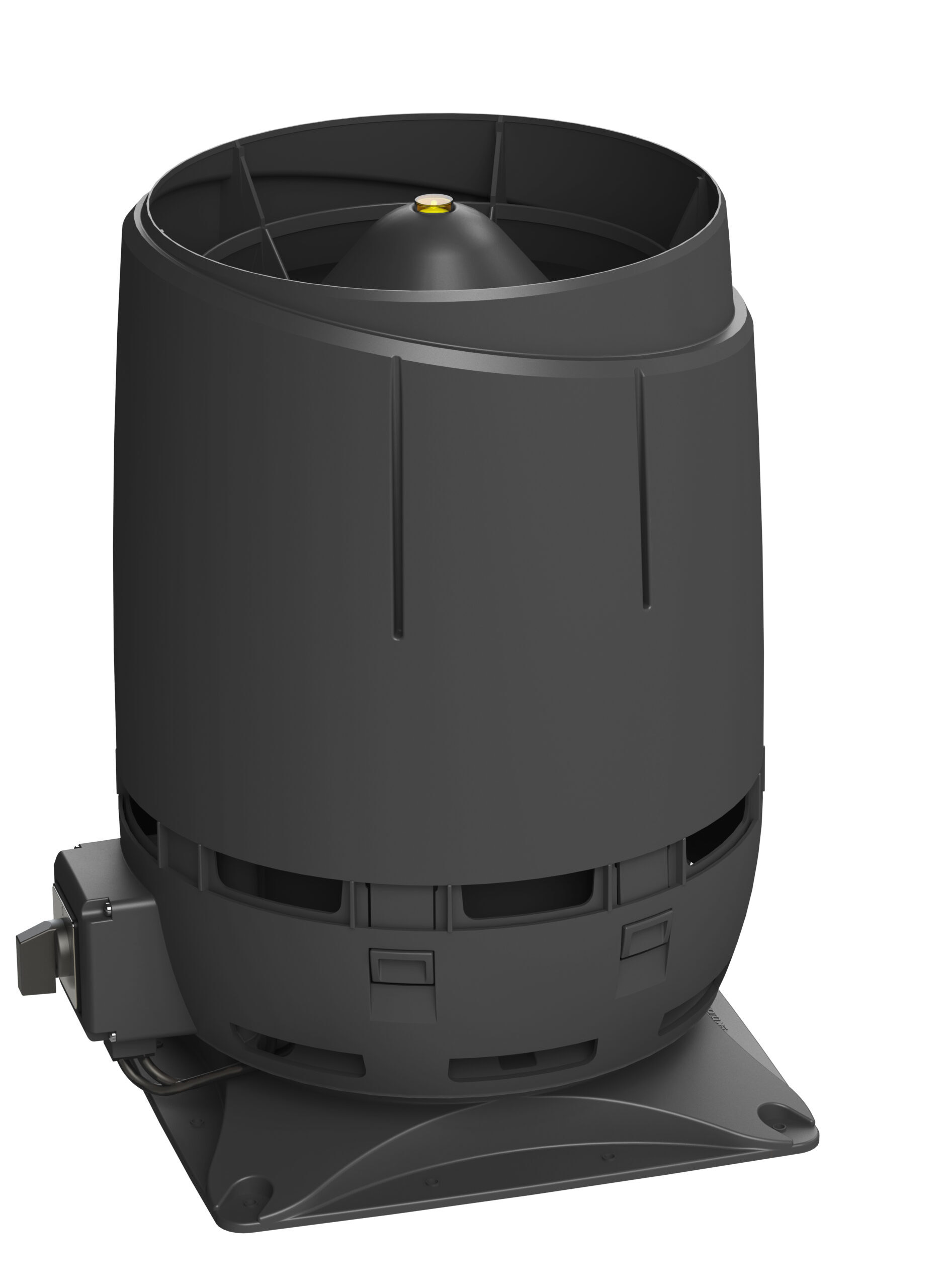

ECo 160S FLOW Roof Fan + Installation Set 300 X 300

Description: Energy-efficient roof fan with FLOW cowl and EC motor (with 0-10V control voltage) for the top of an air conduit or silencer. An installation set for a flat surface is included with this product. VILPE ECo Controller control panel available separately.

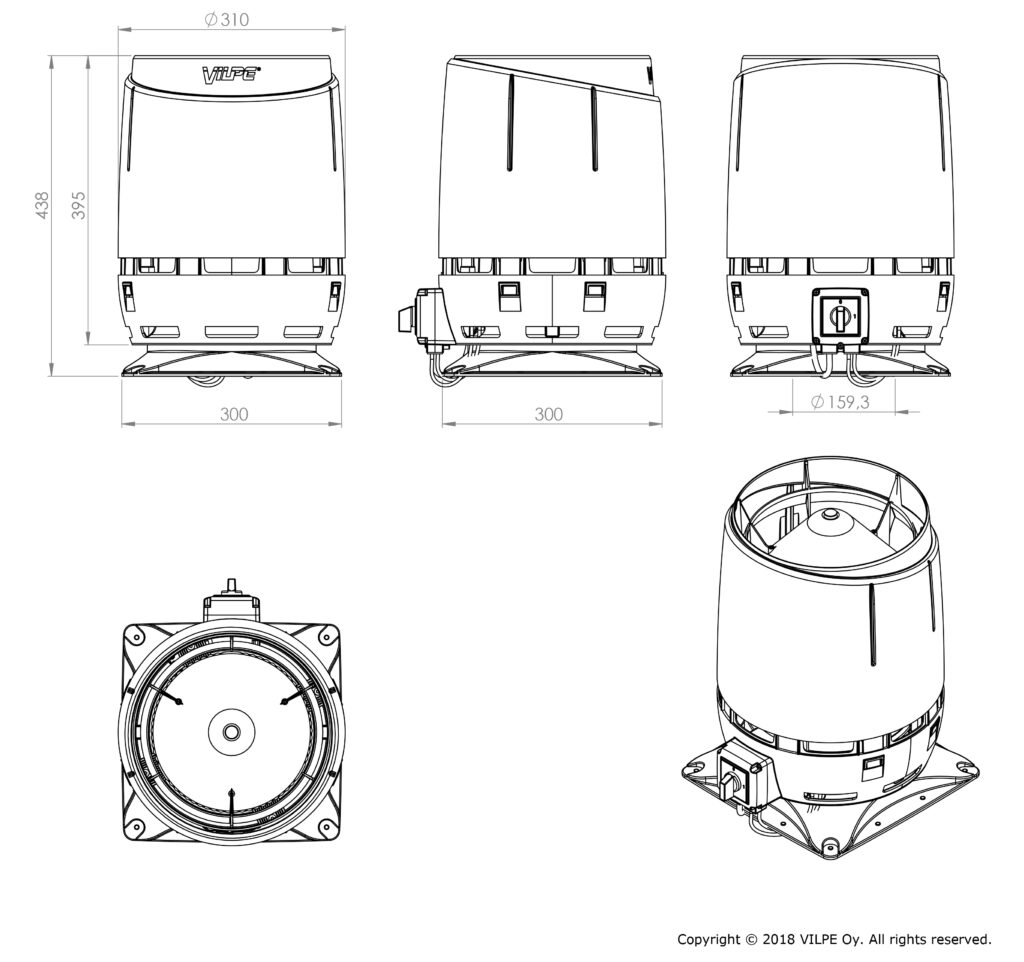

Dimensions: Duct size Ø 160 mm; installation set 300 x 300 mm, installation area must be at least the same size.

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number350212
LVI Code7820322
EAN Code6410453502121
Color Black | RR33 | RAL9005
Weight Gross: 5.393kg, Net: 4.855kg
Product number350214
LVI Code7820323
EAN Code6410453502145
Color Brown | RR32
Weight Gross: 5.34kg, Net: 4.802kg
Product number350216
LVI Code7820324
EAN Code6410453502169
Color Green | RR11
Weight Gross: 5.34kg, Net: 4.802kg
Product number350217
LVI Code7820325
EAN Code6410453502176
Color Grey | RR23 | RAL7015
Weight Gross: 5.34kg, Net: 4.802kg
Product number350218
LVI Code7820326
EAN Code6410453502183
Color Red | RAL3031
Weight Gross: 5.34kg, Net: 4.802kg
Product number350219
LVI Code7820327
EAN Code6410453502190
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.34kg, Net: 4.802kg
Product number350211
LVI Code7820321
EAN Code6410453502114
Color Light Grey | RAL7040
Weight Gross: 5.343kg, Net: 4.805kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
Voltage230V/50Hz
Current0,7 A
Rotation speed (rpm)2580 rpm
Power85 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 160 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Energy efficiency data

Energy class
D,B

Download CAD Models

Download DWG-file
35021x.dwg
