ECO125C/400 FLOW ROOF FAN

ECO125C/400 FLOW ROOF FAN

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Can be controlled by a separate control panel (ECo Ideal Wireless or the ECo Controller 0-10 V) or by connecting to building automation. Includes a galvanized steel inner pipe with a lip seal. The motor is preadjusted to 3V. The fan is equipped with an external service switch. Should be installed in a sheet metal cone with a Ø 230 mm opening, made by a tinsmith.

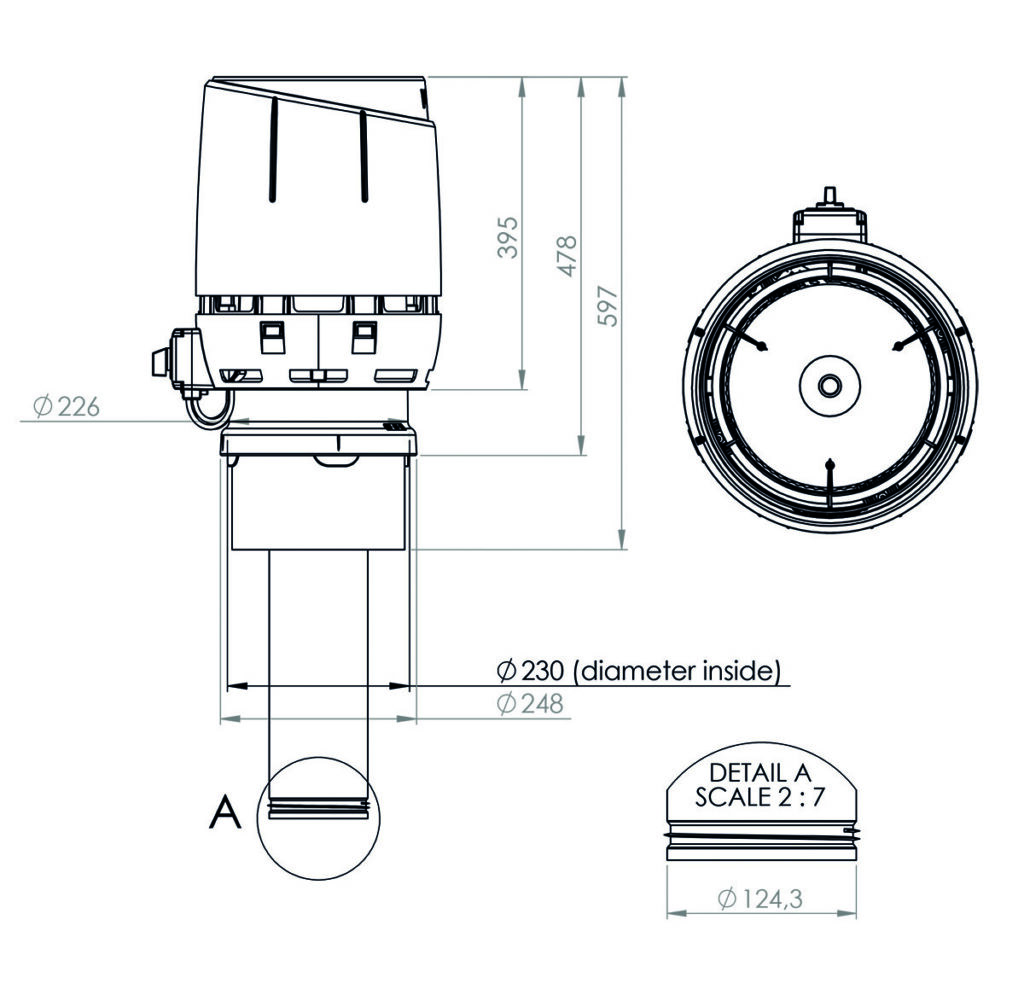

Dimensions: Duct size Ø 125 mm, height above roof approx. 480 mm + cone height.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Light Grey
Brown
Grey
Product number350572
LVI Code7820513
EAN Code6410453505726
Color Black | RR33 | RAL9005
Weight Gross: 9.007kg, Net: 7.443kg
Product number350571
LVI Code7820512
EAN Code6410453505719
Color Light Grey | RAL7040
Weight Gross: 8.98kg, Net: 7.416kg
Product number350574
LVI Code7820514
EAN Code6410453505740
Color Brown | RR32 | RAL8019
Weight Gross: 9.007kg, Net: 7.443kg
Product number350577
LVI Code7820516
EAN Code6410453505771

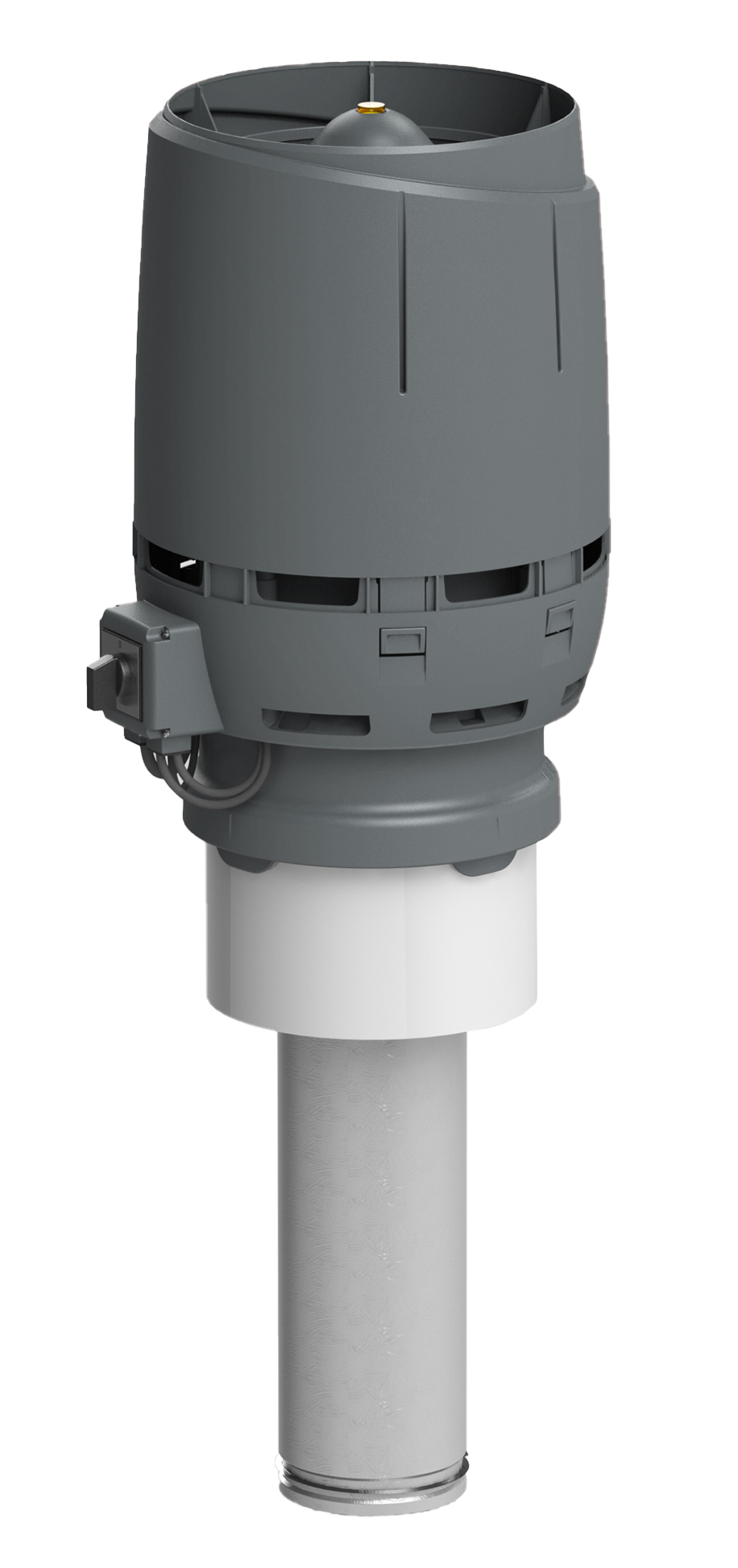

Color Grey | RR23 | RAL7024
Weight Gross: 9.007kg, Net: 7.443kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size125 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

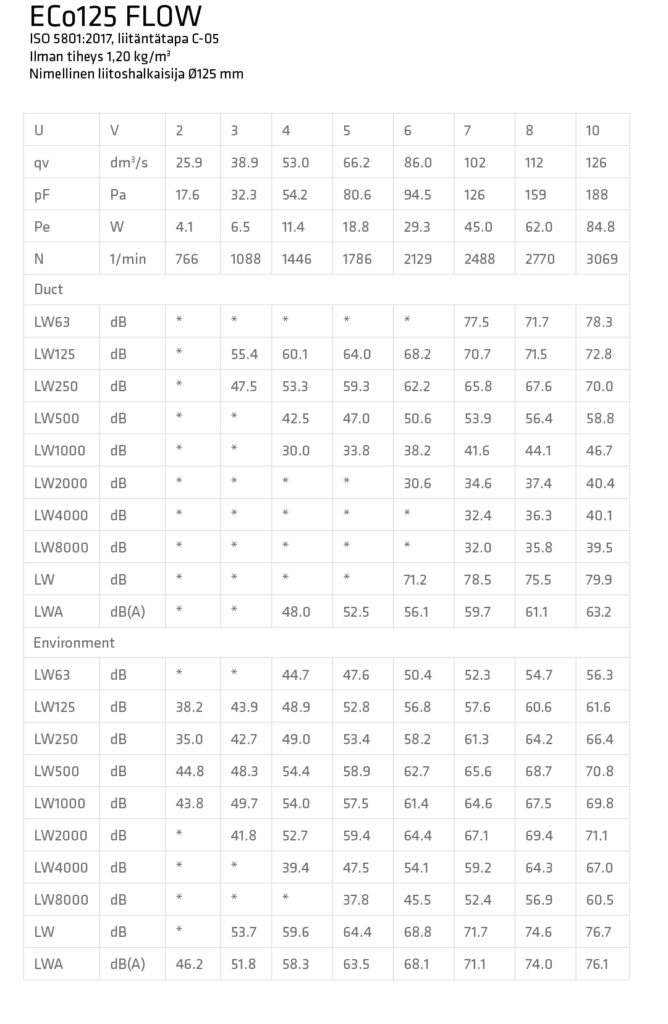

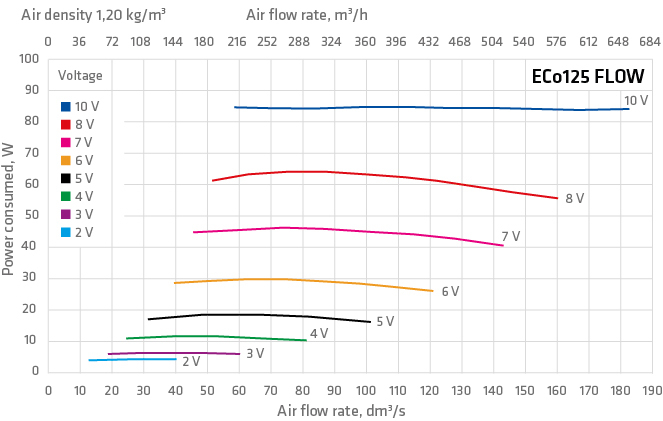

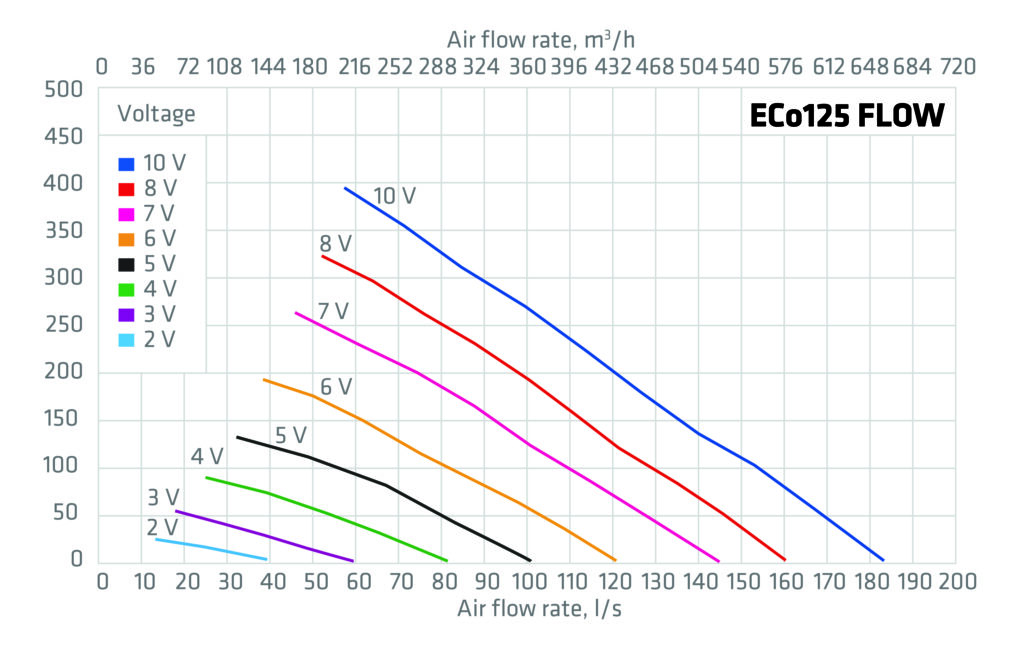

Performance data graphs

VILPE ECo FLOW 125 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

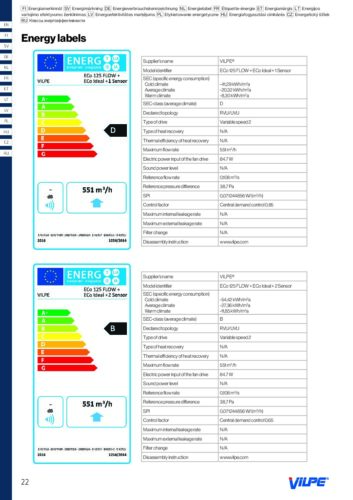

Energy efficiency data

Energy class
D, B

Download CAD Models

Download DWG-file
35057x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: C-Series roof fans, Roof fans
