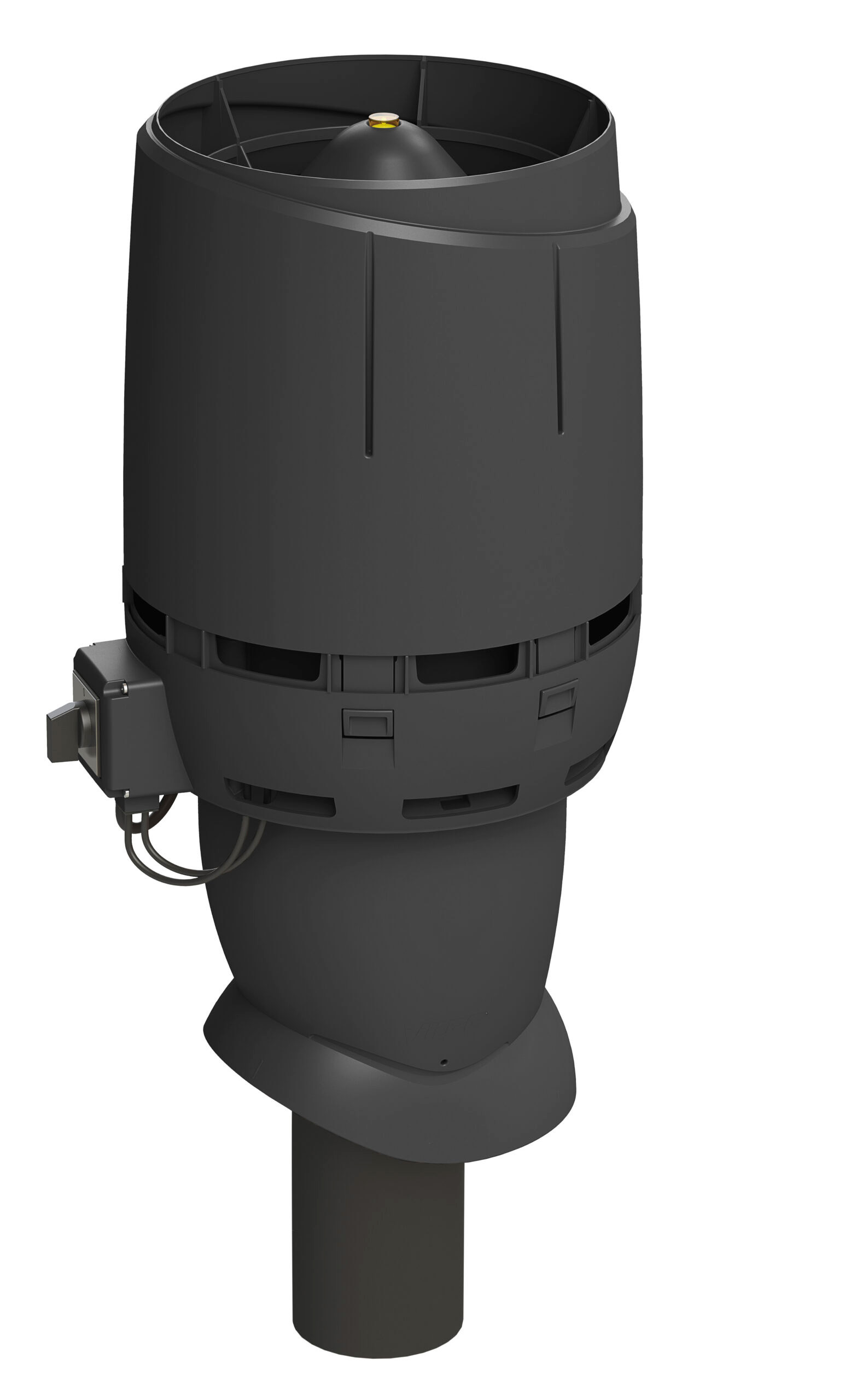

ECo 110P/500 FLOW Roof Fan

Description: Energy-efficient roof fan with FLOW cowl and EC motor for radon ventilation. Also suitable for ventilating an ecological toilet. A separate control panel–either the VILPE ECo Ideal Wireless or the VILPE ECo Controller 0–10 V–is needed to adjust the roof fan. VILPE pass-throughs suitable for a range of roofing types and material are available separately.

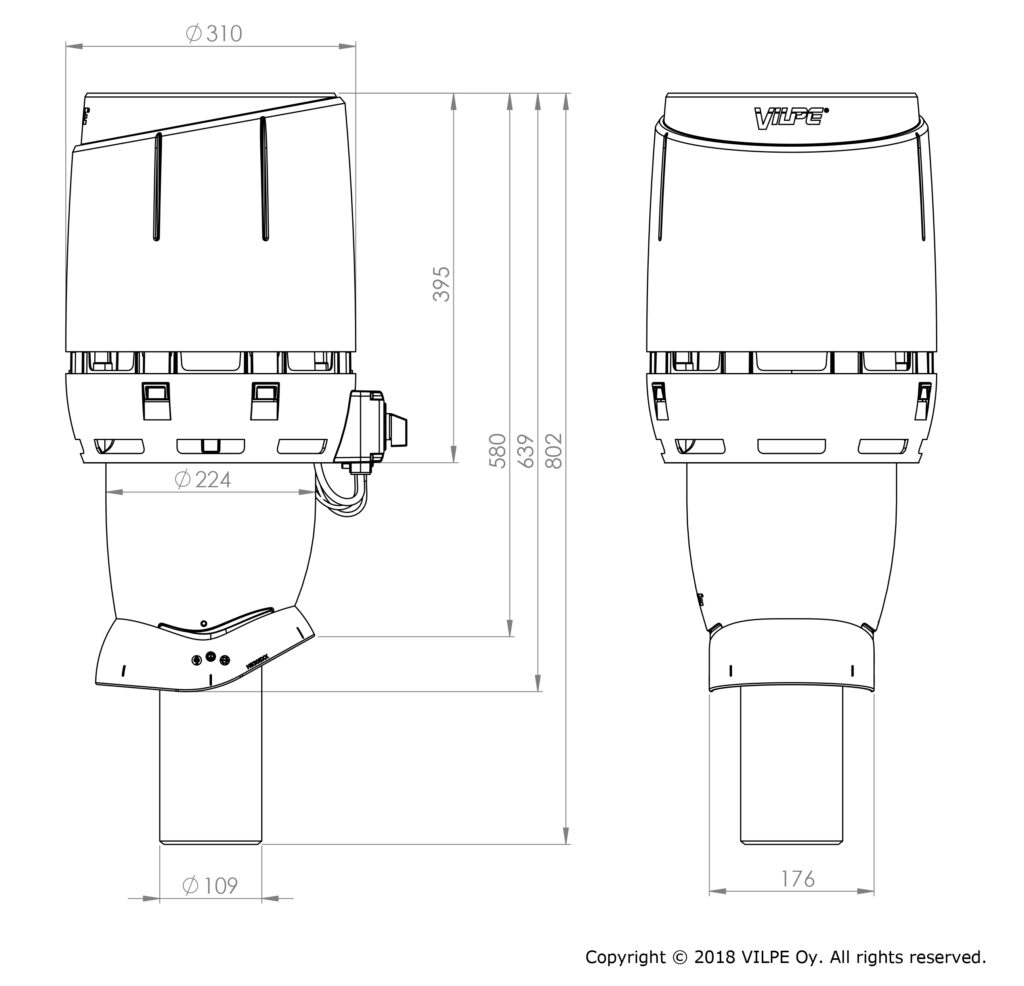

Dimensions: Duct size Ø 110 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.
Color
Black
Light Grey
Brown
Green
Grey
Red
Brick Red
Product number350272
EAN Code6410453502725
Color Black | RR33 | RAL9005
Weight Gross: 6.18kg, Net: 5.31kg
Product number350271
EAN Code6410453502718
Color Light Grey | RR33 | RAL7040
Weight Gross: 6.18kg, Net: 5.31kg
Product number350274
EAN Code6410453502749
Color Brown | RR32 | RAL9005
Weight Gross: 6.18kg, Net: 5.31kg
Product number350276
EAN Code6410453502763
Color Green | RR11 | RAL9005
Weight Gross: 6.18kg, Net: 5.31kg
Product number350277
EAN Code6410453502770
Color Grey | RR23 | RAL7015
Weight Gross: 6.18kg, Net: 5.31kg
Product number350278
EAN Code6410453502787
Color Red | RR29 | RAL3009
Weight Gross: 6.18kg, Net: 5.31kg
Product number350279
EAN Code6410453502794
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.18kg, Net: 5.31kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size110 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

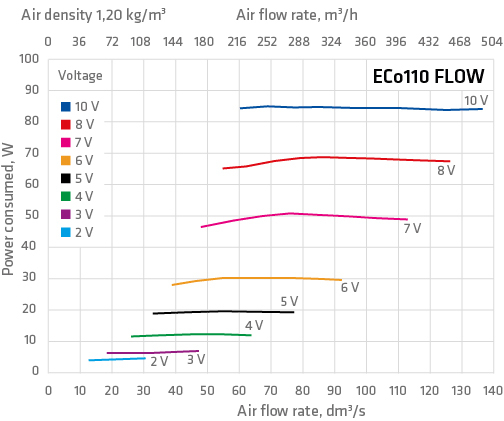

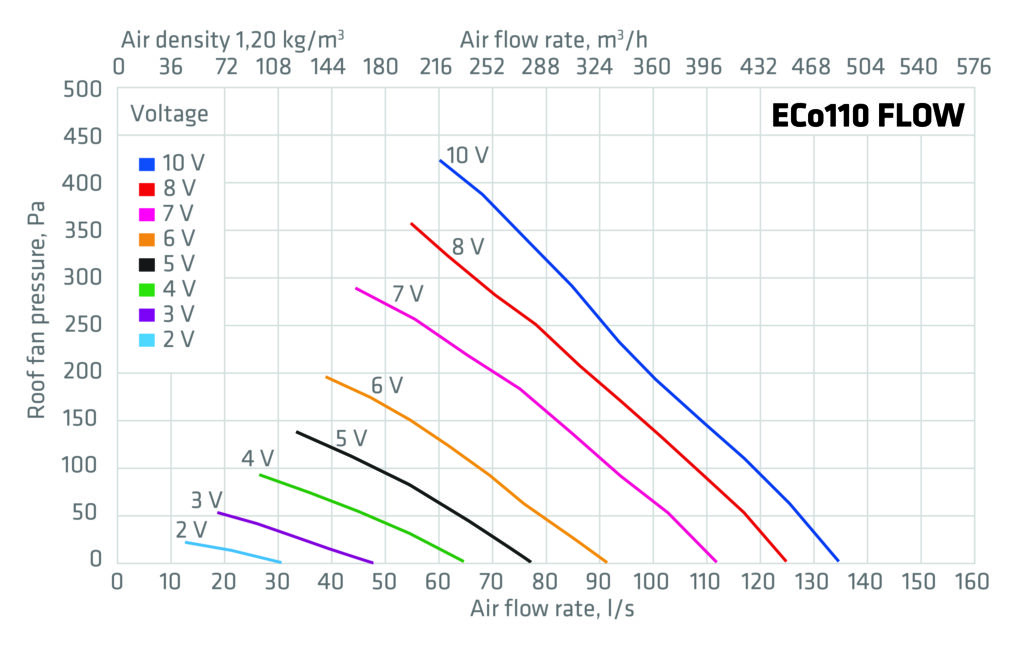

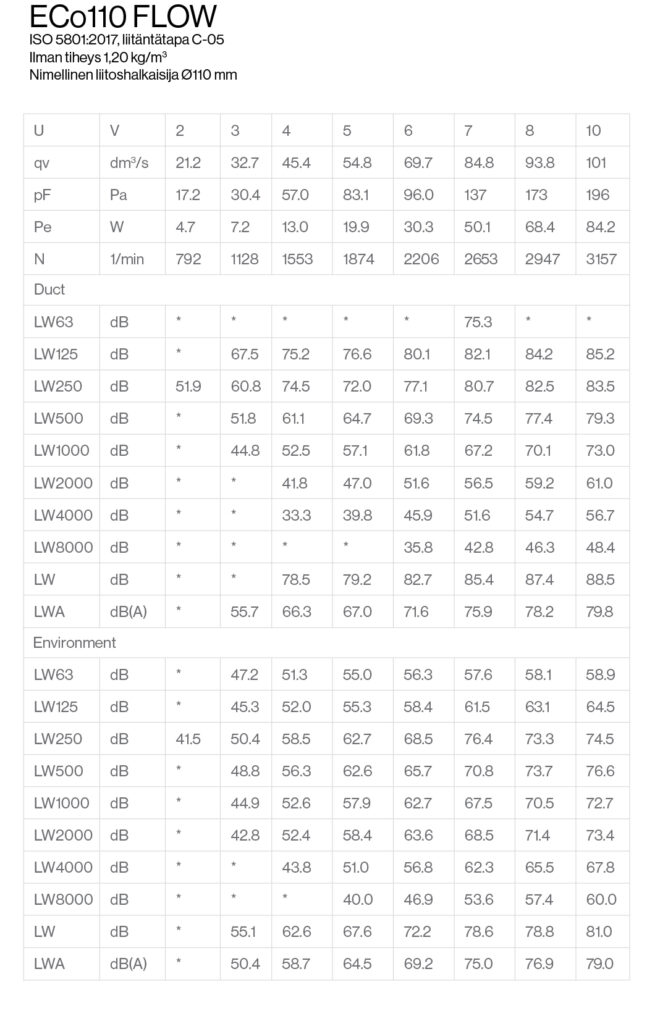

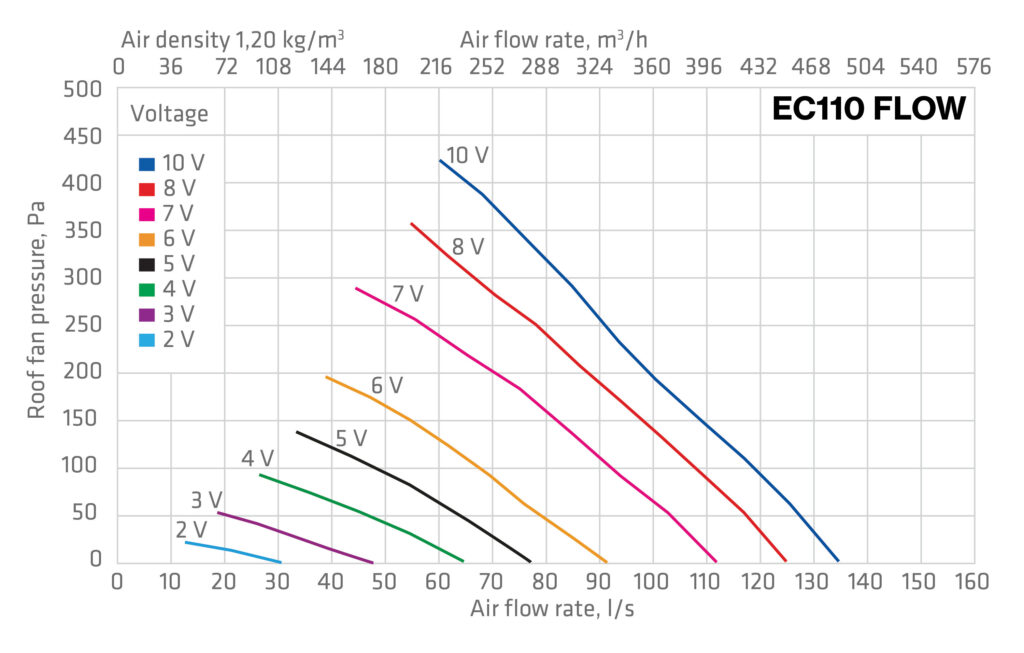

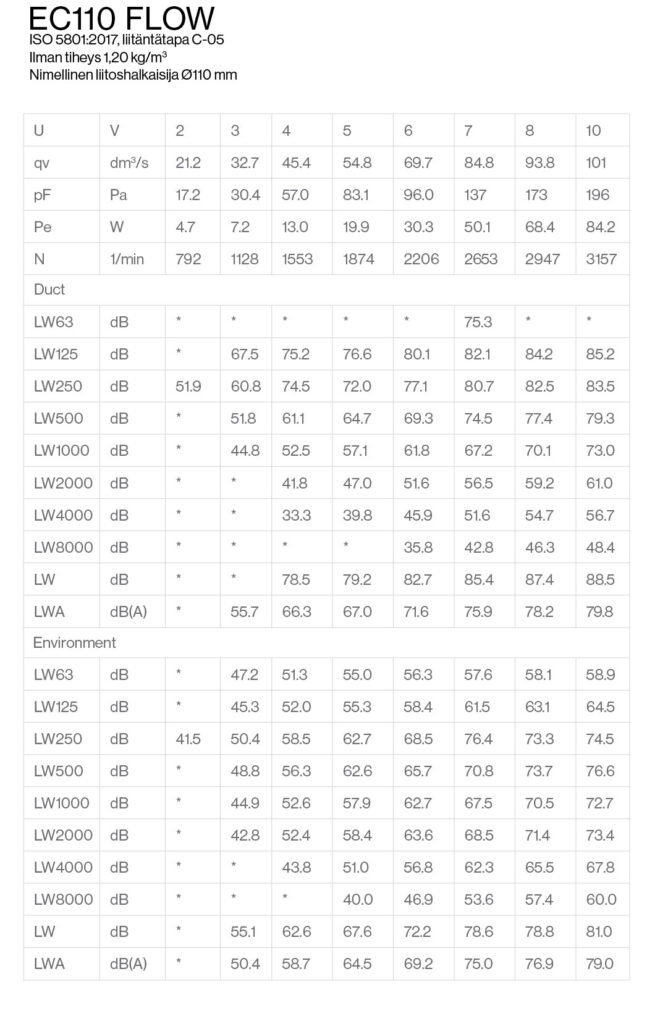

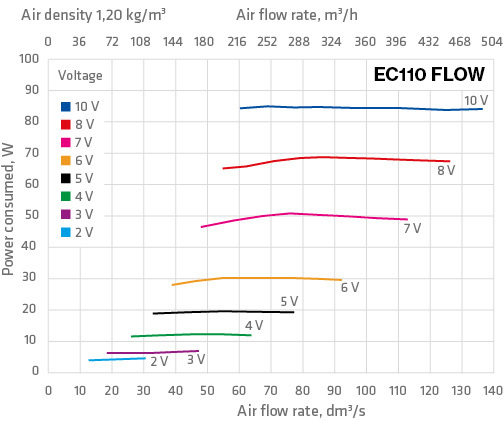

Performance data graphs

VILPE ECo FLOW 110 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Download CAD Models

MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

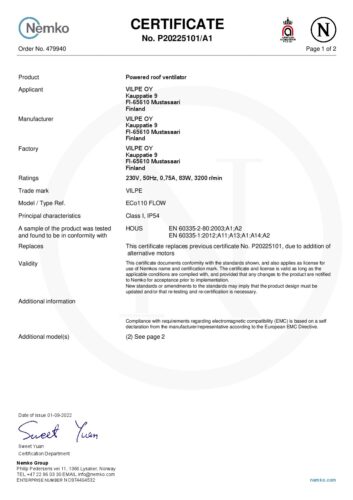

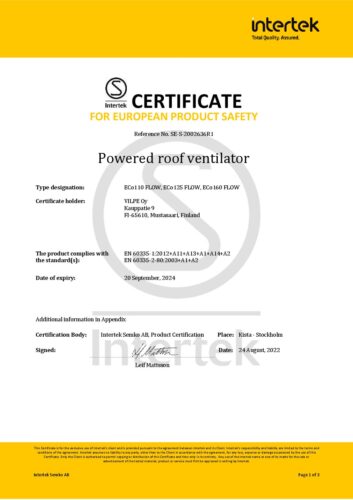

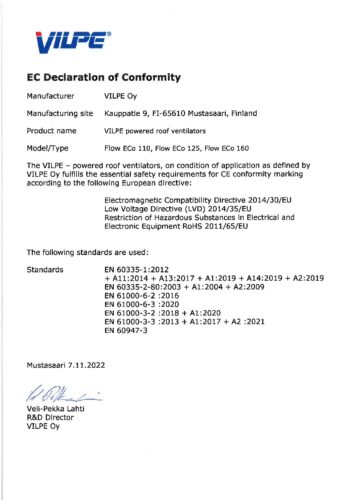

Certificates

Product categories: P-Series roof fans, Roof fans
