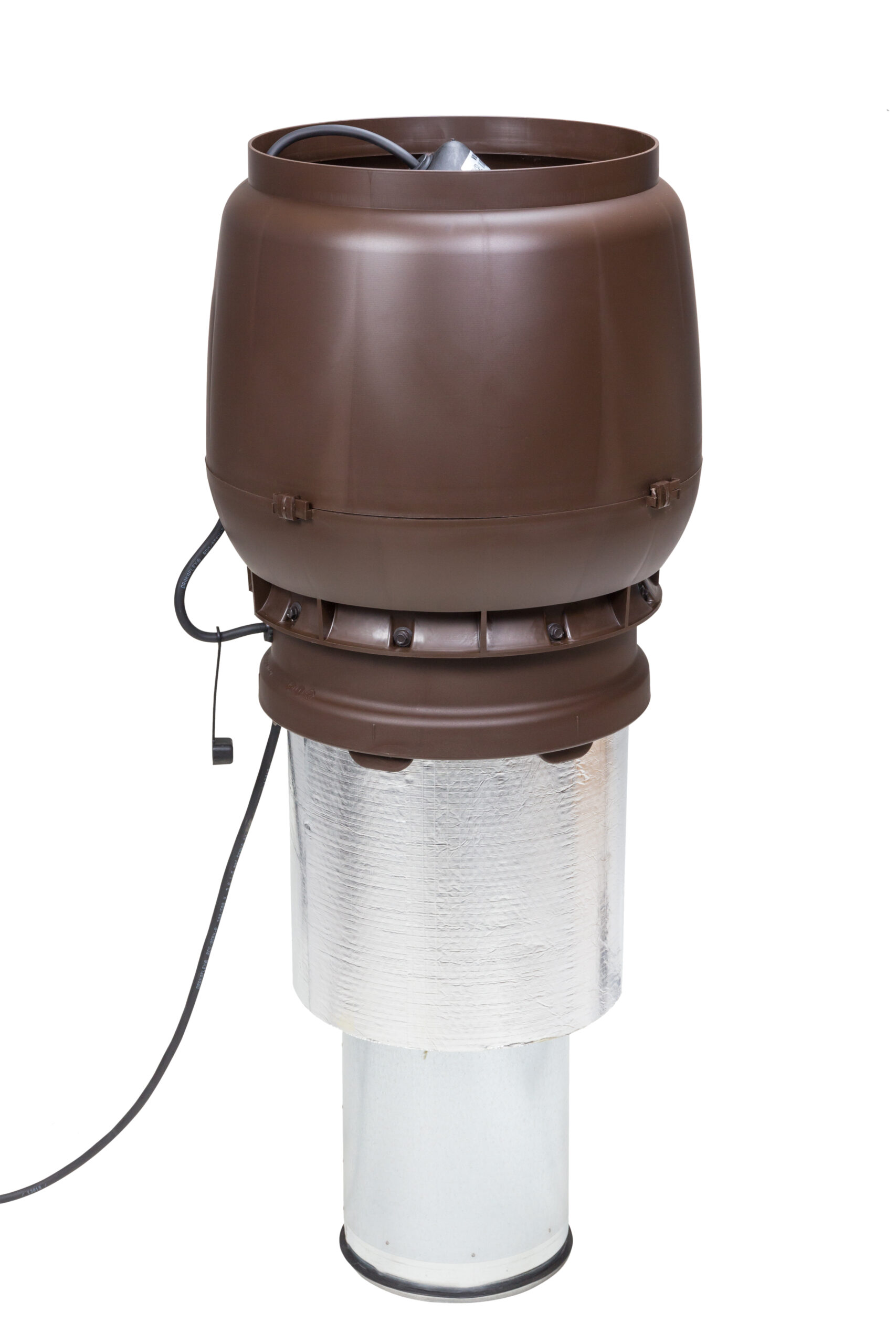

E250C/Ø200/450 XL ROOF FAN

E250C/Ø200/450 XL ROOF FAN

DISCONTINUED

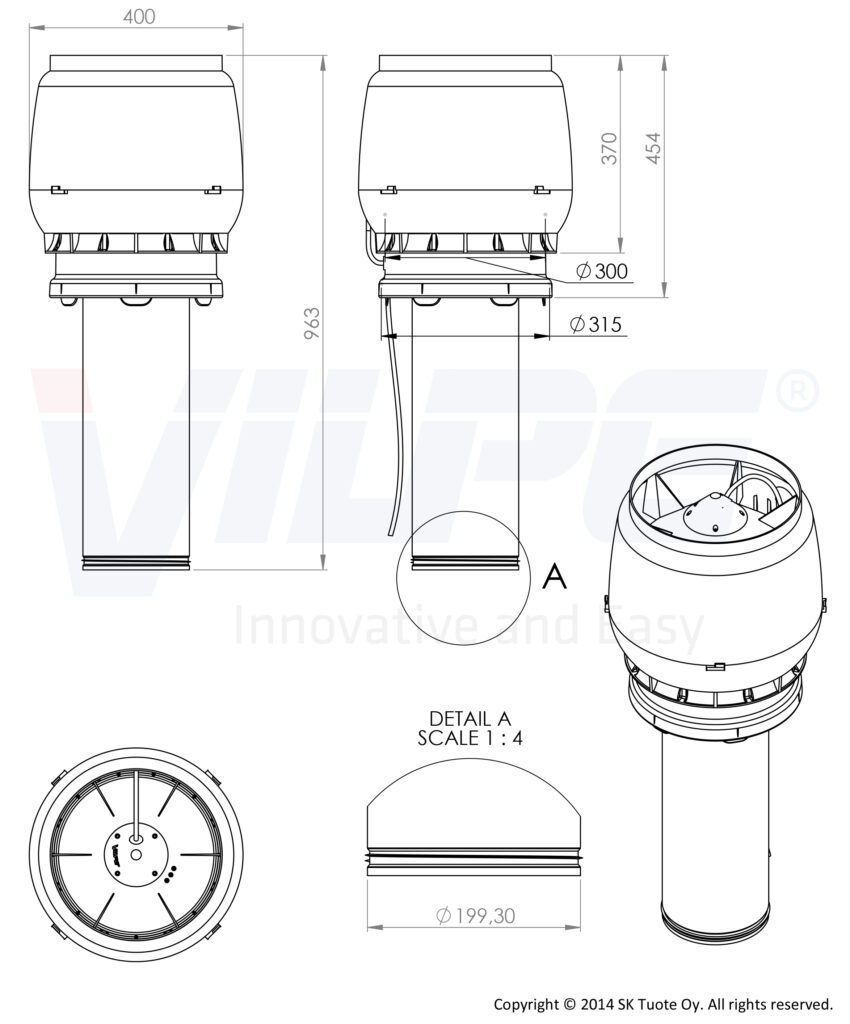

Description: Insulated polypropylene Ø 200 mm roof fan. Designed for sheet metal roof cones. Outer diameter 300 mm, height 450 mm. Inner pipe made out of galvanized sheet steel. Requires a 315 mm diameter opening on the roof cone. Screws for fixing the pipe to a roof cone are included.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number791362
LVI Code7814972
EAN Code6410457913626
Color Black | RR33 | RAL9005
Weight Gross: 11.317kg, Net: 9.908kg
Product number791364
LVI Code7814974
EAN Code6410457913640
Color Brown | RR32
Weight Gross: 11.317kg, Net: 9.908kg
Product number791366
LVI Code7814976
EAN Code6410457913664
Color Green | RR11
Weight Gross: 11.317kg, Net: 9.908kg
Product number791367
LVI Code7814977
EAN Code6410457913671
Color Grey | RR23 | RAL7015
Weight Gross: 11.317kg, Net: 9.908kg
Product number791368
LVI Code7814978
EAN Code6410457913688
Color Red | RR29 | RAL3009
Weight Gross: 11.317kg, Net: 9.908kg
Product number791369
LVI Code7814979
EAN Code6410457913695
Color Brick Red | RR750 | RAL8004
Weight Gross: 11.317kg, Net: 9.908kg
SKU: N/A Category:
Share product page
Print pdf
Duct size200 Ø
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,93 A
Rotation speed (rpm)2500 rpm
Capacitor5 µF
Power210 W
Fan typeAC

Materials & Installation
