E220P/Ø160/500 XL ROOF FAN
E220P/Ø160/500 XL ROOF FAN - Image 2

E220P/Ø160/500 XL ROOF FAN

DISCONTINUED

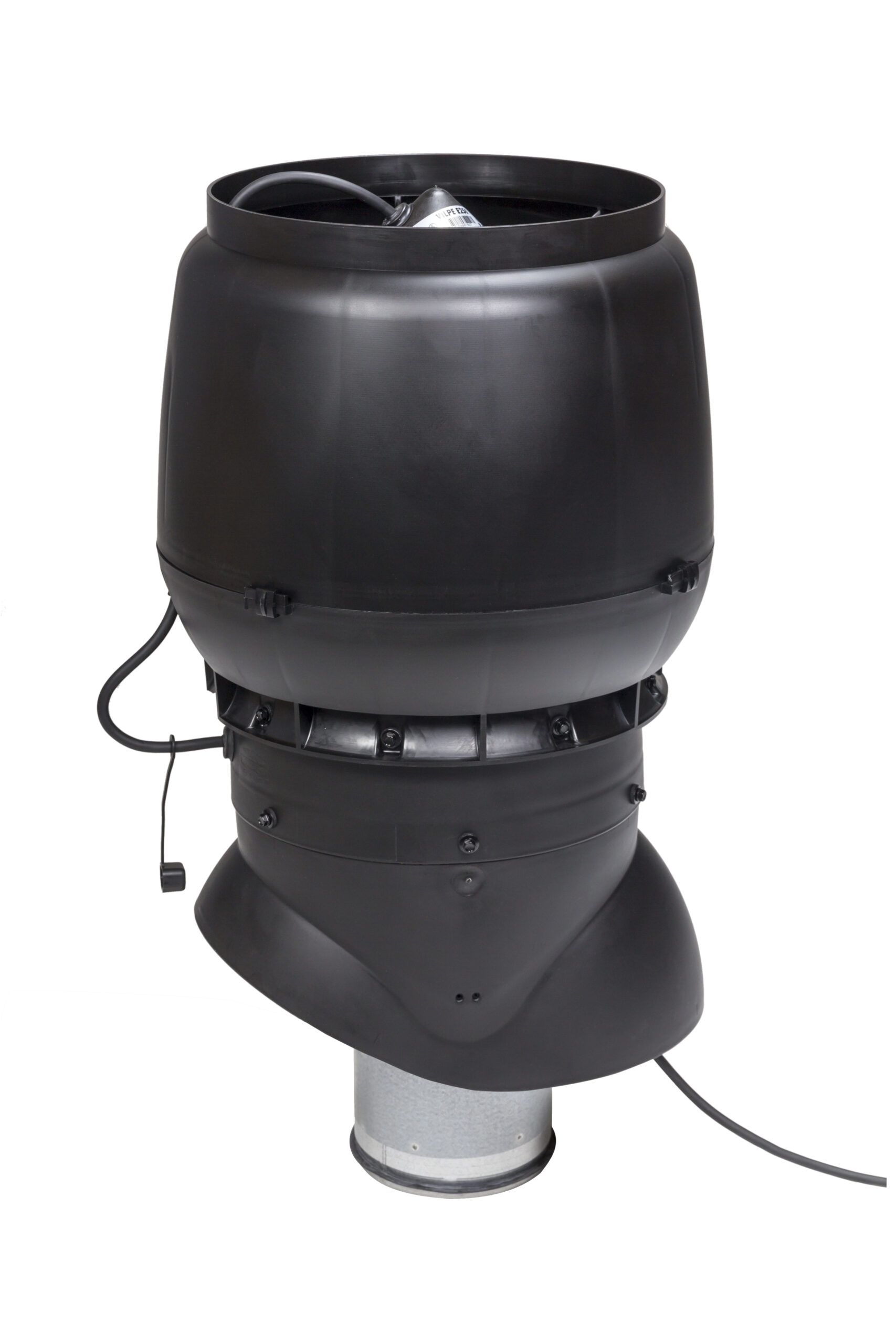

Description: Insulated XL roof fan. Inner pipe is made of galvanized sheet metal and has a lip seal. A VILPE XL pass-through according to the roofing material is required separately.

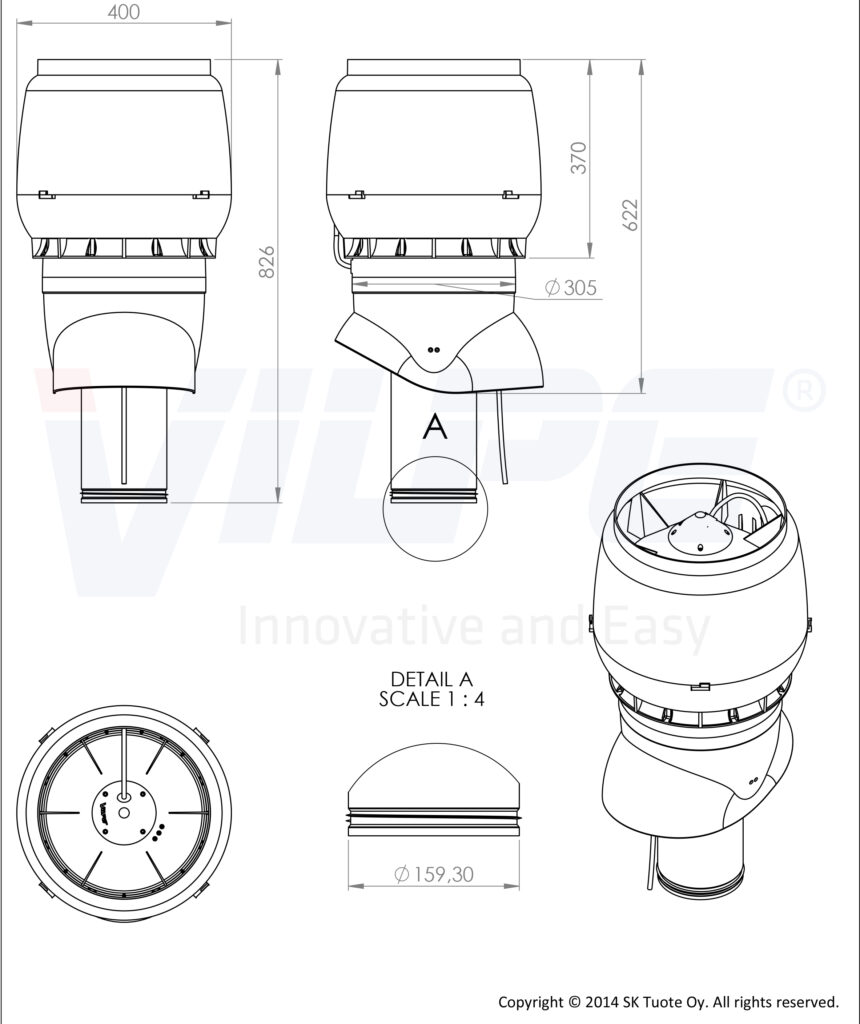

Dimensions: Duct size Ø 160 mm, external Ø 300 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, Installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number734502
EAN Code6410457345021
Color Black | RR33 | RAL9005
Weight Gross: 7.41kg, Net: 6.624kg
Product number734504
EAN Code6410457345045
Color Brown | RR32
Weight Gross: 7.41kg, Net: 6.624kg
Product number734506
EAN Code6410457345069
Color Green | RR11
Weight Gross: 7.41kg, Net: 6.624kg
Product number734507
EAN Code6410457345076
Color Grey | RR23 | RAL7015
Weight Gross: 7.41kg, Net: 6.624kg
Product number734508
EAN Code6410457345083
Color Red | RR29 | RAL3009
Weight Gross: 7.41kg, Net: 6.624kg
Product number734509
EAN Code6410457345090
Color Brick Red | RR750 | RAL8004
Weight Gross: 7.41kg, Net: 6.624kg
SKU: N/A Category:
Share product page
Print pdf
Duct size160 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,39 A
Rotation speed (rpm)2100 rpm
Capacitor2 µF
Power88 W
Fan typeAC

Download CAD Models

MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Videos

Product categories: Discontinued
