E220C/Ø160/450 XL Roof Fan

Description: Insulated XL roof fan. Includes a galvanized steel inner pipe with a lip seal. Should be installed in a sheet metal cone with a Ø 315 mm opening, made by a tinsmith.

Dimensions: Duct size Ø 160 mm, external Ø 300 mm, height 450 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number791402
LVI Code7820417
EAN Code6410457914029
Color Black | RR33 | RAL9005
Weight Gross: 5.81kg, Net: 4.93kg
Product number791352
LVI Code7814952
EAN Code6410457913527
Color Black | RR33 | RAL9005
Weight Gross: 6.982kg, Net: 5.837kg
Product number791354
LVI Code7814954
EAN Code6410457913541
Color Brown | RR32
Weight Gross: 6.982kg, Net: 5.837kg
Product number791356
LVI Code7814956
EAN Code6410457913565
Color Green | RR11
Weight Gross: 6.982kg, Net: 5.837kg
Product number791357
LVI Code7814957
EAN Code6410457913572
Color Grey | RR23 | RAL7015
Weight Gross: 6.982kg, Net: 5.837kg
Product number791358
LVI Code7814958
EAN Code6410457913589
Color Red | RR29 | RAL3009
Weight Gross: 6.982kg, Net: 5.837kg
Product number791359
LVI Code7814959
EAN Code6410457913596
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.982kg, Net: 5.837kg
Product number791351
LVI Code7820448
EAN Code6410457913510
Color Light Grey
Weight Gross: 6.982kg, Net: 5.837kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,39 A
Rotation speed (rpm)2100 rpm
Capacitor2 µF
Power88 W
Fan typeAC

Download CAD Models

Download DWG-file
79135x.dwg
MagiCAD file

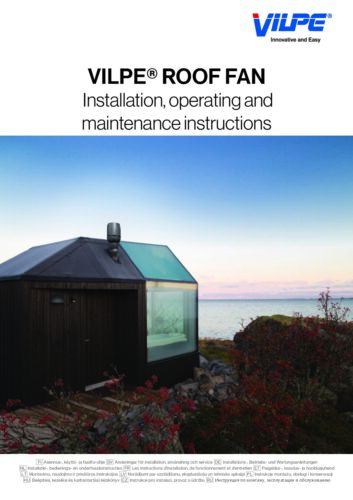

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

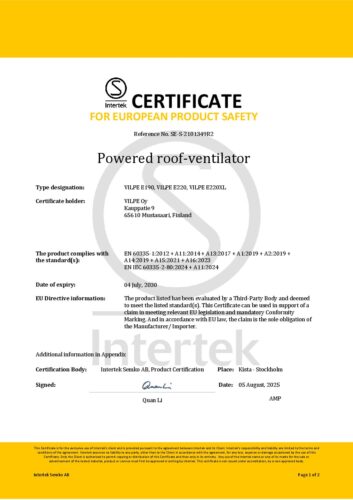

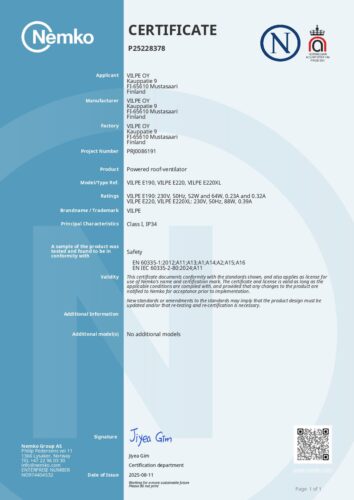

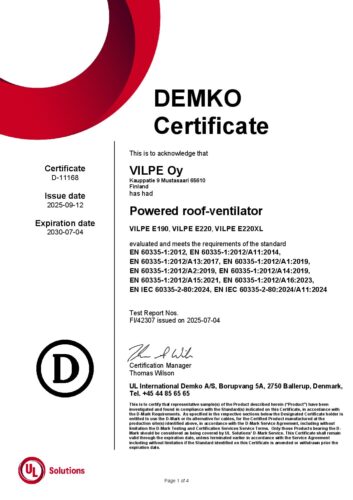

Certificates

Product categories: C-Series roof fans, Roof fans
