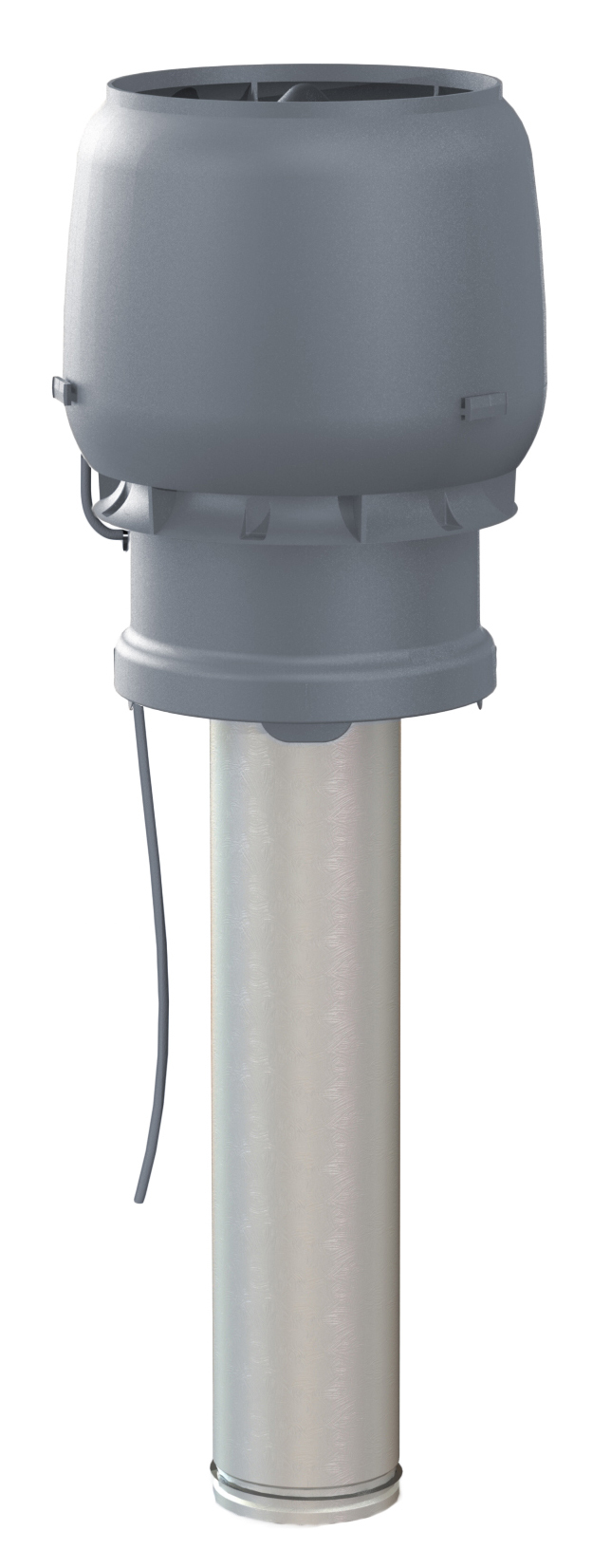

E190C/Ø125/400 Roof Fan

Description: Insulated roof fan. Includes a galvanized steel inner pipe with a lip seal. Should be installed in a sheet metal cone with a Ø 230 mm opening, made by a tinsmith.

Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height 400 mm.

Compatible controllers

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Color
Black
Light Grey
Brown
Green
Grey
Red
Brick Red
Product number791402
LVI Code7820417
EAN Code6410457914029
Color Black | RR33 | RAL9005
Weight Gross: 8.288kg, Net: 7.199kg
Product number791401
LVI Code7820416
EAN Code6410457914012
Color Light Grey | RAL7040
Weight Gross: 8.241kg, Net: 7.152kg
Product number791404
LVI Code7820418
EAN Code6410457914043
Color Brown | RR32
Weight Gross: 8.288kg, Net: 7.199kg
Product number791406
LVI Code7820419
EAN Code6410457914067
Color Green | RR11
Weight Gross: 5.81kg, Net: 4.93kg
Product number791407
LVI Code7820420
EAN Code6410457914074
Color Grey | RR23 | RAL7015
Weight Gross: 8.288kg, Net: 7.199kg
Product number791408
LVI Code7820421
EAN Code6410457914081
Color Red | RR29 | RAL3009
Weight Gross: 5.81kg, Net: 4.93kg
Product number791409
LVI Code7820422
EAN Code6410457914098
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.81kg, Net: 4.93kg
SKU: N/A Categories: ,
Share product page
Duct size125 Ø
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Power52 W
Fan typeAC

Performance data graphs

VILPE E190 - ISO 5221:1984 - ISO 3471:1988

Air density: 1.2

10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V

Download CAD Models

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: C-Series roof fans, Roof fans
