CLASSIC VINO CLICK PASS-THROUGH

CLASSIC VINO CLICK PASS-THROUGH

Description: Plain standing seam roofing. Thick rubber seal on the bottom of the flange. Minimum roof pitch 1:5 (11,5°).

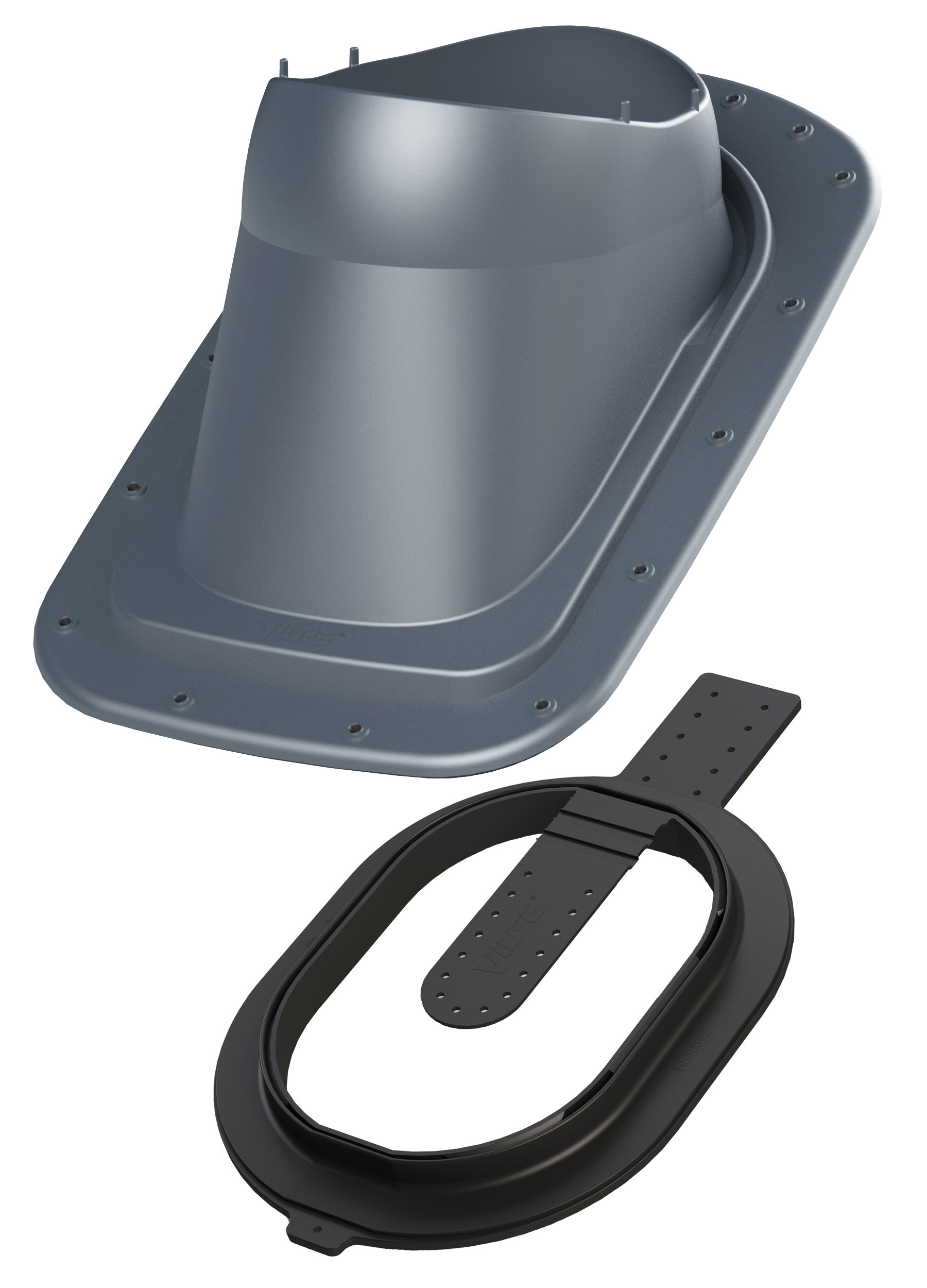

Contents: Pass-through, Click underlay seal, screws, installation instructions/templates for the underlay seal and the pass-through.

Color
Light Grey
Black
Brown
Green
Grey
Red
Brick Red
Chocolate Brown
Anthracite
Product number360121
LVI Code7820687
EAN Code6410457660292
Color Light Grey | RAL7040
Weight Gross: 1.077kg, Net: 0.927kg
Product number360122
LVI Code7820683
EAN Code6410457660308
Color Black | RR33 | RAL9005
Weight Gross: 1.077kg, Net: 0.927kg
Product number360124
LVI Code7820684
EAN Code6410457660315
Color Brown | RR32 | RAL8019
Weight Gross: 1.077kg, Net: 0.927kg
Product number360126
LVI Code7820685
EAN Code6410457660322
Color Green | RR11 | RAL6020
Weight Gross: 1.137kg, Net: 0.987kg
Product number360127
LVI Code7820686
EAN Code6410457660339
Color Grey | RR23 | RAL7024
Weight Gross: 1.137kg, Net: 0.987kg
Product number360128
LVI Code7820688
EAN Code6410457660346
Color Red | RR29 | RAL3009
Weight Gross: 1.137kg, Net: 0.987kg
Product number360129
LVI Code7820689
EAN Code6410457660353
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.137kg, Net: 0.987kg
Product number36012B
LVI Code7820690
EAN Code6410457660360
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 1.077kg, Net: 0.927kg
Product number36012D
LVI Code7820691
EAN Code6410457660377
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 1.137kg, Net: 0.987kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-57°
Pipe Ø12511.5°-57°
Pipe Ø16011.5°-52°
Roof MaterialSteel

Download CAD Models

Download DWG-file
36012x-746002x.dwg

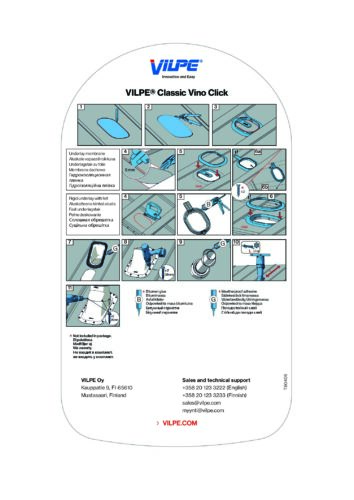

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-throughs, Pass-throughs for steel roofing
