CARISMA CLICK PASS-THROUGH

Description: Benders Carisma concrete tile roofs. The pass-through replaces one roof tile.
The pass-through plate is fastened to the batten using the same screws as Benders Carisma roof tiles, countersunk stainless steel tile screw 4.5 × 40 mm.
Used with VILPE P-series ⌀ 110–160 mm roof fans and ventilation pipes.

Colours: Black (Benders black and granite), brick red, and grey (Benders graphite and medium grey).

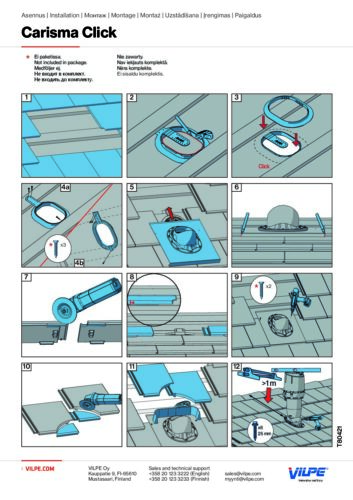

Package includes: Pass-through plate, Click underlay seal, installation instructions, and gasket.
