400S FLOW EXHAUST VENT + INST. SET

400S FLOW EXHAUST VENT + INST. SET

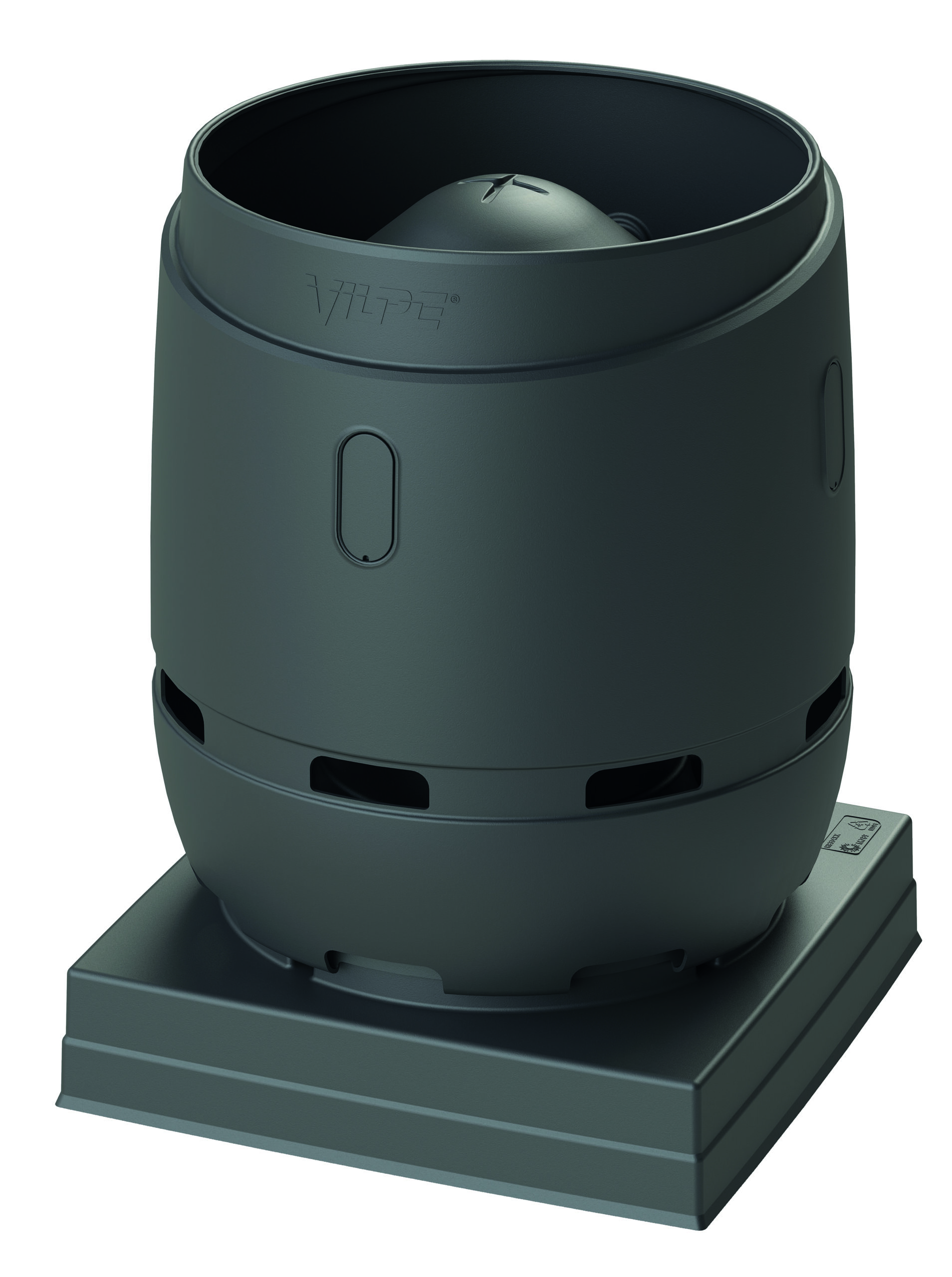

Description: Exhaust vent with FLOW cowl. Installed on a square-shaped 724 x 724 mm pass-through. An assembled square-shaped VILPE pass-through with a silencer is also available.

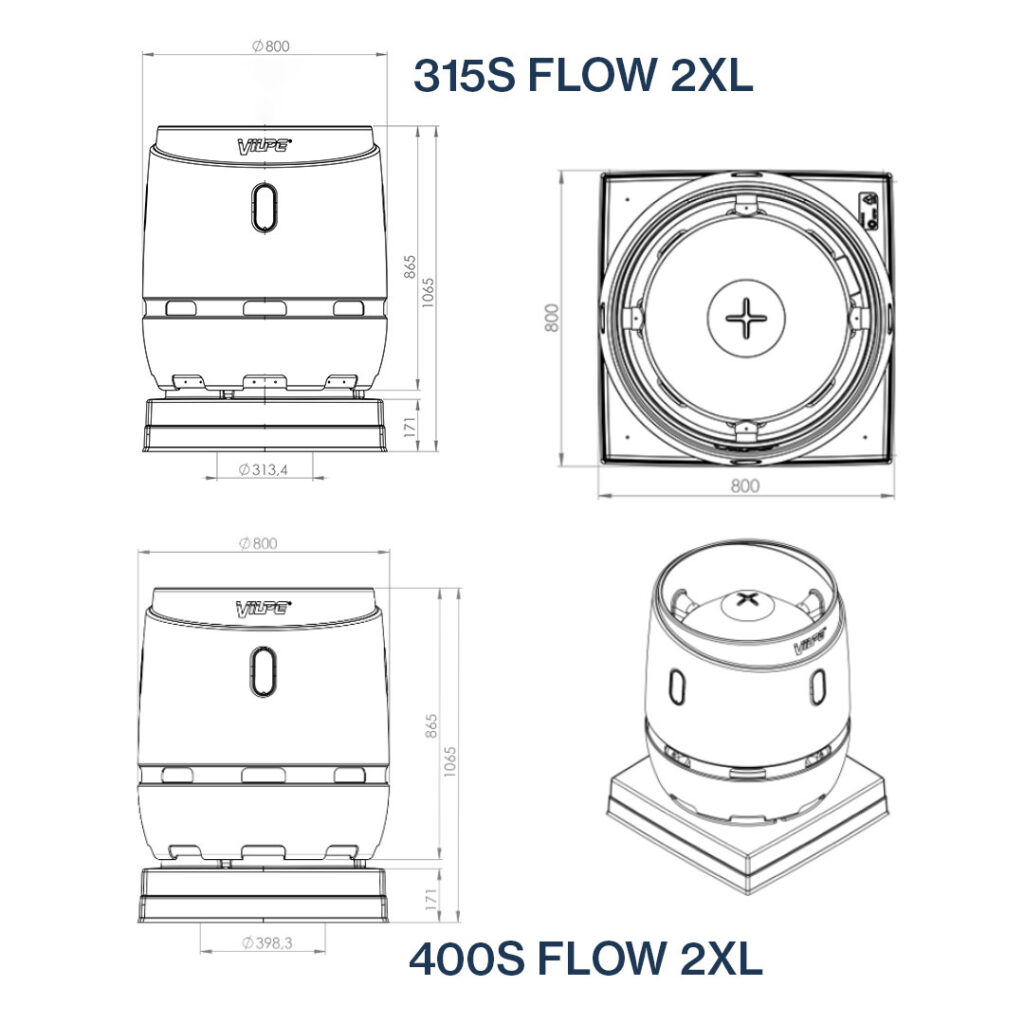

Dimensions: Ø 400 mm.

Contents: Exhaust vent, installation set, Ø 400 mm galvanized steel connection pipe.
Color
Silver Grey
Black
Grey
Product number350411
LVI Code7820533
EAN Code6410457652167
Color Silver Grey | RAL7001
Weight Gross: 24.909kg, Net: 24.905kg
Product number350412
LVI Code7820452
EAN Code6410453504125
Color Black | RR33 | RAL9005
Weight Gross: 24.909kg, Net: 24.905kg
Product number350417
LVI Code7820453
EAN Code6410453504170
Weight Gross: 24.909kg, Net: 24.905kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size400 Ø

Download CAD Models

Download DWG-file
350412.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Exhaust ventilation pipes, S-Series exhausts
