160P/IS/500 Intake Vent

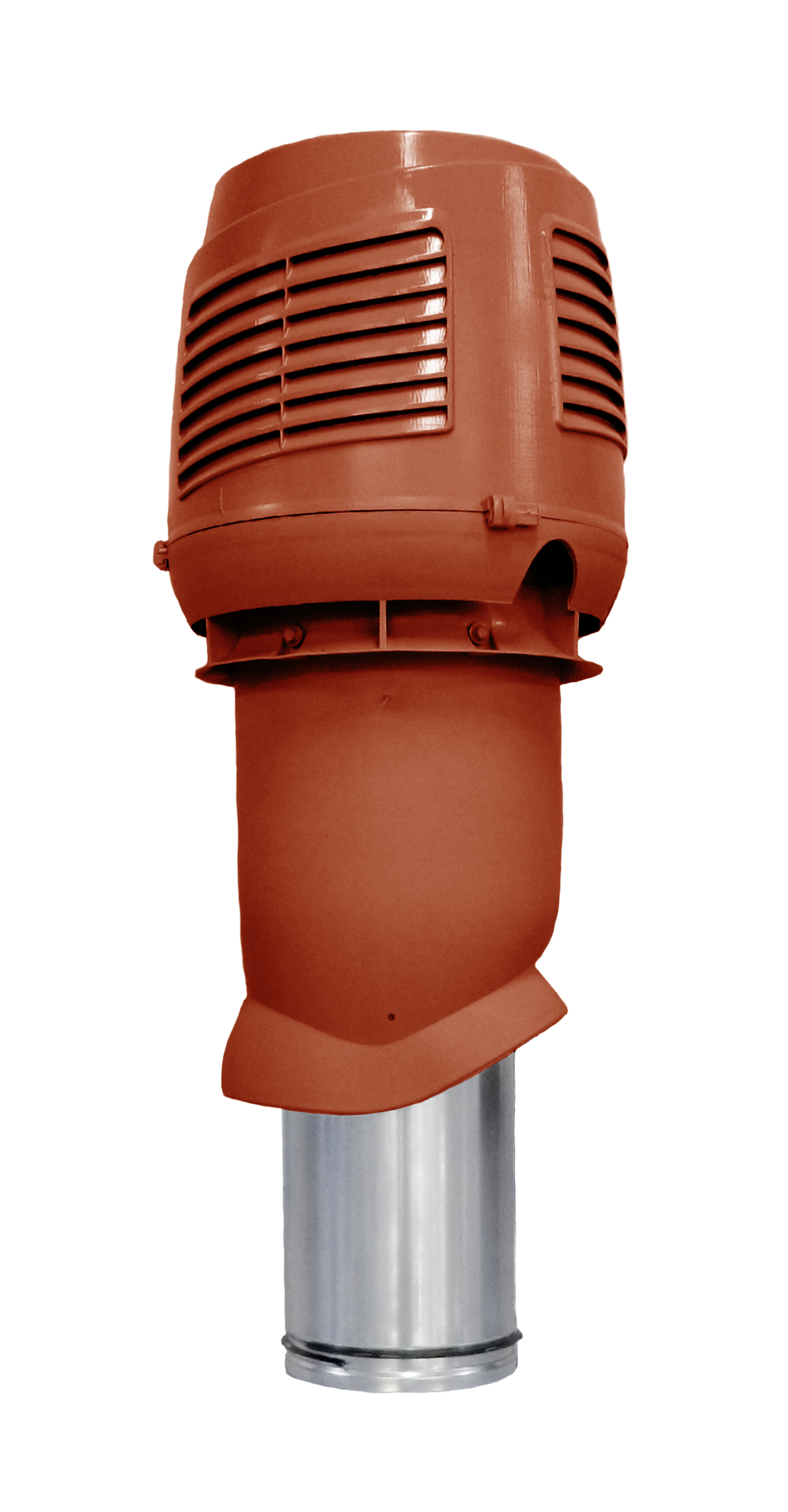

Description: Intake vent for buildings with a mechanical ventilation system, to be installed on the roof. Includes VILPE Intake Cowl with a unique structure which separates rain droplets from the outside air. The attention to detail in the design ensures minimal pressure loss. A separate pass-through should be selected according to the roofing material.

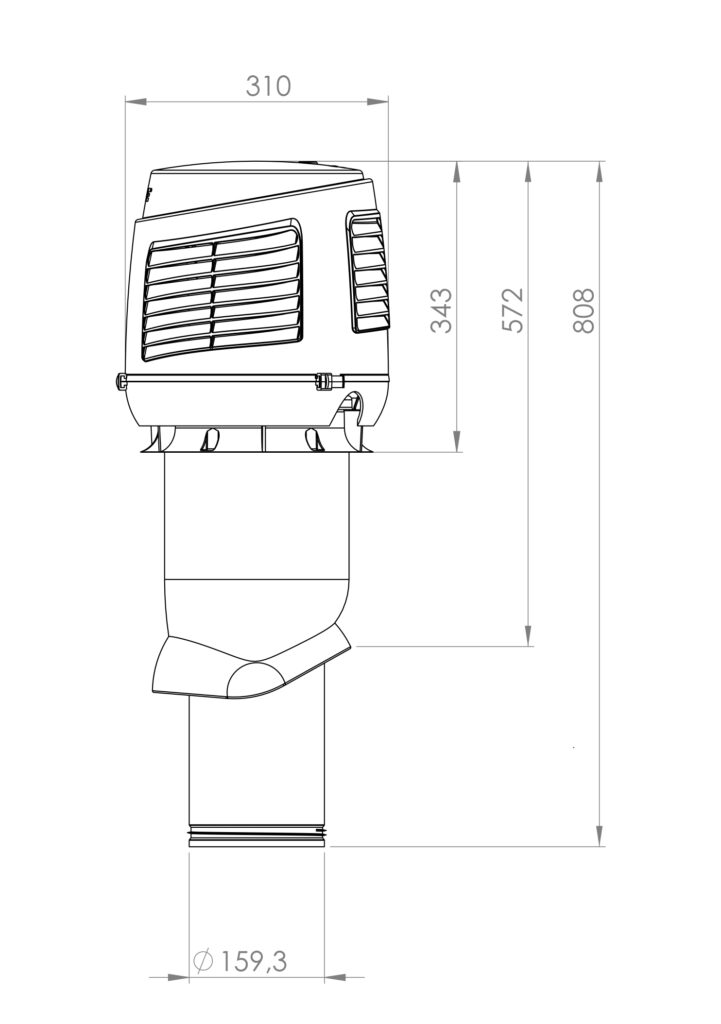

Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Ventilation pipe, intake cowl, screws.

Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Anthracite
Product number741882
EAN Code6410457418824
Color Black | RR33 | RAL9005
Weight Gross: 4.146kg, Net: 3.249kg
Product number741884
EAN Code6410457418848
Color Brown | RR32
Weight Gross: 4.146kg, Net: 3.249kg
Product number741886
EAN Code6410457418862
Color Green | RR11
Weight Gross: 4.146kg, Net: 3.249kg
Product number741887
EAN Code6410457418879
Color Grey | RR23 | RAL7015
Weight Gross: 4.146kg, Net: 3.249kg
Product number741888
EAN Code6410457418886
Color Red | RR29 | RAL3009
Weight Gross: 4.146kg, Net: 3.249kg
Product number741889
EAN Code6410457418893
Color Brick Red | RR750 | RAL8004
Weight Gross: 4.146kg, Net: 3.249kg
Product number741881
EAN Code6410457418817
Color Light Grey | RAL7040
Weight Gross: 4.146kg, Net: 3.249kg
Product number74188G
EAN Code6417323851181
Color Anthracite
Weight Gross: 4.146kg, Net: 3.249kg
