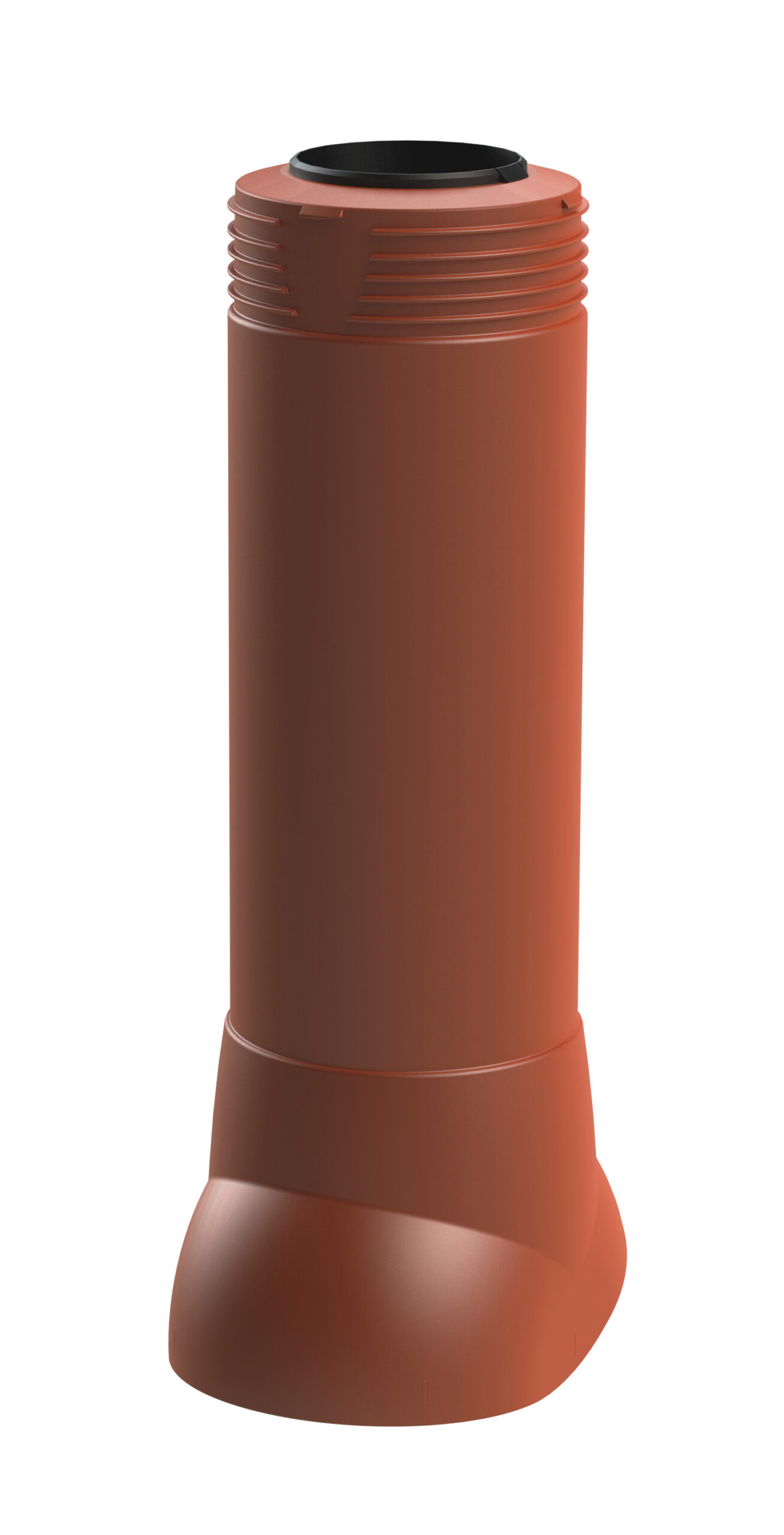

110P/IS/500 Ventilation Pipe

Description: Insulated sewer ventilation pipe without a cowl. VILPE pass-throughs suitable for a range of roofing types and material are available separately.

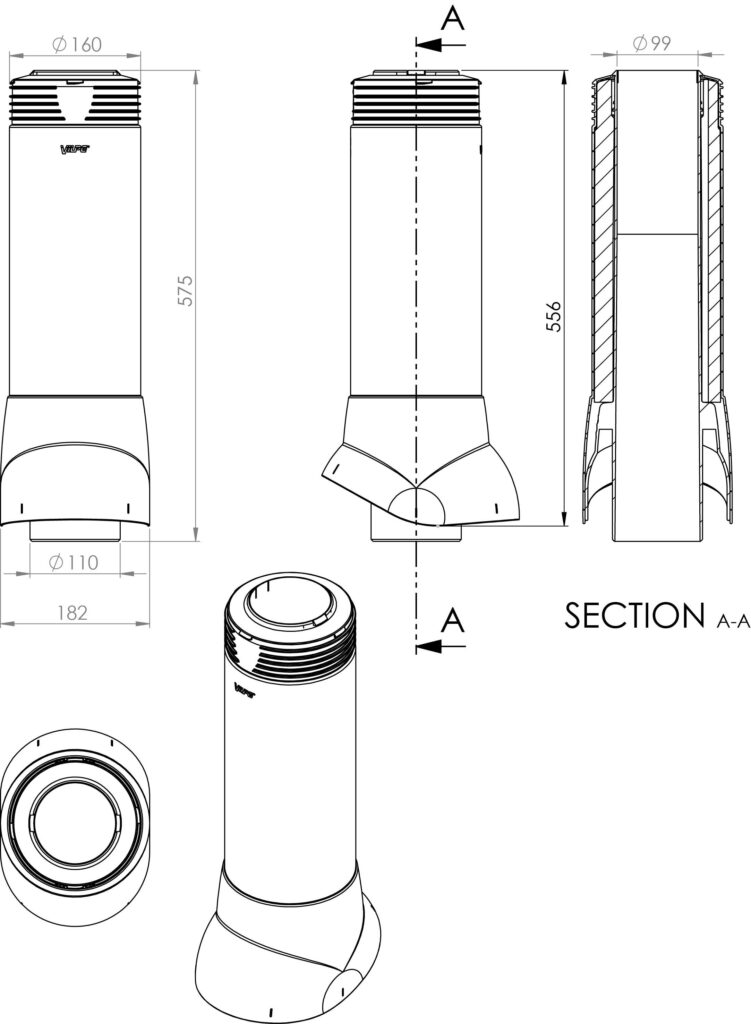

Dimensions: Duct size Ø 110 mm, external Ø 160 mm, height above roof approx. 500 mm.

Contents: Ventilation pipe, screws.
Color
Light Grey
Black
Brown
Blue
Green
Grey
Red
Brick Red
Chocolate Brown
Winered
Anthracite
Product number741661
LVI Code7820131
EAN Code6410457416615
Color Light Grey | RAL7040
Weight Gross: 1.588kg, Net: 1.441kg
Product number74161
LVI Code7813312
EAN Code6417323741611
Color Black | RR33 | RAL9005
Weight Gross: 1.615kg, Net: 1.468kg
Product number741664
LVI Code7813314
EAN Code6410457416646
Color Brown | RR32 | RAL8019
Weight Gross: 1.615kg, Net: 1.468kg
Product number741665
EAN Code6410457416653
Color Blue | RR35 | RAL5007
Weight Gross: 1.614kg, Net: 1.467kg
Product number741666
LVI Code7813318
EAN Code6410457416660
Color Green | RR11 | RAL6020
Weight Gross: 1.615kg, Net: 1.468kg
Product number741667
LVI Code7813319
EAN Code6410457416677
Color Grey | RR23 | RAL7024
Weight Gross: 1.615kg, Net: 1.468kg
Product number741668
LVI Code7813316
EAN Code6410457416684
Color Red | RR29 | RAL3009
Weight Gross: 1.615kg, Net: 1.468kg
Product number741669
LVI Code7813317
EAN Code6410457416691
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.615kg, Net: 1.468kg
Product number74166B
EAN Code6417323850498
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 1.614kg, Net: 1.468kg
Product number74166W
EAN Code6417323850504
Color Winered | RR798 | RAL3005
Weight Gross: 1.614kg, Net: 1.468kg
Product number74166D
LVI Code7820608
EAN Code6410457657490
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 1.615kg, Net: 1.468kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size110 Ø

Download CAD Models

Download DWG-file
7416x-2.dwg
MagiCAD file

Videos

Product categories: Exhaust ventilation pipes, Ventilation pipes
