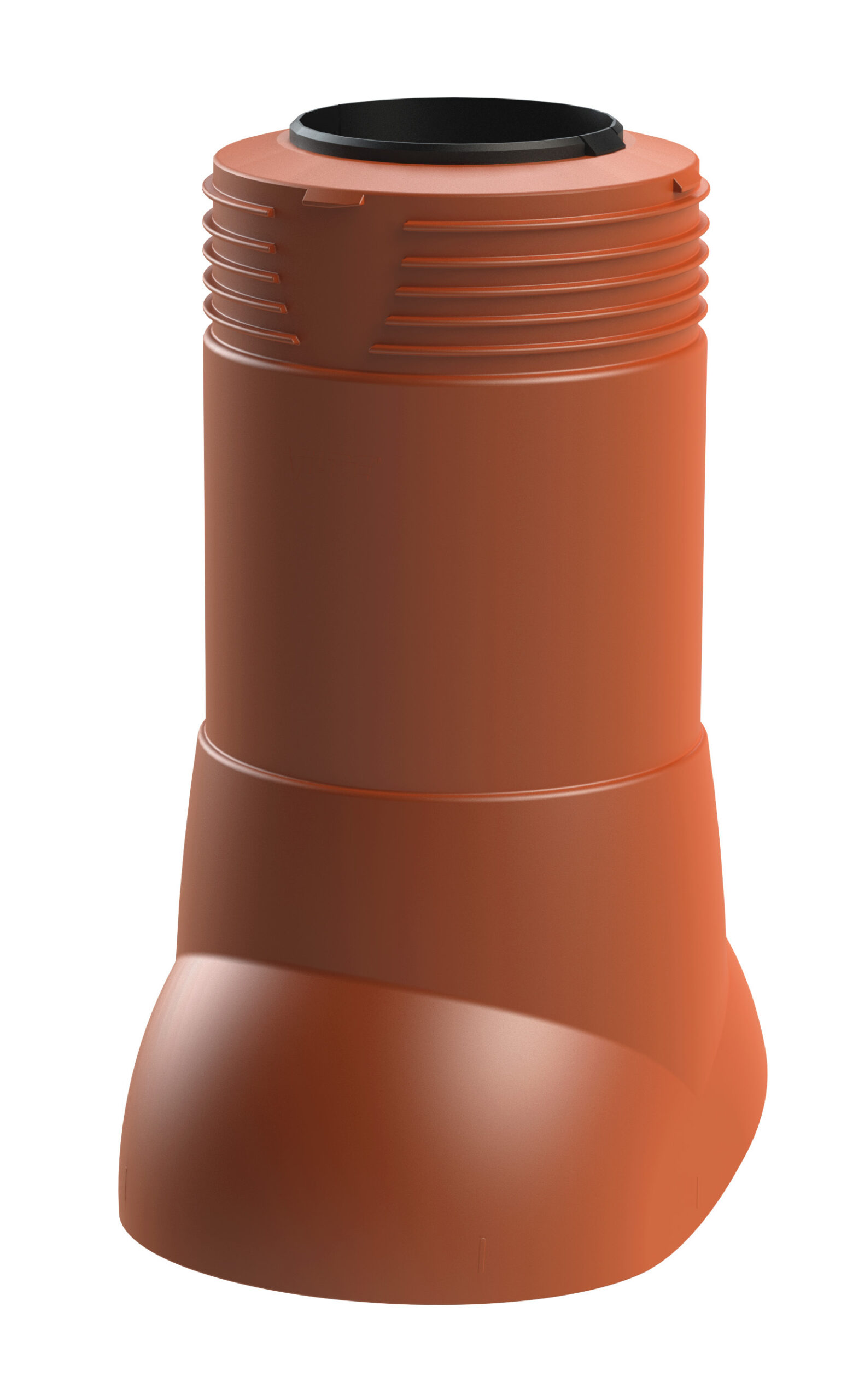

110P/IS/350 Ventilation Pipe

Description: Insulated sewer ventilation pipe without a cowl. Should be installed in a sheet metal cone with a Ø 170 mm opening, made by a tinsmith.

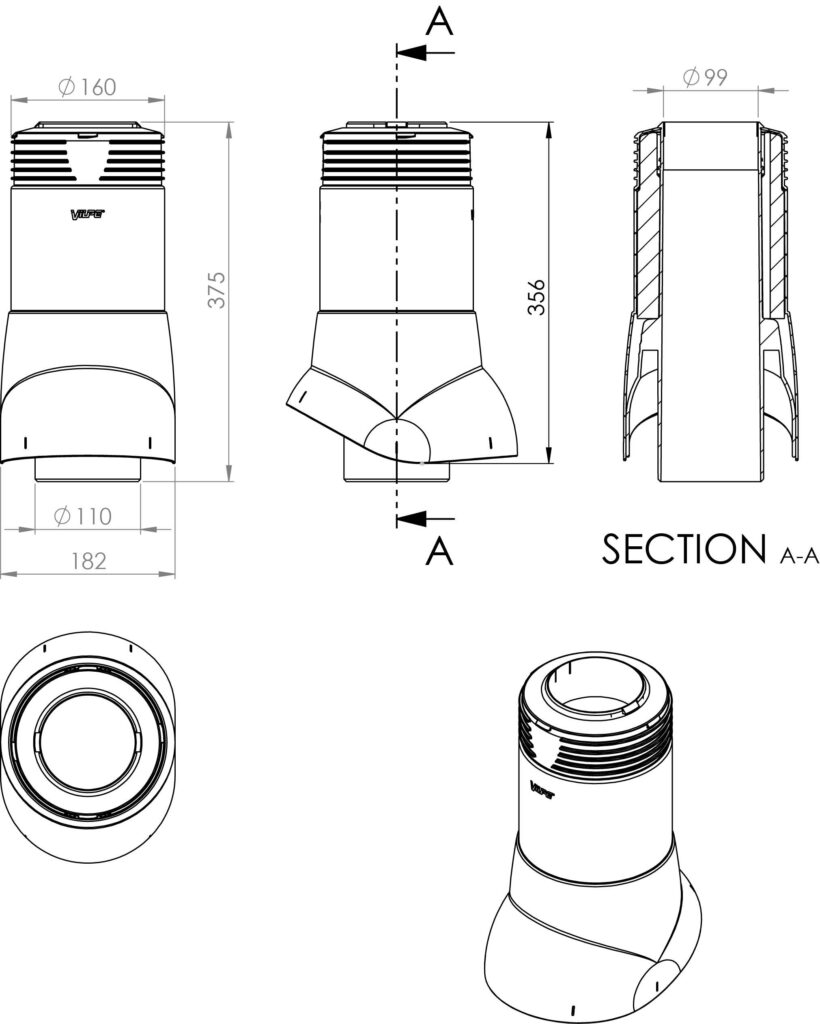

Dimensions: Duct size Ø 110 mm, external Ø 160 mm, height above roof approx. 350 mm.

Contents: Ventilation pipe, screws.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number74132
EAN Code6417323741321
Color Black | RR33 | RAL9005
Weight Gross: 1.194kg, Net: 1.045kg
Product number74134
EAN Code6417323741345
Color Brown | RR32 | RAL8019
Weight Gross: 1.194kg, Net: 1.045kg
Product number74136
EAN Code6417323741369
Color Green | RR11 | RAL6020
Weight Gross: 1.194kg, Net: 1.045kg
Product number74137
EAN Code6417323741376
Color Grey | RR23 | RAL7024
Weight Gross: 1.194kg, Net: 1.045kg
Product number74138
EAN Code6417323741383
Color Red | RR29 | RAL3009
Weight Gross: 1.194kg, Net: 1.045kg
Product number74139
EAN Code6417323741390
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.15kg, Net: 1.001kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size110 Ø

Download CAD Models

Download DWG-file
7413x-2.dwg
MagiCAD file

Videos

Product categories: Exhaust ventilation pipes, Ventilation pipes
