110C/IS/250 Ventilation Pipe

110C/IS/250 Ventilation Pipe

Description: Insulated sewer ventilation pipe without a cowl. Should be installed in a sheet metal cone with a Ø 170 mm opening, made by a tinsmith.
Dimensions: Duct size Ø 110 mm, external Ø 160 mm, height 400 mm.
Contents: Ventilation pipe, screws
Color
Light Grey
Black
Brown
Green
Grey
Red
Brick Red
Product number791101
LVI Code7820060
EAN Code6410457911011
Color Light Grey | RAL7040
Weight Gross: 1.365kg, Net: 1.24kg
Product number791102
LVI Code7814902
EAN Code6410457911028
Color Black | RR33 | RAL9005
Weight Gross: 1.392kg, Net: 1.267kg
Product number791104
LVI Code7814904
EAN Code6410457911042
Color Brown | RR32 | RAL8019
Weight Gross: 1.392kg, Net: 1.267kg
Product number791106
LVI Code7814906
EAN Code6410457911066
Color Green | RR11
Weight Gross: 1.403kg, Net: 1.373kg
Product number791107
LVI Code7814907
EAN Code6410457911073
Color Grey | RR23 | RAL7024
Weight Gross: 1.396kg, Net: 1.271kg
Product number791108
LVI Code7814908
EAN Code6410457911080
Color Red | RR29 | RAL3009
Weight Gross: 1.379kg, Net: 1.253kg
Product number791109
LVI Code7814909
EAN Code6410457911097

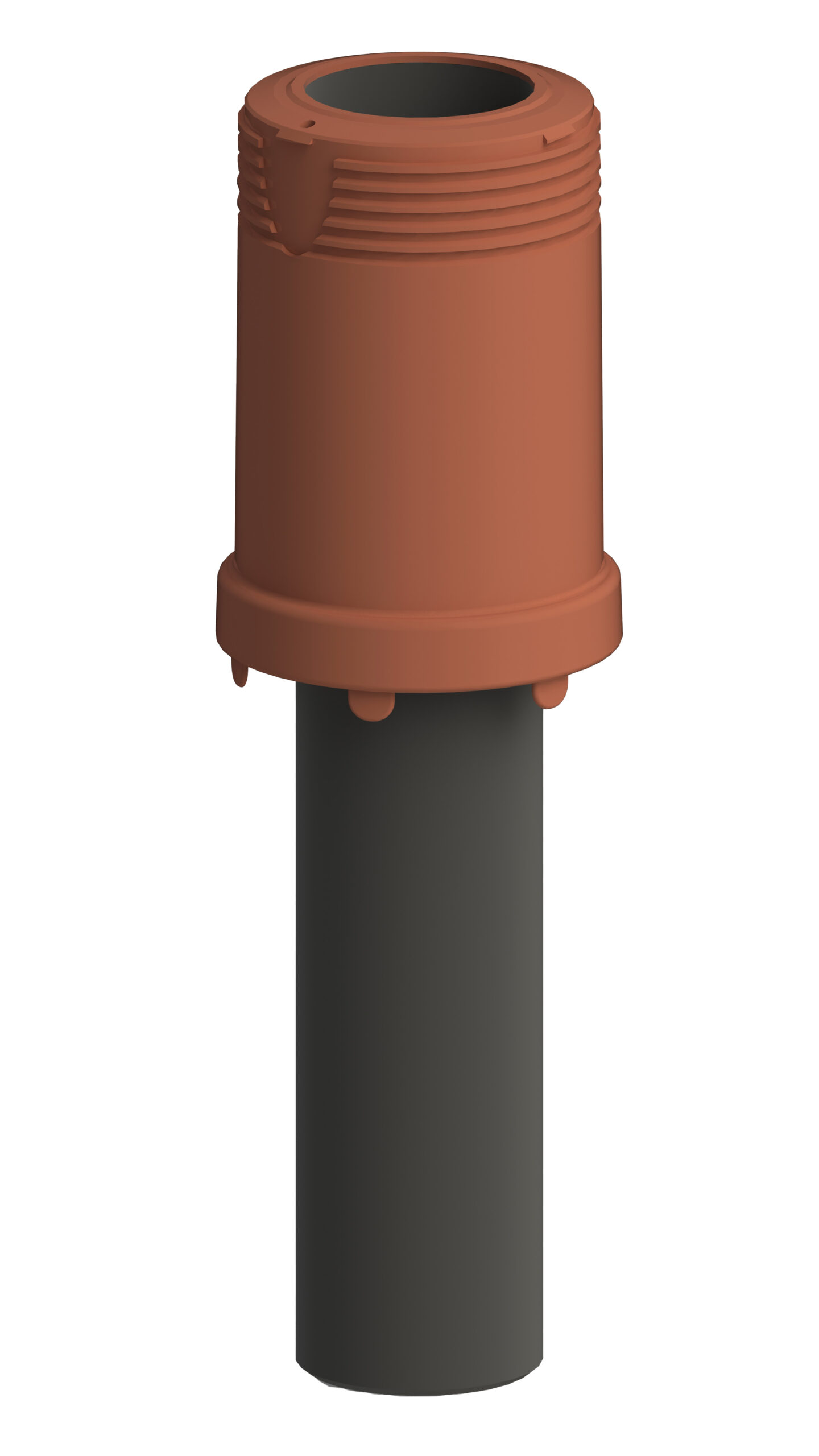

Color Brick Red | RR750 | RAL8004
Weight Gross: 1.379kg, Net: 1.253kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size110 Ø

Download CAD Models

Download DWG-file
79110x.dwg
MagiCAD file
Product categories: Exhaust ventilation pipes, Ventilation pipes
