Pass-throughs for for solar collector pipings, cables or other smaller pipes

VILPE Solar pass-throughs provide a professional and secure solution to allow the pipelines of solar collectors and other small pipes, cables or electrical wires to be safely and discreetly passed through the roof. Solar pass-throughs include a pre-attached coupling ring as well as a flange, a cover, a shrinking tube and the screws needed for installation. They are available for felt, steel and tile roofing, and come in a wide range of colours. The cover of the Solar pass-through is detachable, which facilitates any service procedures which might need to be conducted on the pipes. The flange and the cover can also be turned sideways up to 90 degrees from the direction of the pipes. This facilitates the installation process and ensures that it is conducted safely. Find the right product for your needs below.
Read the FAQ

Show all products

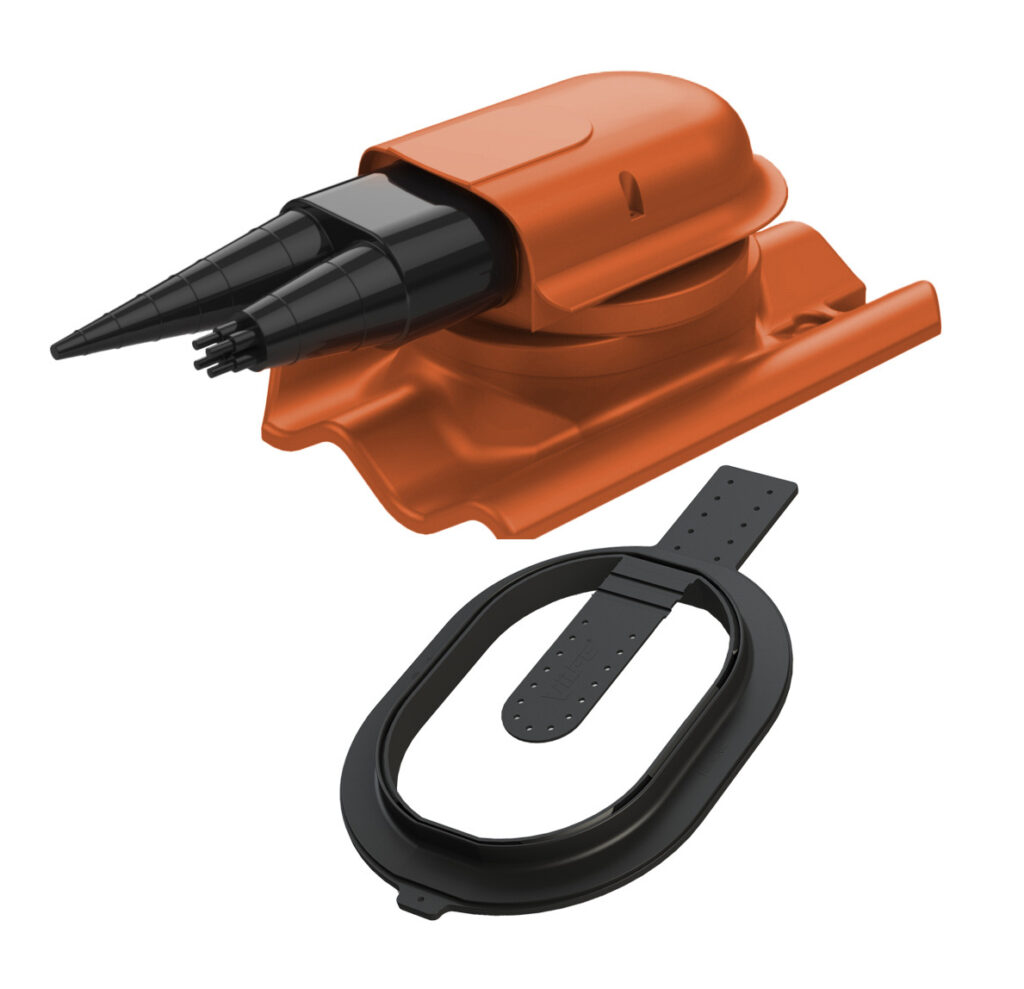

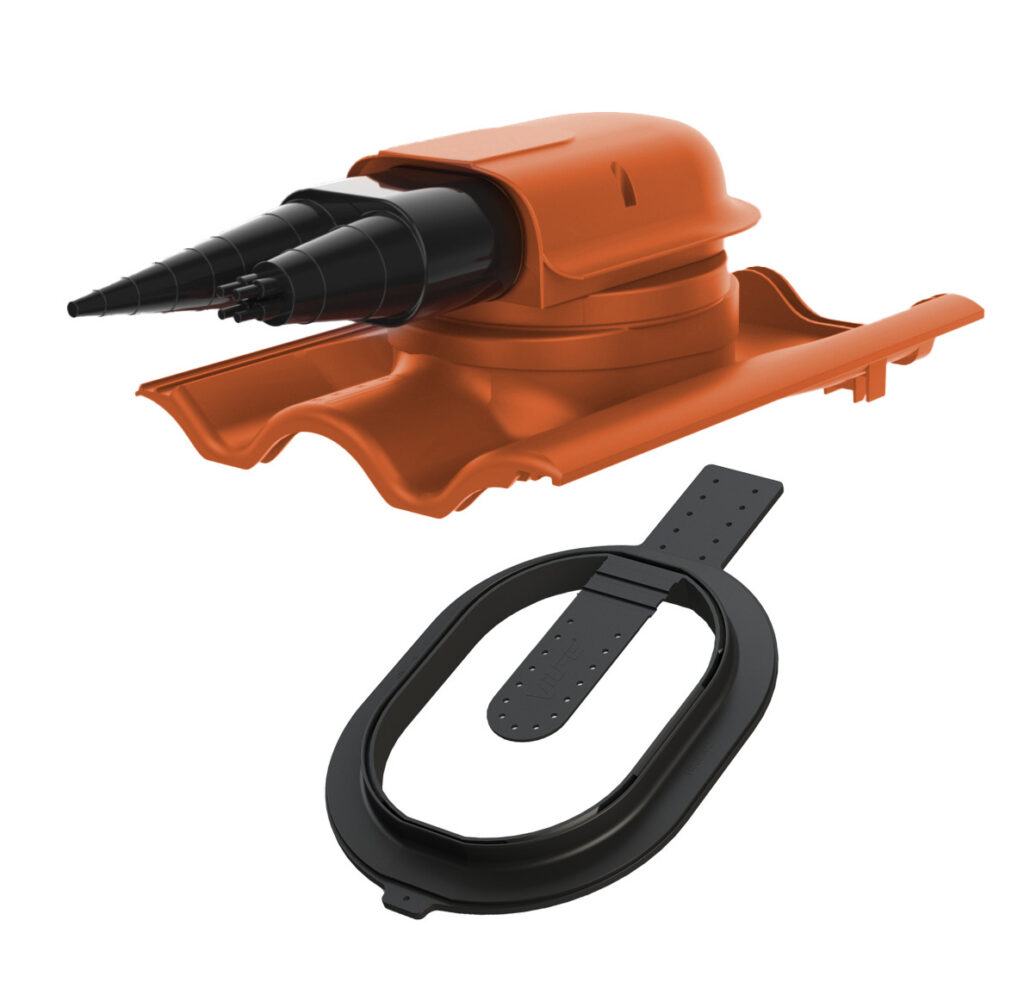

SOLAR TILE CLICK PASS-THROUGH

For the most common concrete tile roofings with tile width of 330 mm.

Replaces one 2-wave concrete tile.

Includes a Click underlay seal for easier installation.

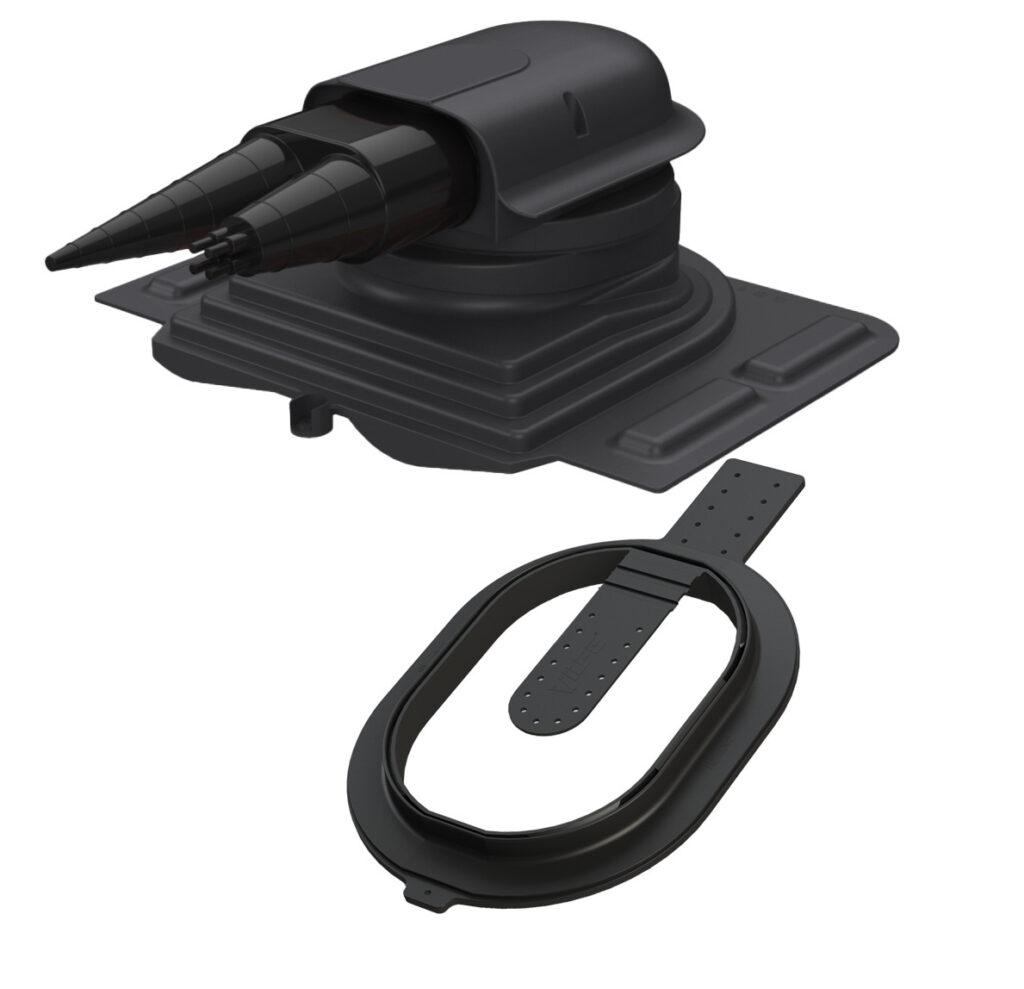

SOLAR UNITILE CLICK PASS-THROUGH

For all tile roofings (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles as well as plain tiles).

Includes a Click underlay seal for easier installation.

SOLAR VITTINGE CLICK PASS-THROUGH 2-WAVED T11

For Vittinge clay tile roofings.

Includes a Click underlay seal for easier installation.

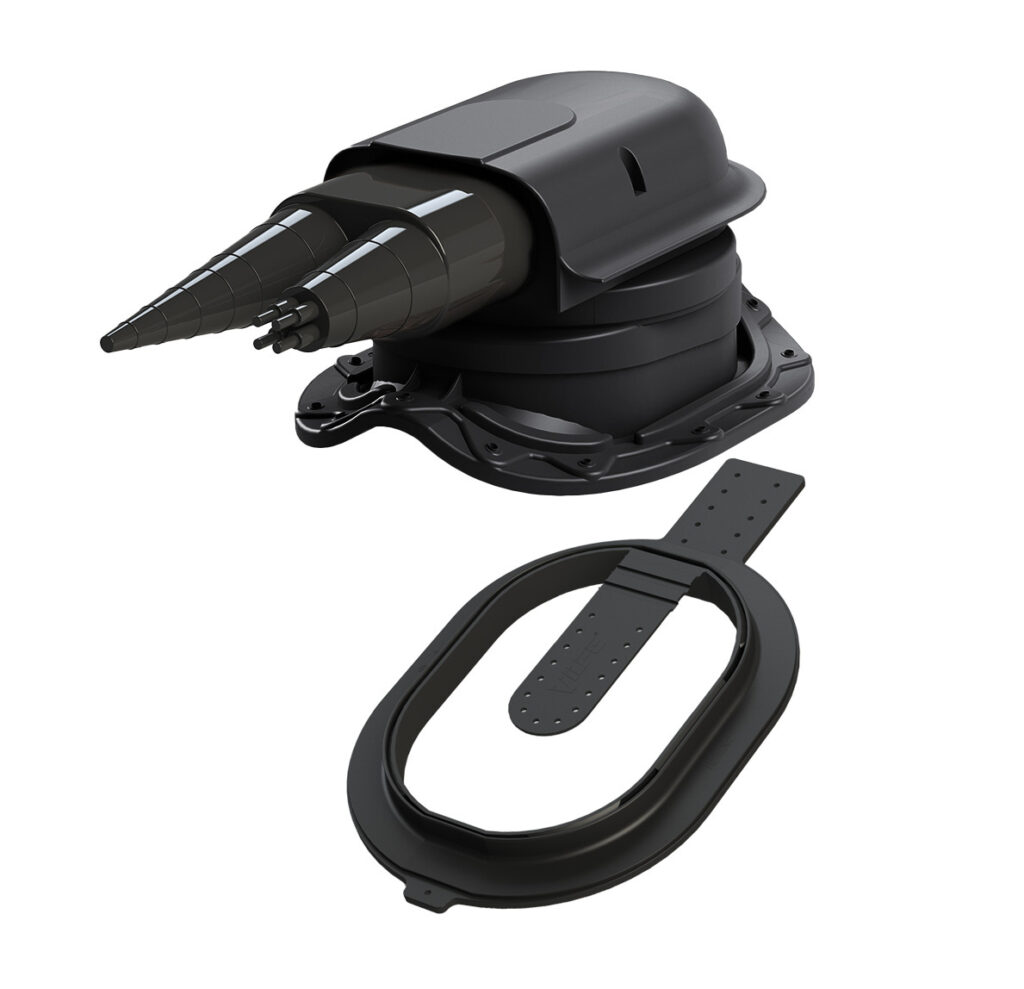

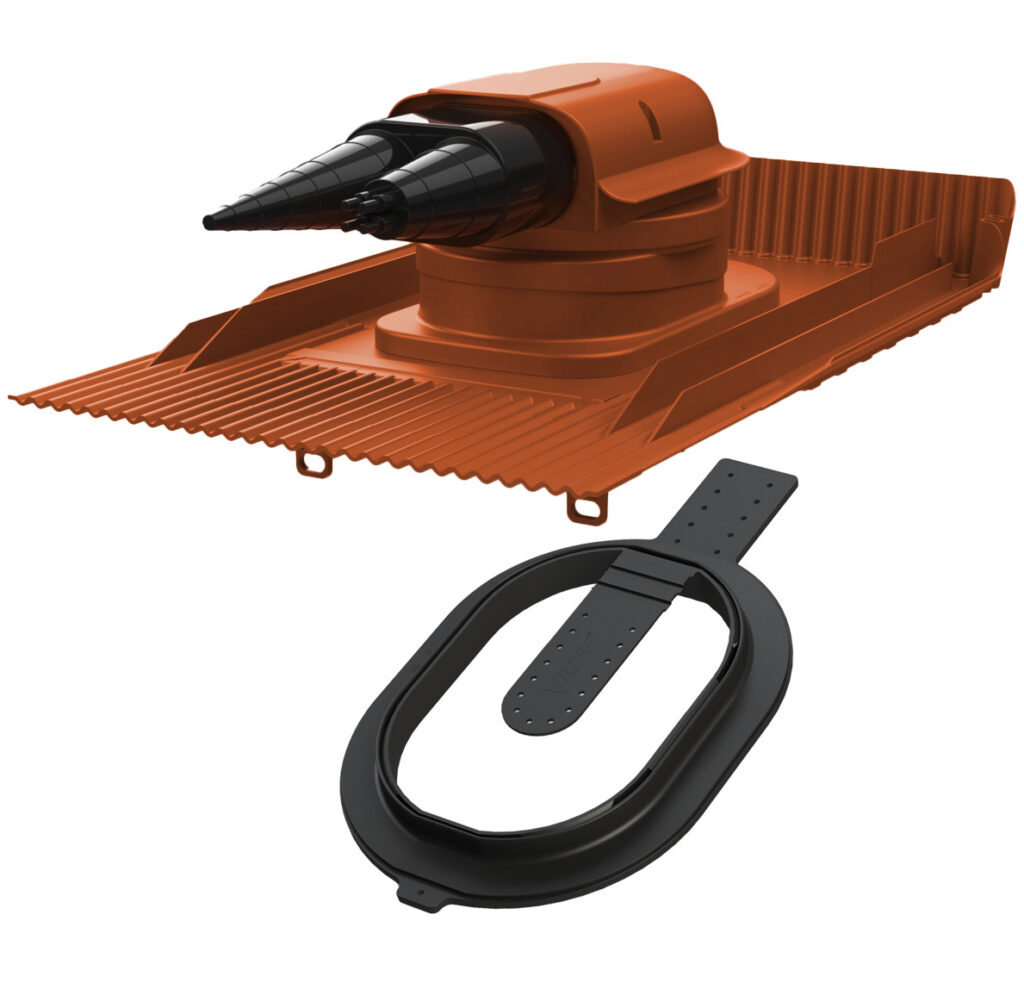

SOLAR PROFILED STEEL CLICK PASS-THROUGH

For all round profiled metal sheet roofings (with roof tile pattern).

Minimum length of tile pattern is 350 mm.

Includes a Click underlay seal for easier installation.

SOLAR CLASSIC CLICK PASS-THROUGH

For plain standing seam roofings.

Includes a Click underlay seal for easier installation.

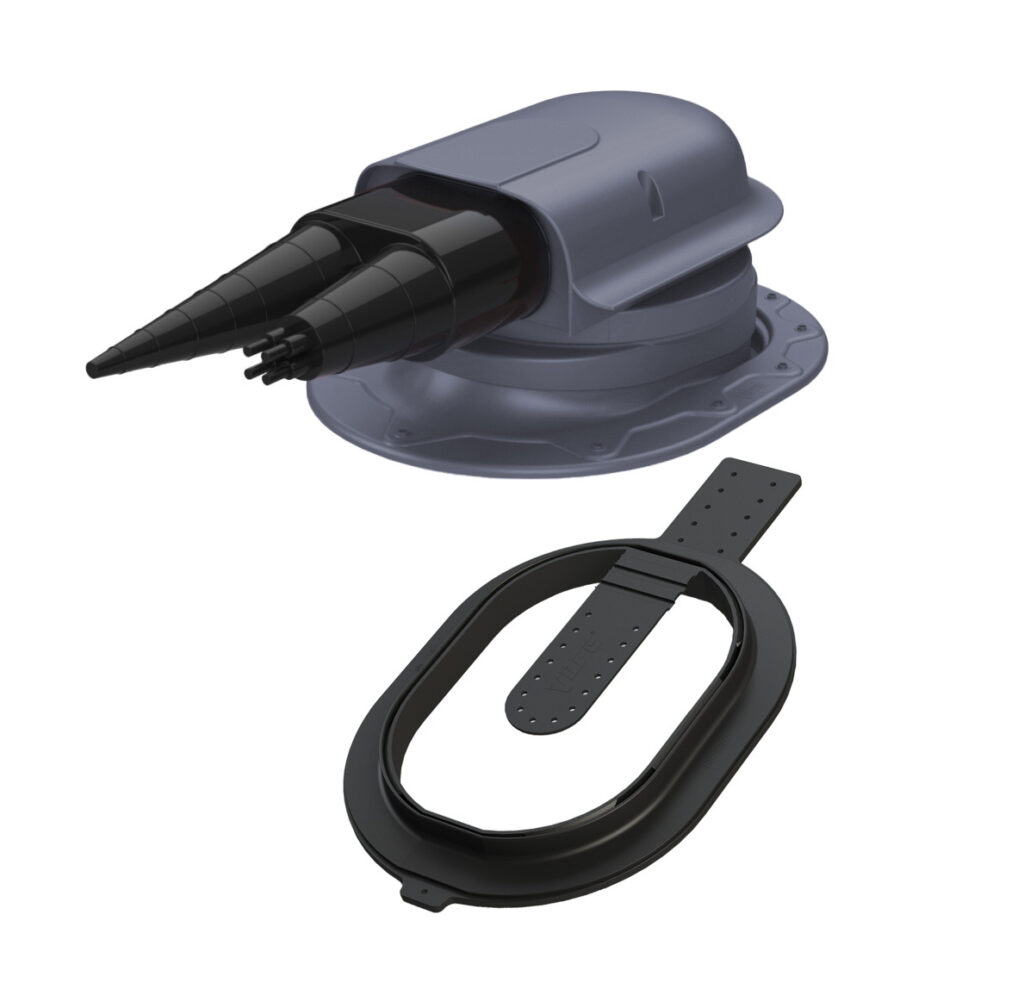

SOLAR STEEL CLICK PASS-THROUGH

Description: Low profiled metal sheet roofing. Waterproof thanks to the rubber cone with the mouldable aluminium flange. Used for passing pipes and cables from solar panels and solar collectors through the roof covering. Contents: Pass-through, Click underlay seal, flange, cover, cable sealing, screws, installation instructions/templates for the underlay seal and the pass-through.

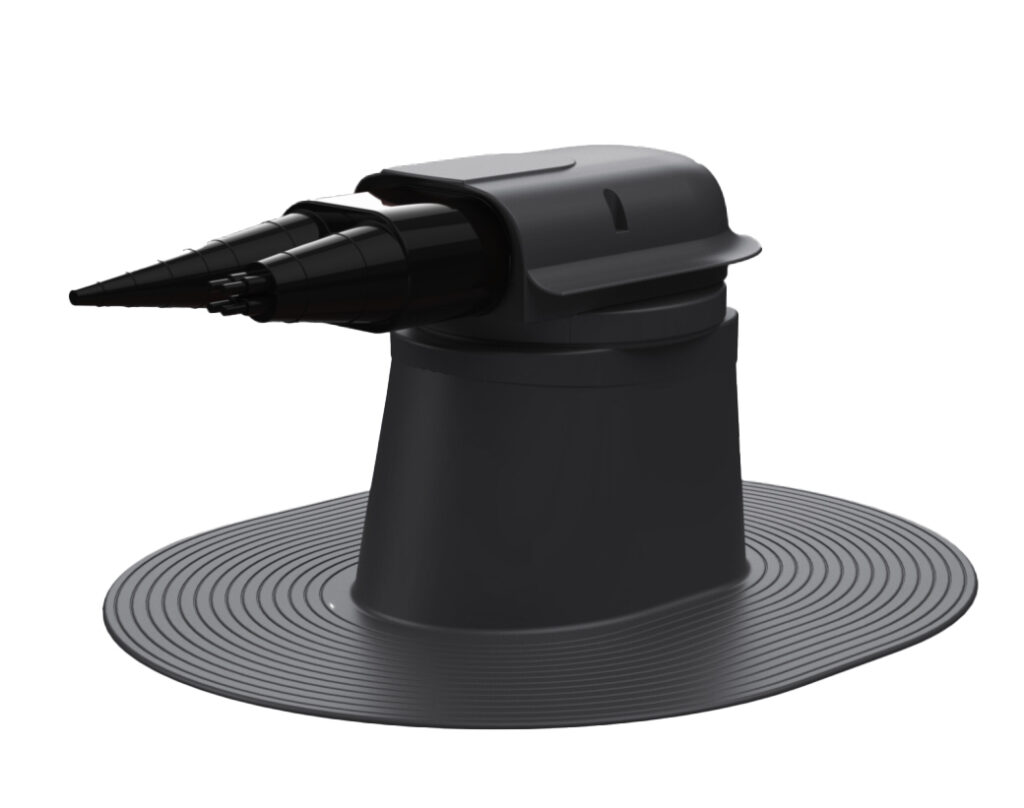

SOLAR FELT TALL PASS-THROUGH SET

Suitable for bitumen membrane roofs when the roof pitch is less than 1:5 (11.5 degrees).

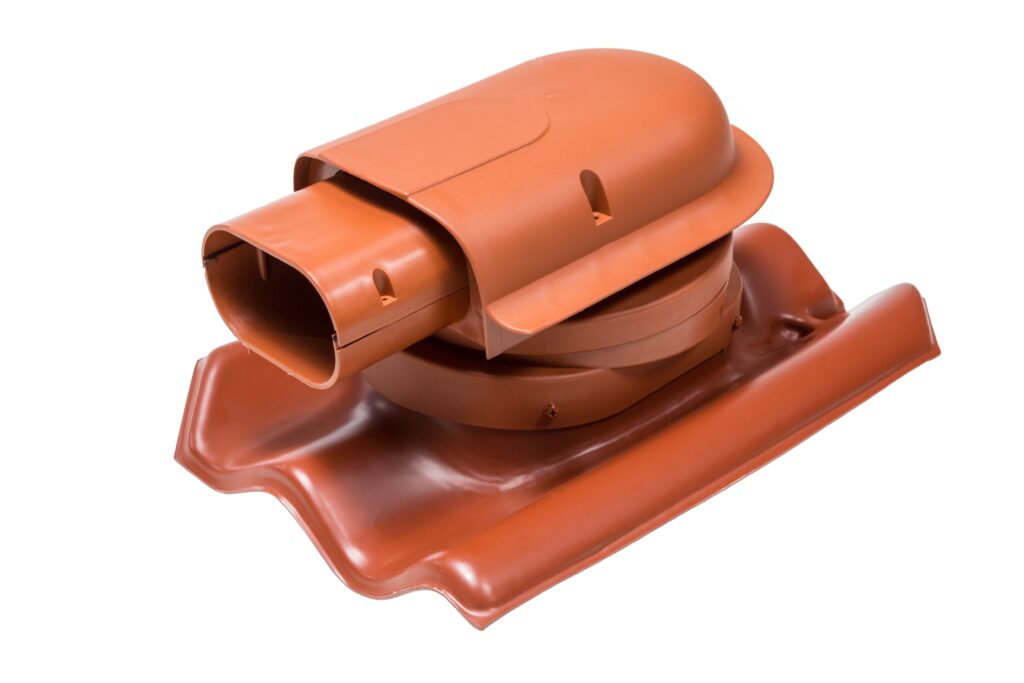

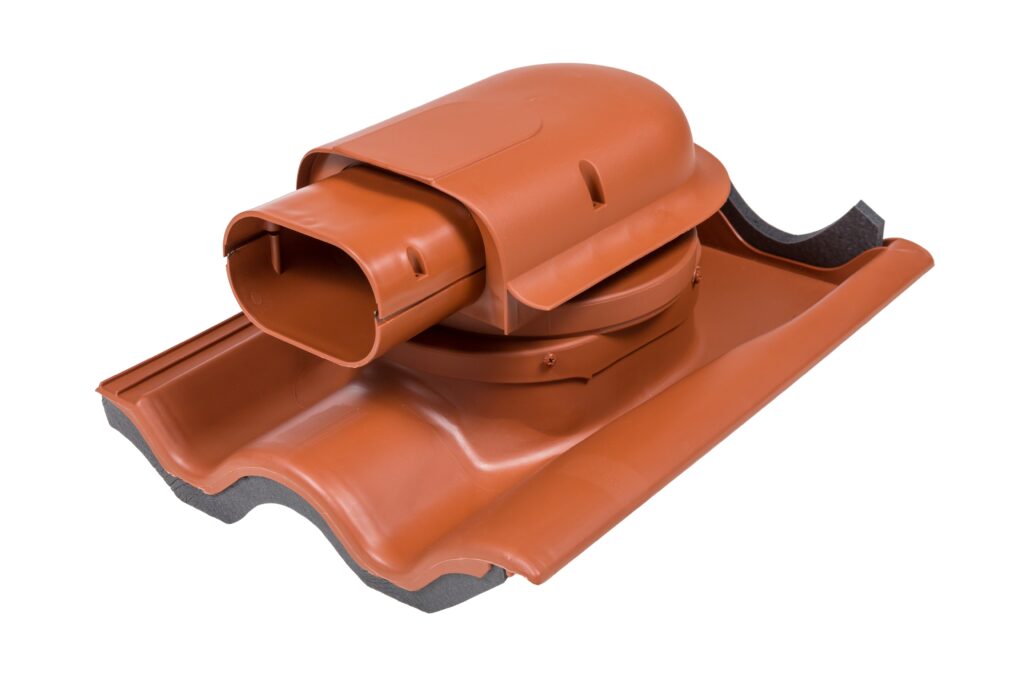

Solar Tile Pass-Through

For most common concrete tile roofs (replaces one 2-wave concrete tile with a width of 330 mm and a wave height of 27-40 mm)

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

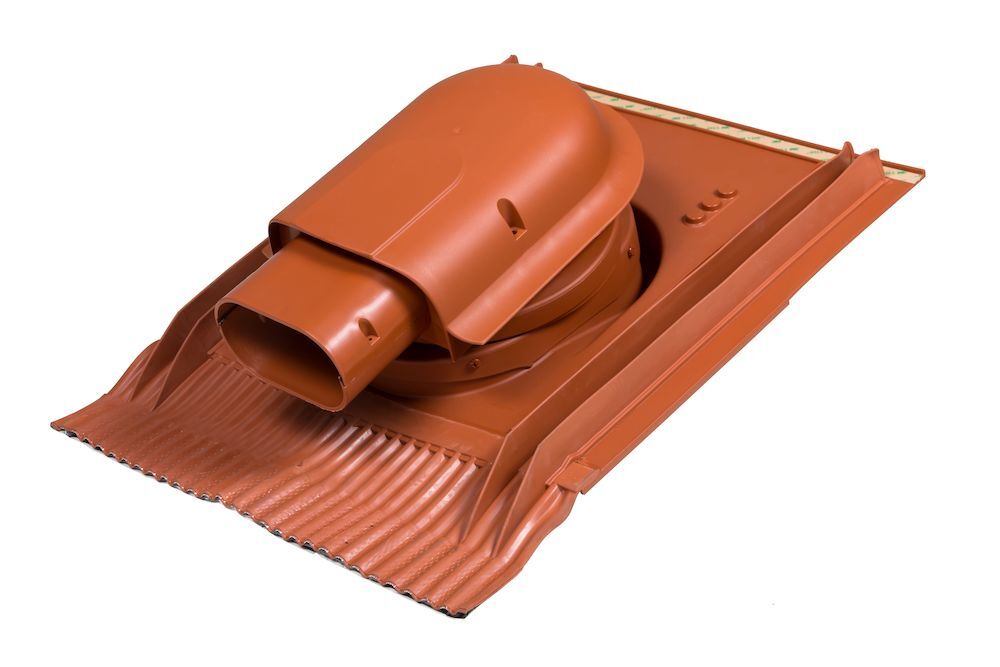

Solar Unitile Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

Solar Profiled Steel Pass-Through

For round-profile sheet metal roofs (minimum profiled roof tile length 350 mm)

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

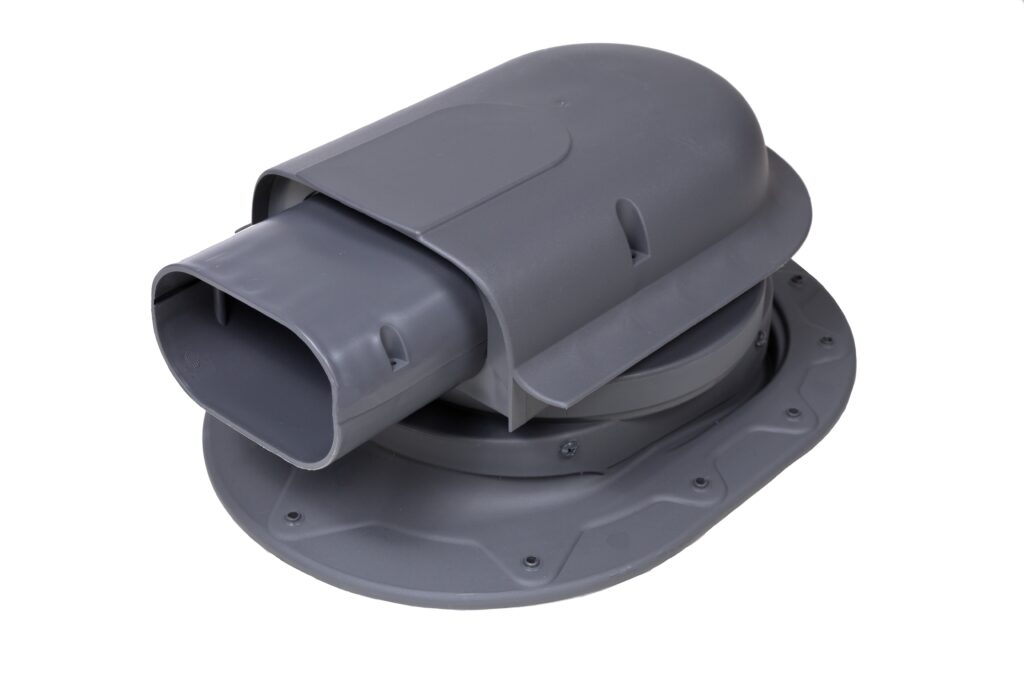

Solar Steel Pass-Through

For low-profile sheet metal roofs; not suitable for high-angular profiles

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

Solar Classic Pass-Through

For plain standing seam roofs or felt roofs (if retrofitted)

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

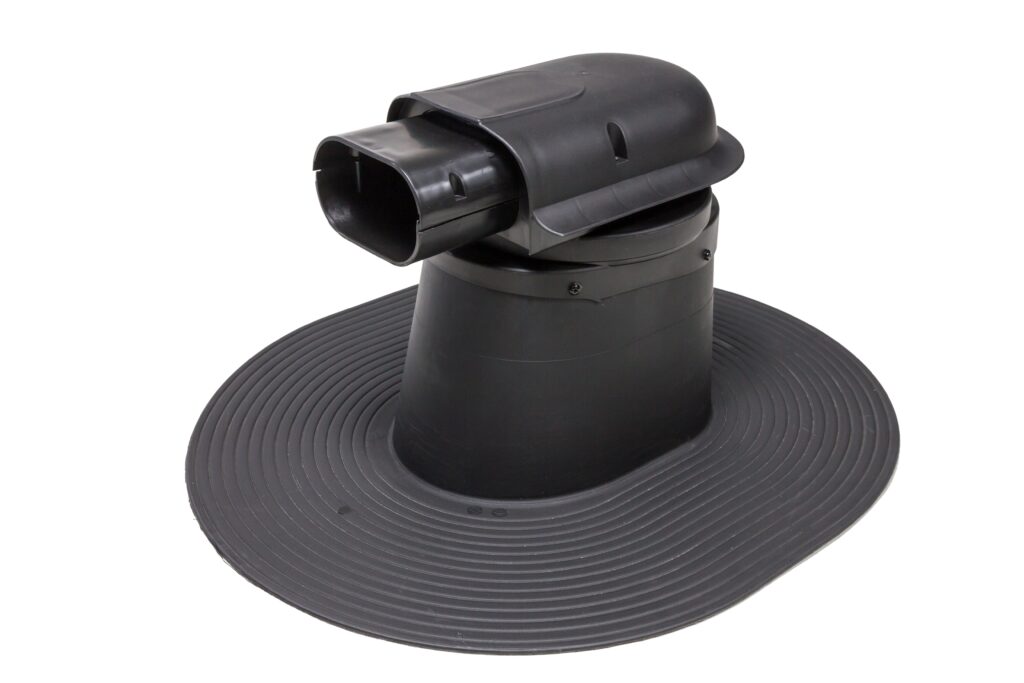

Solar Tall Felt Pass-Through

For felt roofs with a pitch of less than 1:5 (11.5 degrees)

Detachable cover facilitates service of the pipes

Flange and cover can be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier

Solar Cable Sealing

Separately-available rubber sealing for VILPE^® Solar pass-throughs; made of tough and flexible technical rubber material

Fully waterproof, and used to lead Ø 4–50 mm wires and cables through a roof

Attaches to a Solar pass-through with the included weatherproof fastener
