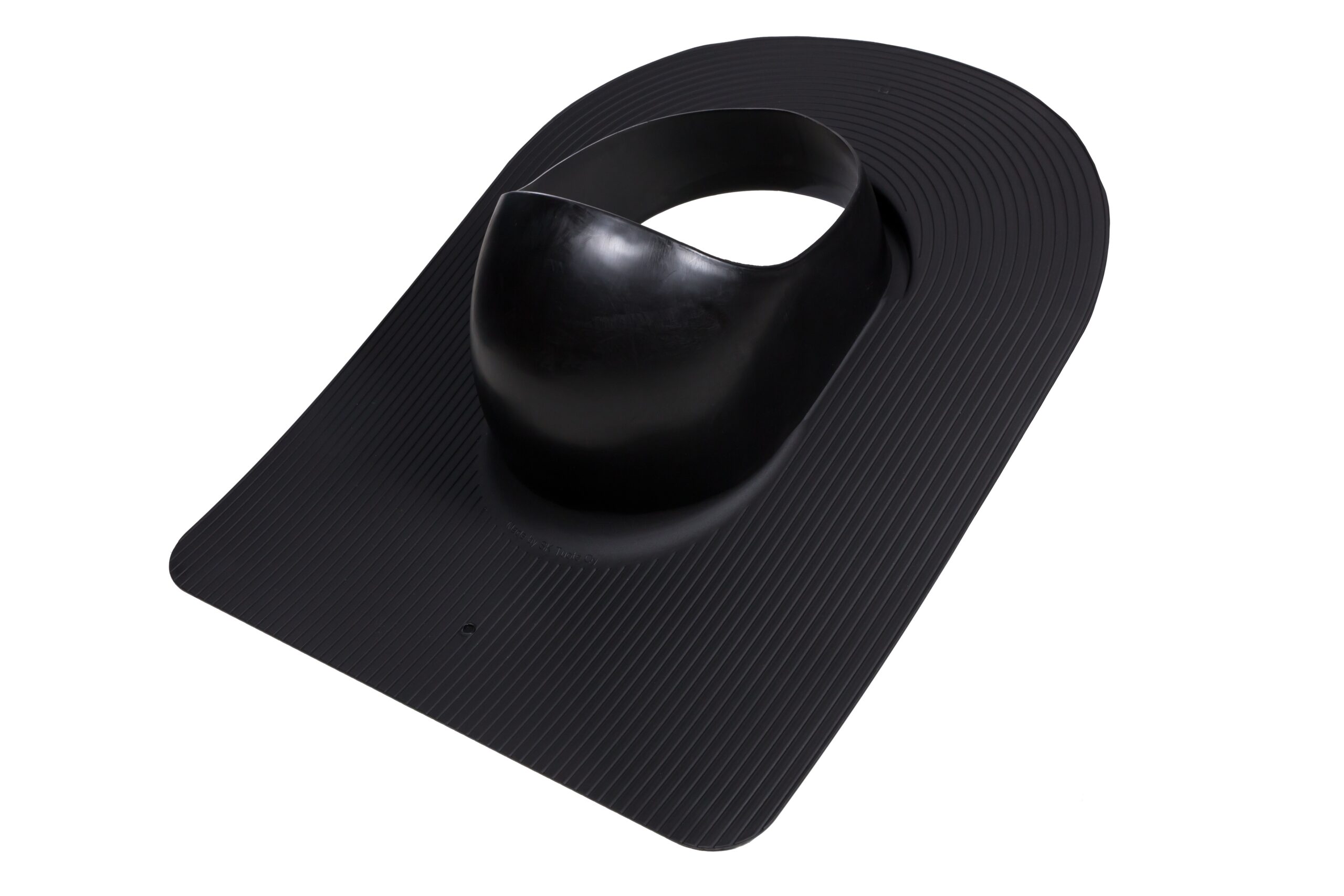

XL FELT PASS-THROUGH

XL FELT PASS-THROUGH

Description: For felt roofs. Should be installed between two felt layers. Installing the VILPE XL Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes.

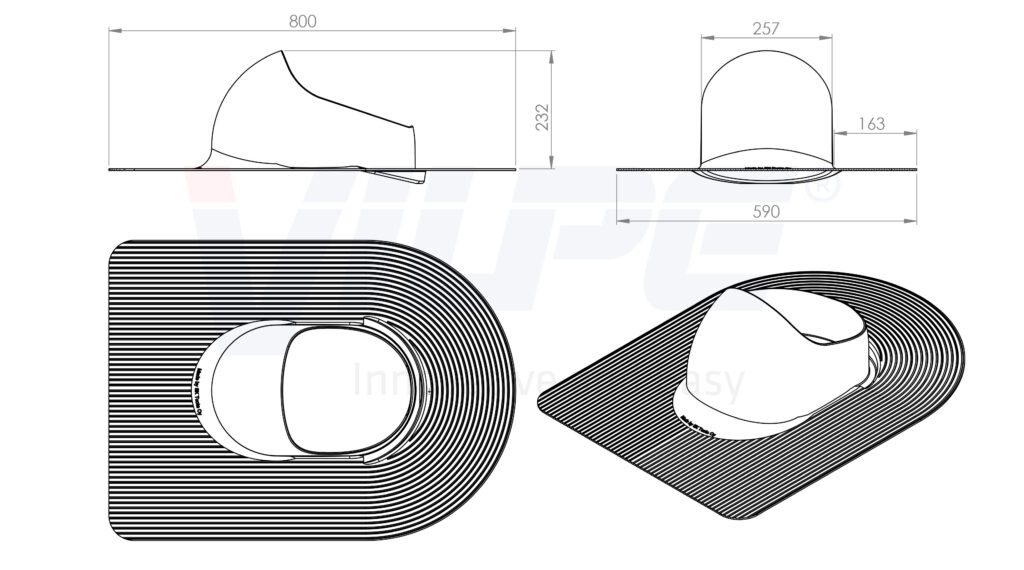

Dimensions: Flange width 150 mm.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.
Color
Black
Brown
Grey
Product number740042
LVI Code7813632
EAN Code6410457400423
Color Black | RR33 | RAL9005
Weight Gross: 1.855kg, Net: 1.58kg
Product number740044
LVI Code7813634
EAN Code6410457400447
Color Brown | RR32 | RAL8019
Weight Gross: 1.855kg, Net: 1.58kg
Product number740047
LVI Code7813637
EAN Code6410457400478
Color Grey | RR23 | RAL7024
Weight Gross: 1.855kg, Net: 1.58kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø16011.5°-47°
Pipe Ø20011.5°-48°
Pipe Ø25011.5°-45°

Download CAD Models

Download DWG-file
74004x.dwg
MagiCAD file

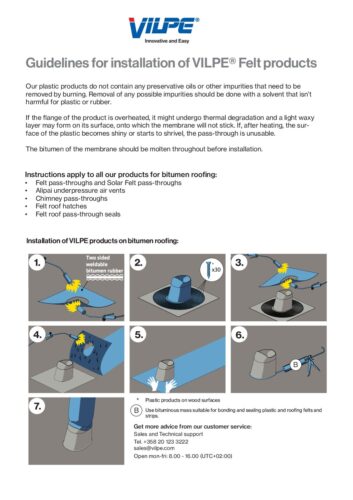

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Pass-throughs, Pass-throughs for felt roofing
