SOLAR CLASSIC CLICK PASS-THROUGH

SOLAR CLASSIC CLICK PASS-THROUGH

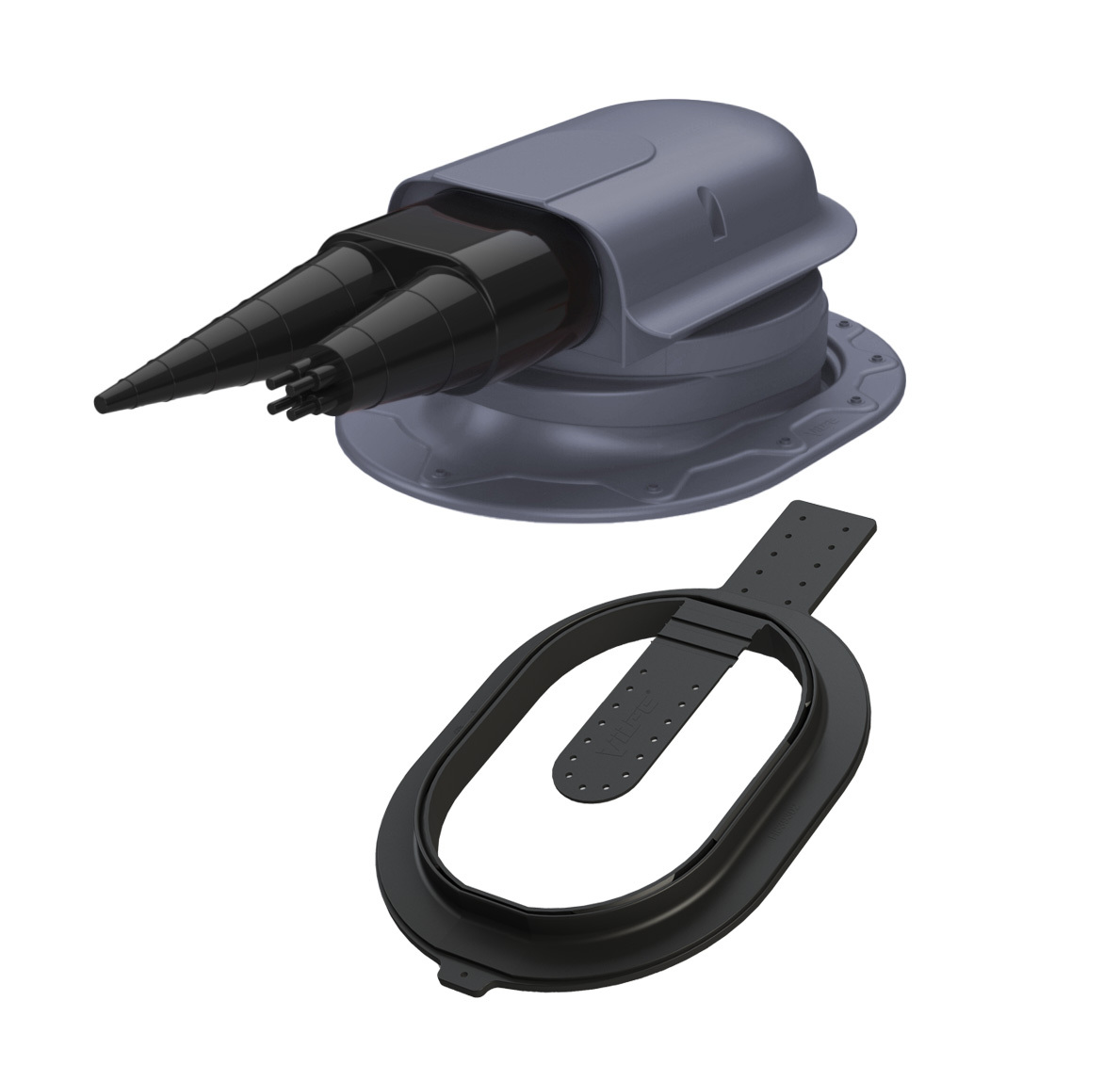

Description: For plain standing seam roofings. Retrofittable. Thick rubber seal under the flange. Used for passing pipes and cables from solar panels and solar collectors through the roof covering.
Rubber sealing for VILPE Solar pass-throughs, made of tough and flexible technical rubber material. Fully waterproof, and used to lead Ø 4–50 mm wires and cables through a roof. Attaches to a Solar pass-through with a weatherproof fastener.

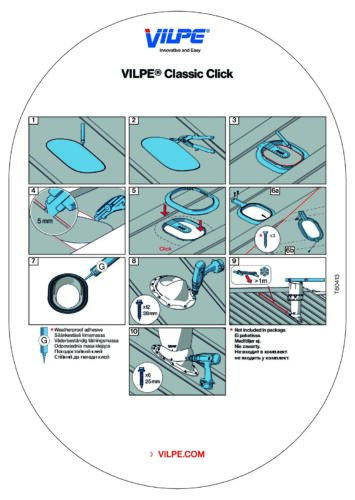

Contents: Pass-through, Click underlay seal, flange, cover, cable sealing, screws, templates/installation instructions.
Color
Black
Grey
Anthracite
Product number360212
LVI Code7820712
EAN Code6410457660445
Color Black | RR33 | RAL9005
Weight Gross: 2.074kg, Net: 1.794kg
Product number360217
LVI Code7820713
EAN Code6410457660452
Color Grey | RR23 | RAL7024
Weight Gross: 2.074kg, Net: 1.794kg
Product number36021D
EAN Code6410457726141
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 1.739kg, Net: 1.459kg
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-55°
Pipe Ø12511.5°-55°
Pipe Ø16011.5°-48°
Roof MaterialSteel

Download CAD Models

Download DWG-file
360212-7562x.dwg

Materials & Installation
