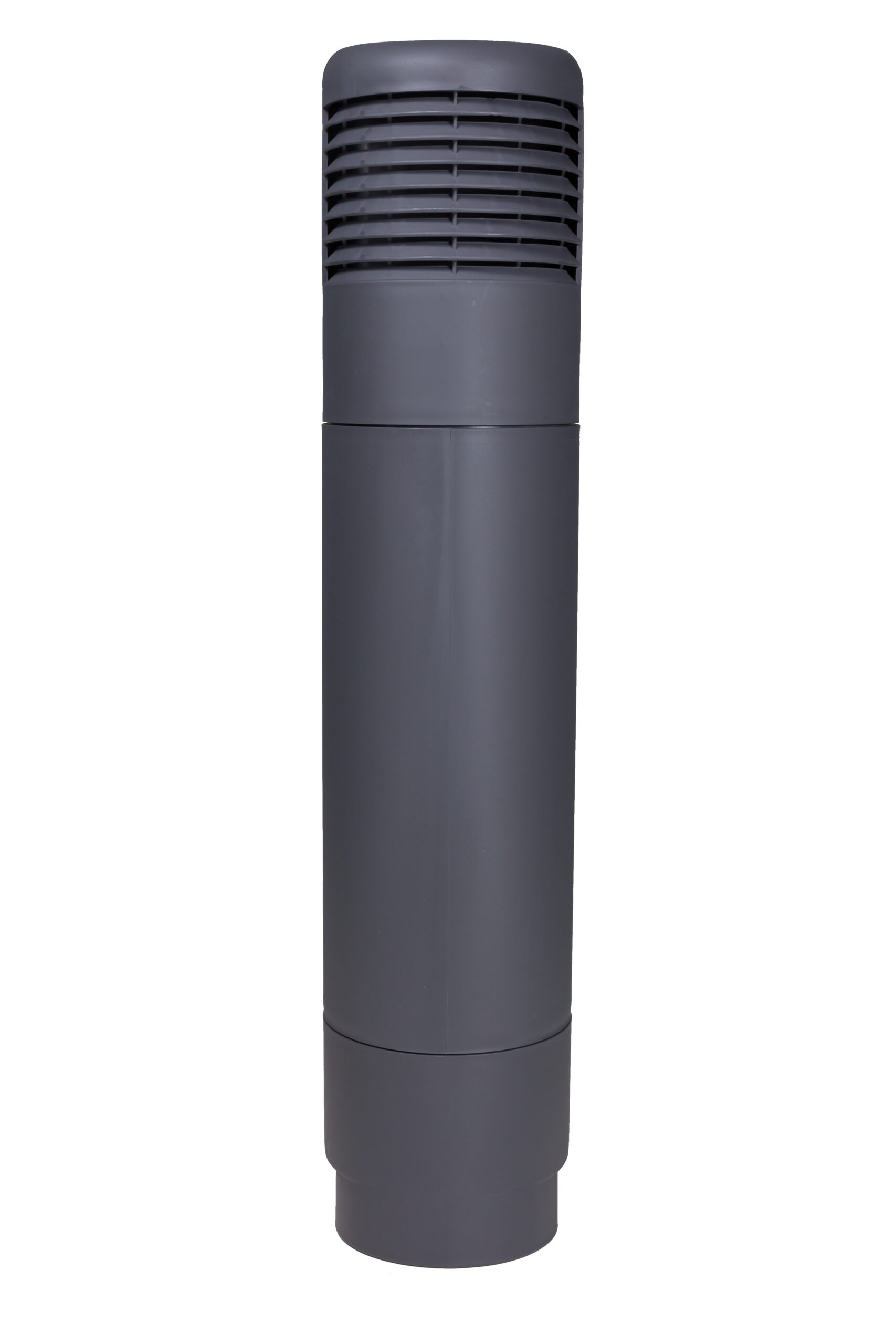

Ross Renovation Set 160/160

With the Ross renovation set, an old vertical pipe in an underfloor space can be easily renovated and the ventilation improved. Thanks to the cowl of the Ross ventilation pole, no harmful airlock can be created. The adapter is used to connect the Ross ventilation pole to the vertical part of the old ventilation pipe in the underfloor space either above or below the ground. For a better appearance, the adapter should be installed below the ground. The Ross adaptor 160/160 should be installed between a Ross-160 and a 160 mm pipe.

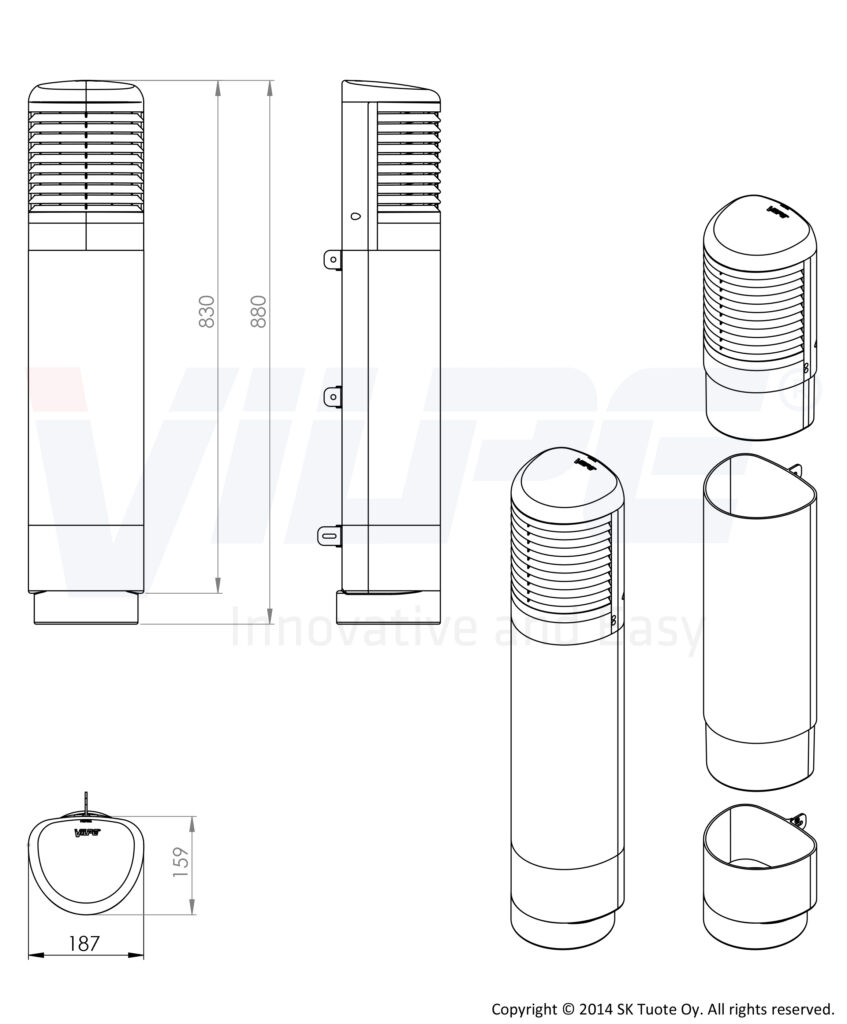

Dimensions: Ø 160 mm.

Contents: Cowl, vertical pipe, wall fastenings with screws, adaptor.

Color
Light Grey
Black
Grey
Red
Off White
Beige
Product number790681
LVI Code7814681
EAN Code6410457906819
Color Light Grey
Weight Gross: 2.487kg, Net: 2.019kg
Product number790682
LVI Code7814682
EAN Code6410457906826
Color Black | RR33 | RAL9005
Weight Gross: 2.487kg, Net: 2.019kg
Product number790687
LVI Code7814687
EAN Code6410457906871
Color Grey | RR23 | RAL7015
Weight Gross: 2.487kg, Net: 2.019kg
Product number790688
LVI Code7814688
EAN Code6410457906888
Color Red | RR29 | RAL3009
Weight Gross: 2.487kg, Net: 2.019kg
Product number790690
LVI Code7814690
EAN Code6410457906901
Color Off White
Weight Gross: 2.487kg, Net: 2.019kg
Product number790691
LVI Code7814691
EAN Code6410457906918
Color Beige | RR30
Weight Gross: 2.487kg, Net: 2.019kg
