R-Felt Set

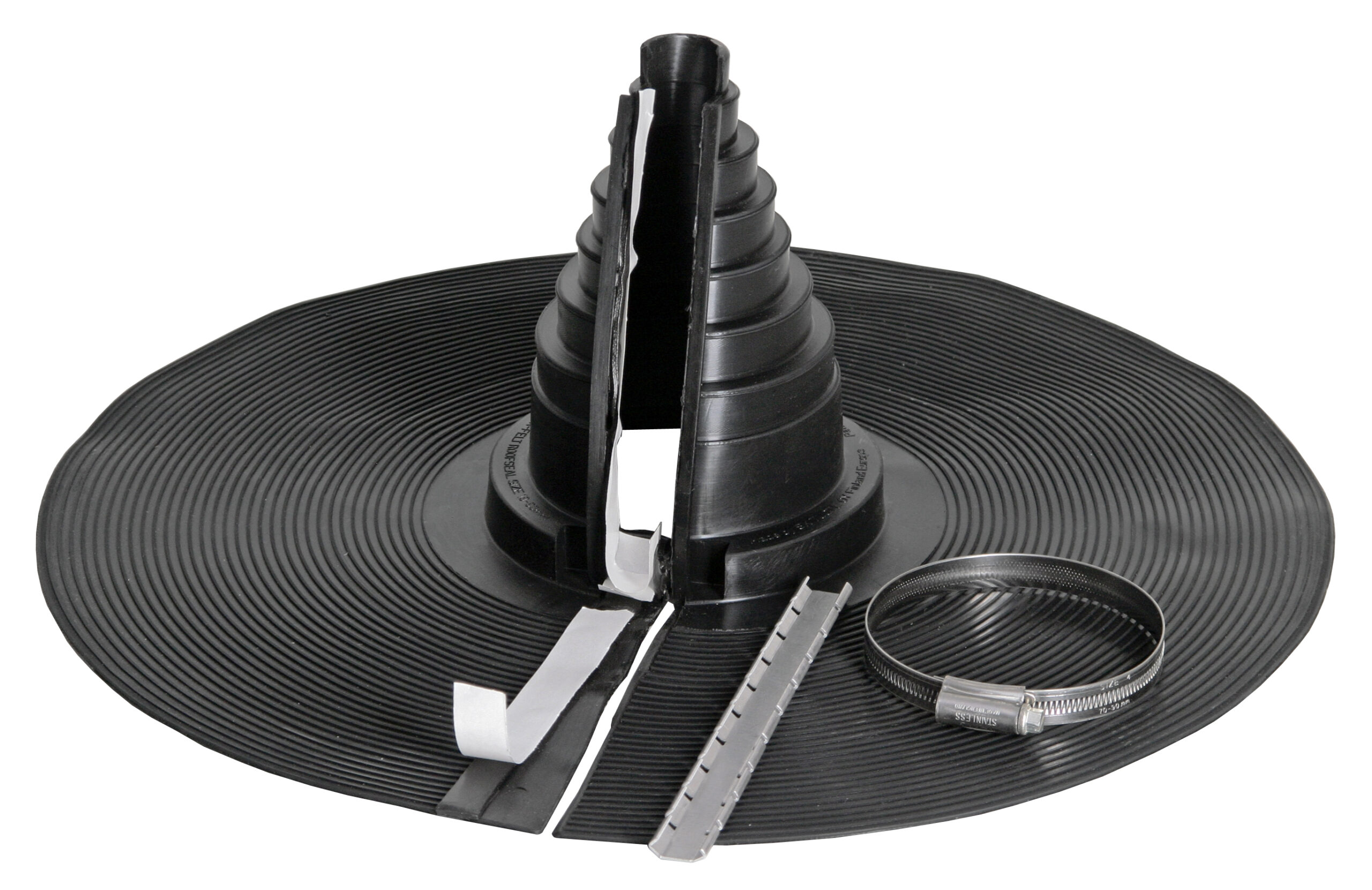

Description: Pass-through seal for round pipes installed on a felt roof while retrofitting. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope) Contents: Seal, clamp.

Model
Ø 19-90 mm
Ø 110-170 mm
Ø 160-250 mm

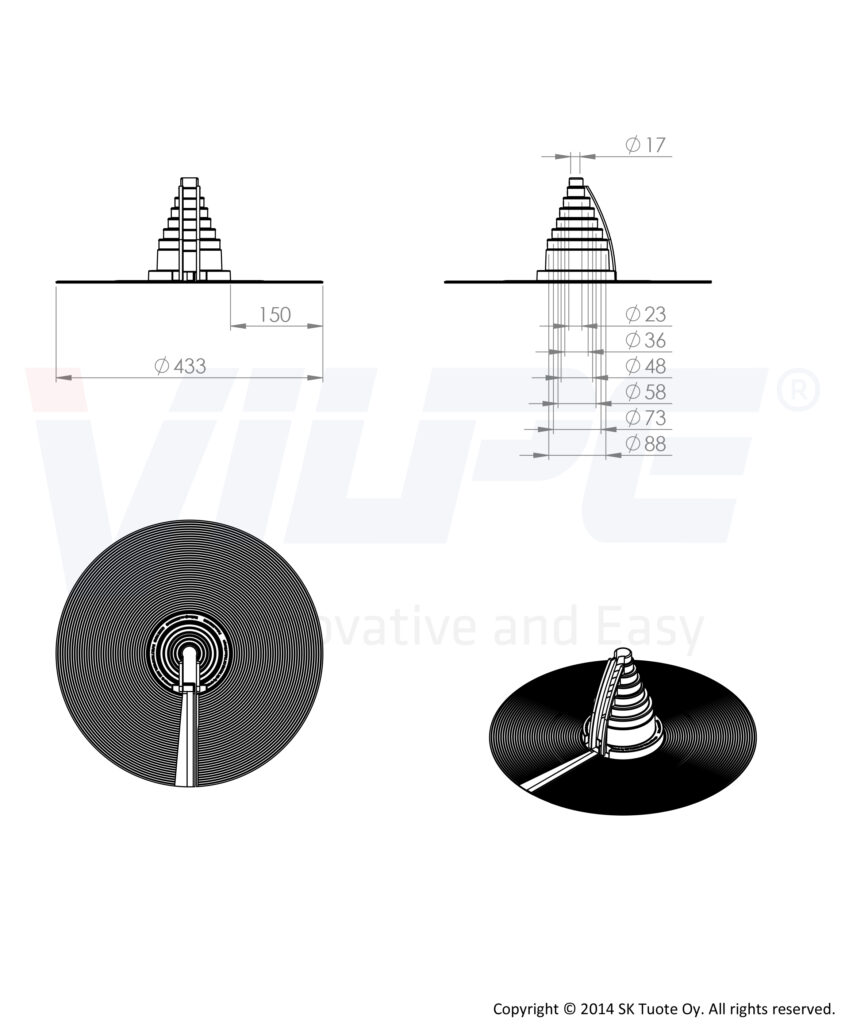

ModelØ 19-90 mm
Product number70510
LVI Code7813340
EAN Code6417323705101
Weight Gross: 0.99kg, Net: 0.785kg

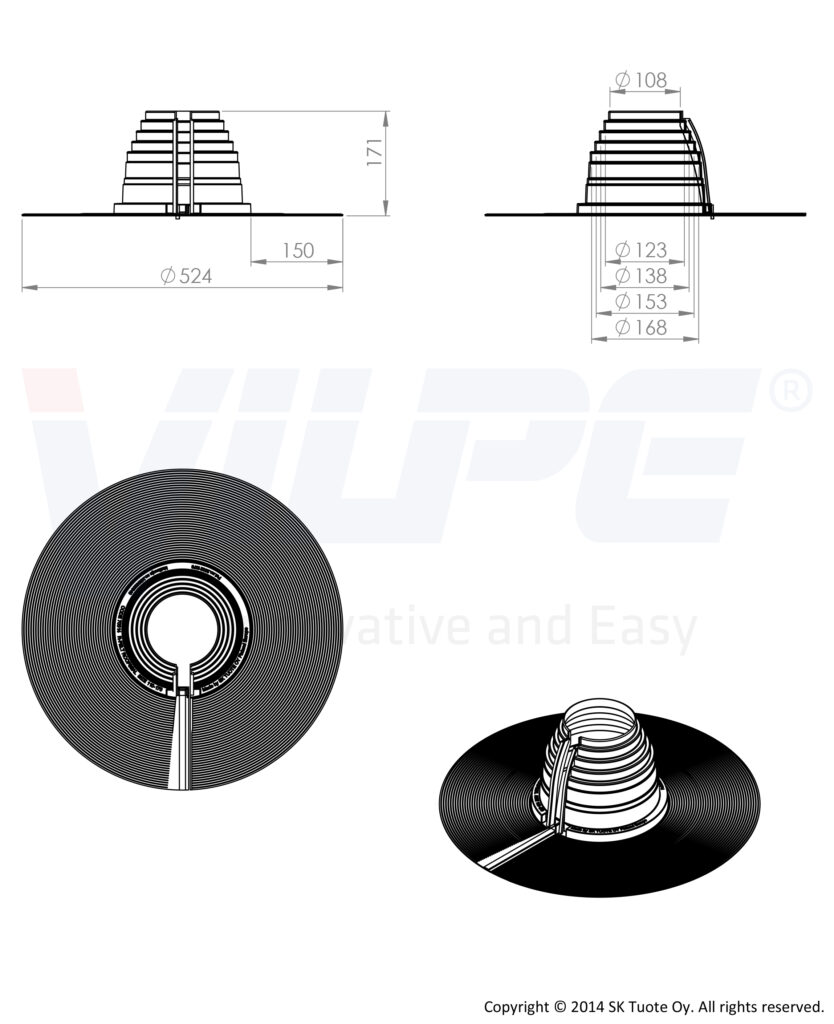

ModelØ 110-170 mm
Product number70514
LVI Code7813339
EAN Code6417323705149
Weight Gross: 1.015kg, Net: 0.785kg

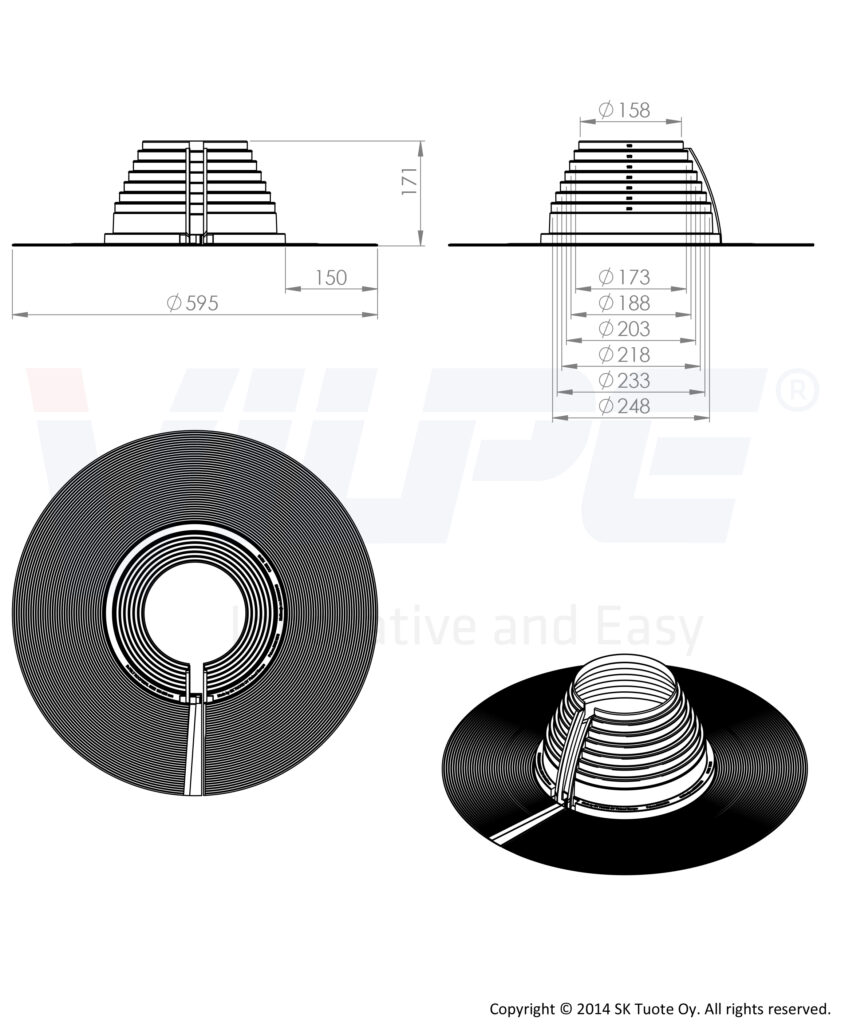

ModelØ 160-250 mm
Product number70518
LVI Code7813341
EAN Code6417323705187
Weight Gross: 1.705kg, Net: 1.273kg
