PVC Roof Seal

Description: Optimal for sealing round pipes on PVC roofs. Examples of applications are ventilation discharge pipes, roof poles, sewerage vent pipes, signboard or flagpole bases, aerial sleeves, the external suspension tie-rods of the roof as well as railings. Made of coloured polyvinyl chloride (PVC). Should be installed with hot air welding. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: For duct sizes Ø 12-100 mm and 110-160 mm. Contents: PVC seal, stainless steel clamp.

Model
Ø 12-100 mm light grey
Ø 12-100 mm dark grey
Ø 110-160 mm light grey
Ø 110-160 mm dark grey
ModelØ 12-100 mm light grey
Product number70601
EAN Code6417323706016
Color Light Grey
Weight Gross: 0.512kg, Net: 0.45kg

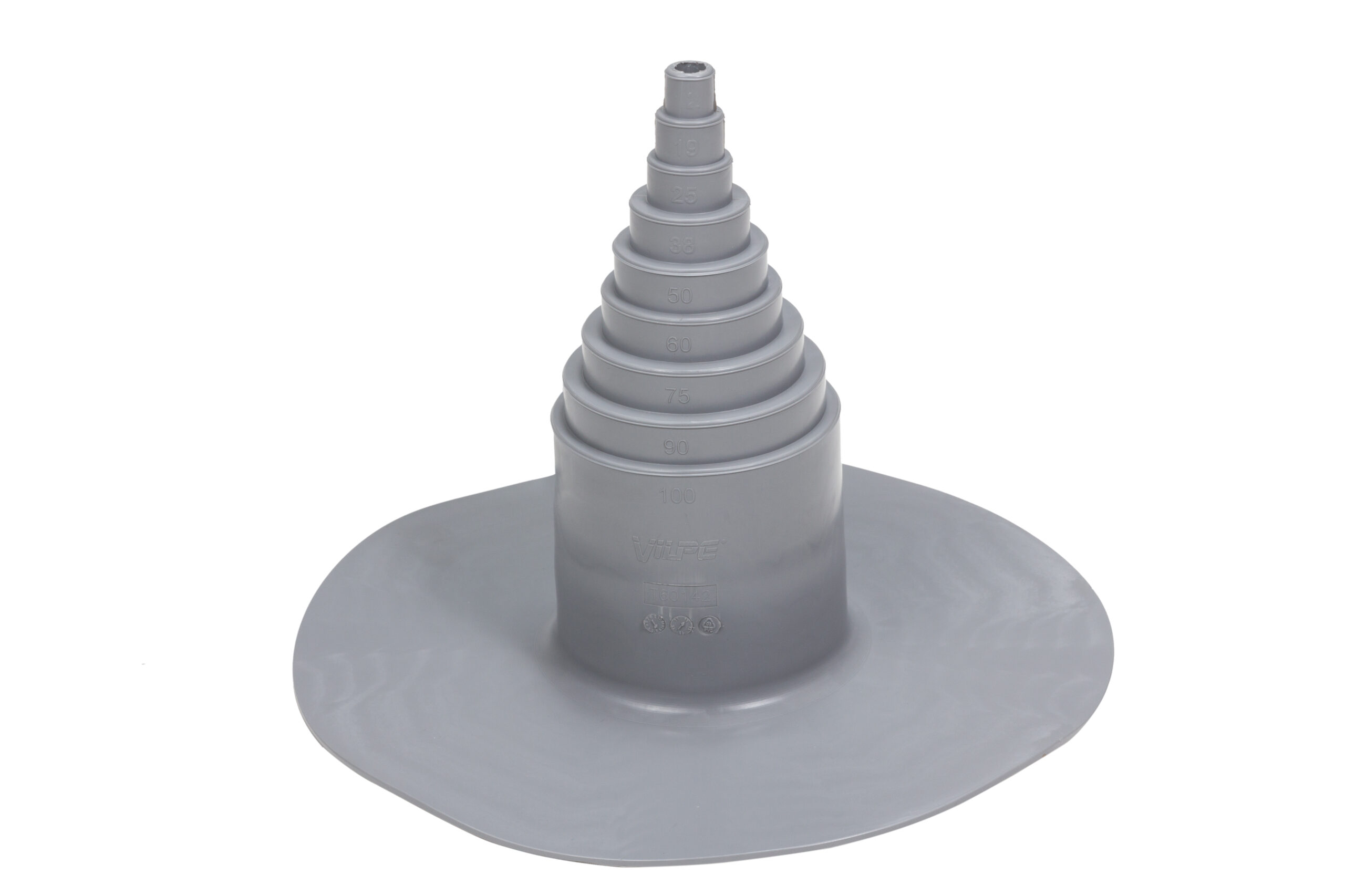

ModelØ 12-100 mm dark grey
Product number70602
EAN Code6417323706023
Color Dark grey
Weight Gross: 0.512kg, Net: 0.45kg
ModelØ 110-160 mm light grey
Product number70611
EAN Code6417323706115
Color Light Grey
Weight Gross: 0.754kg, Net: 0.68kg

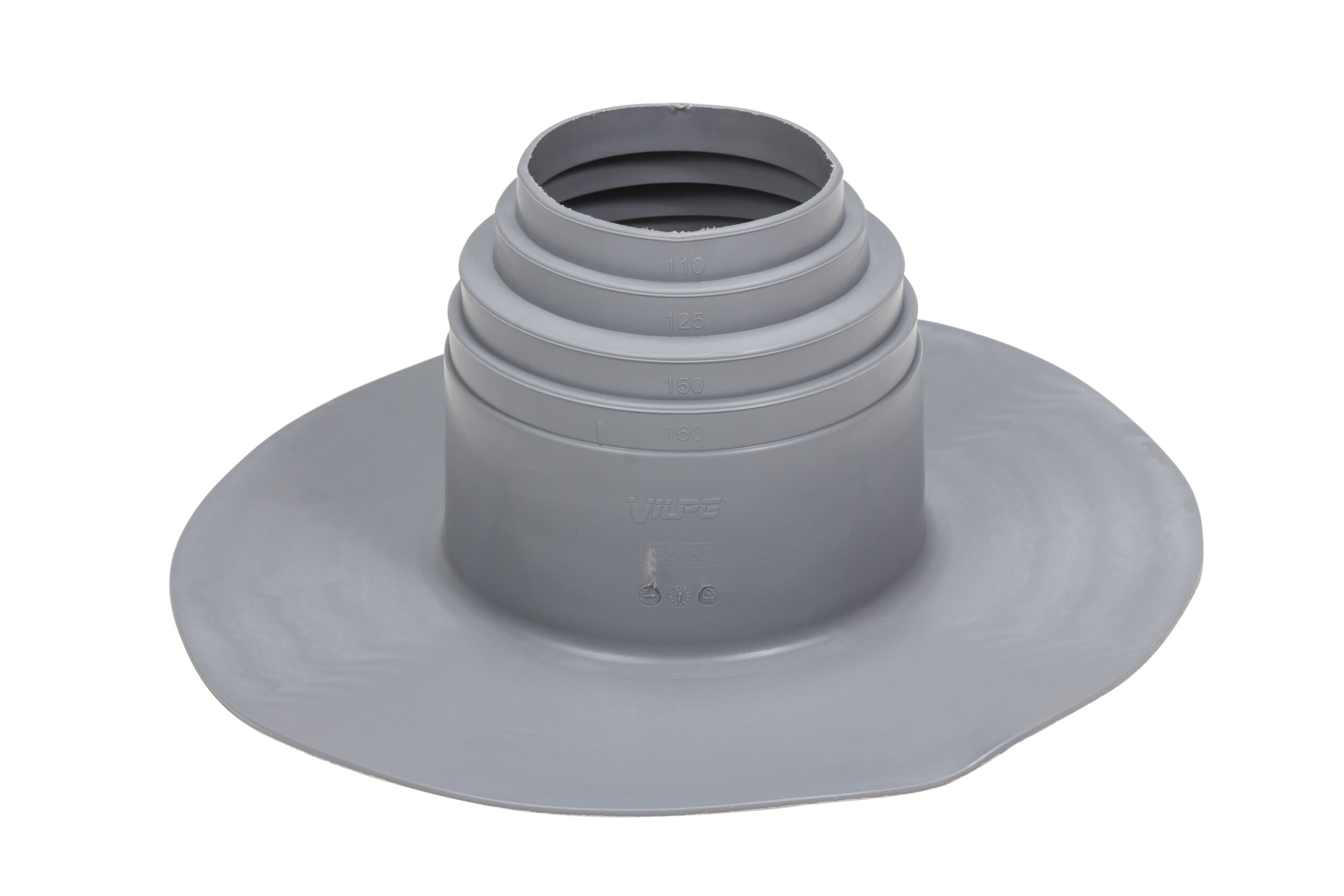

ModelØ 110-160 mm dark grey
Product number70612
EAN Code6417323706122
Color Dark grey
Weight Gross: 0.754kg, Net: 0.68kg
SKU: N/A Categories: ,
Share product page

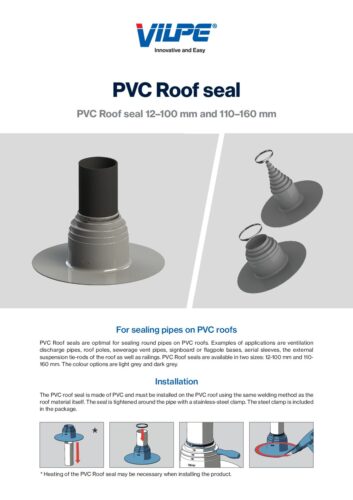

Print pdf

Download CAD Models

Download DWG-file
item-70602-productimage-dwg.dwg
Download DWG-file
item-70611-productimage-dwg.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-through seals, Pass-through seals
