Multifunction Grille 240 x 240

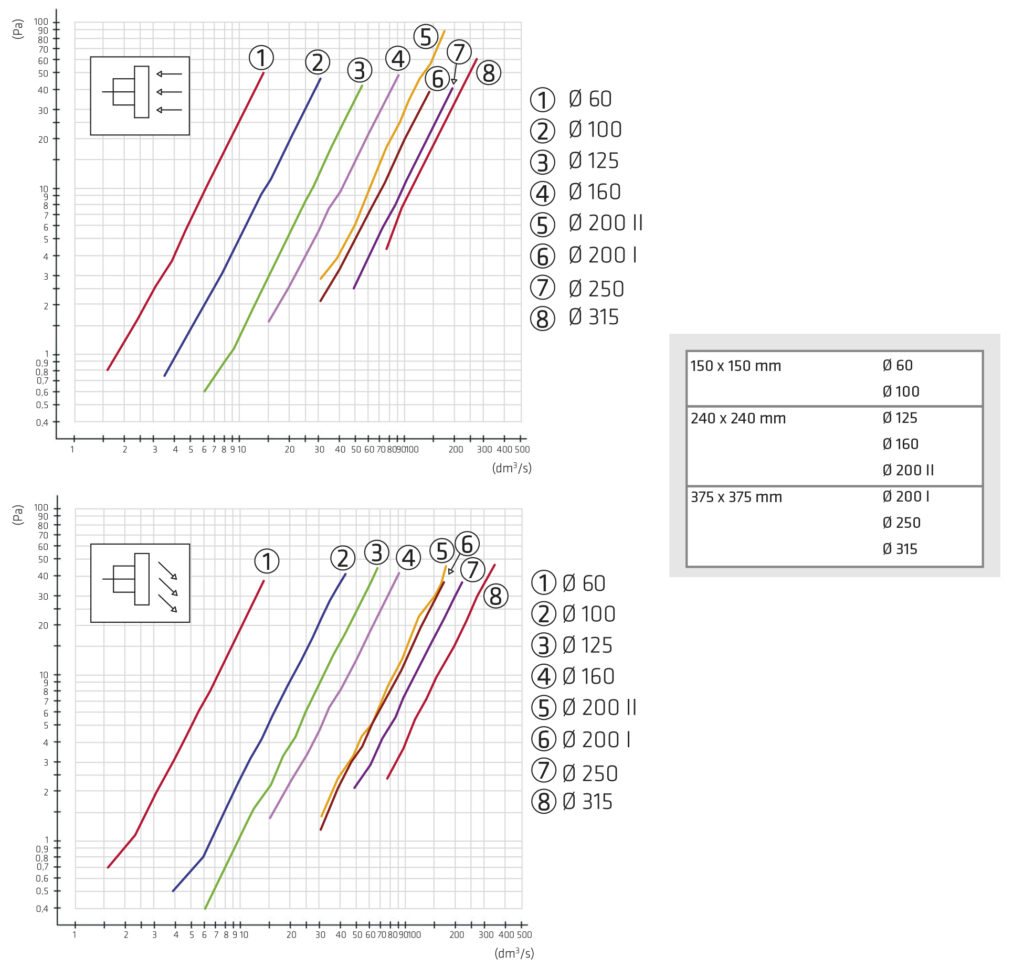

The VILPE Multifunction Grille works as a ventilation grille for different types of spaces, and can also be used as an intake or exhaust vent for mechanical ventilation systems. If the product is to be used as a ventilation grille in a natural ventilation system, it is ready for use as it is. In a mechanical ventilation arrangement, an intake or exhaust air duct can be attached to the product–in this case, a duct fitting plate is required in addition to the vent. The ventilation grille can also be fitted with an insect net, which is supplied as an accessory, and it can be opened and locked for cleaning with an easy lock mechanism. The unique airflow design of the Multifunction Grille results in a large cross-sectional area in both directions of flow and good water/snow shedding properties. The pressure loss of the new Multifunction Grille is the smallest of any on the market for both intake and exhaust air. Effective area 248 cm2. When used in a mechanical ventilation system, a Ø 125, 160 or 200 mm duct fitting plate is required.

Dimensions: 240 x 240 mm.

Contents: Multifunction grille, 6 mm plugs, screws.

Color
White
Beige
Light Grey
Grey
Red
Black
Anthracite
Product number793330
LVI Code8832005
EAN Code6410457933303
Color White | RR20
Weight Gross: 0.455kg, Net: 0.408kg
Product number793331
LVI Code8832006
EAN Code6410457933310
Color Beige | RR30
Weight Gross: 0.455kg, Net: 0.408kg
Product number793333
LVI Code8832007
EAN Code6410457933334
Color Light Grey
Weight Gross: 0.455kg, Net: 0.408kg
Product number793337
LVI Code8832008
EAN Code6410457933372
Color Grey | RR23 | RAL7015
Weight Gross: 0.455kg, Net: 0.408kg
Product number793338
LVI Code8832009
EAN Code6410457933389
Color Red | RR29 | RAL3009
Weight Gross: 0.455kg, Net: 0.408kg
Product number793332
LVI Code8832058
EAN Code6410457933327
Color Black | RR33 | RAL9005
Weight Gross: 0.455kg, Net: 0.408kg
Product number79333G
EAN Code6410457654383
Color Anthracite
Weight Gross: 0.455kg, Net: 0.408kg
