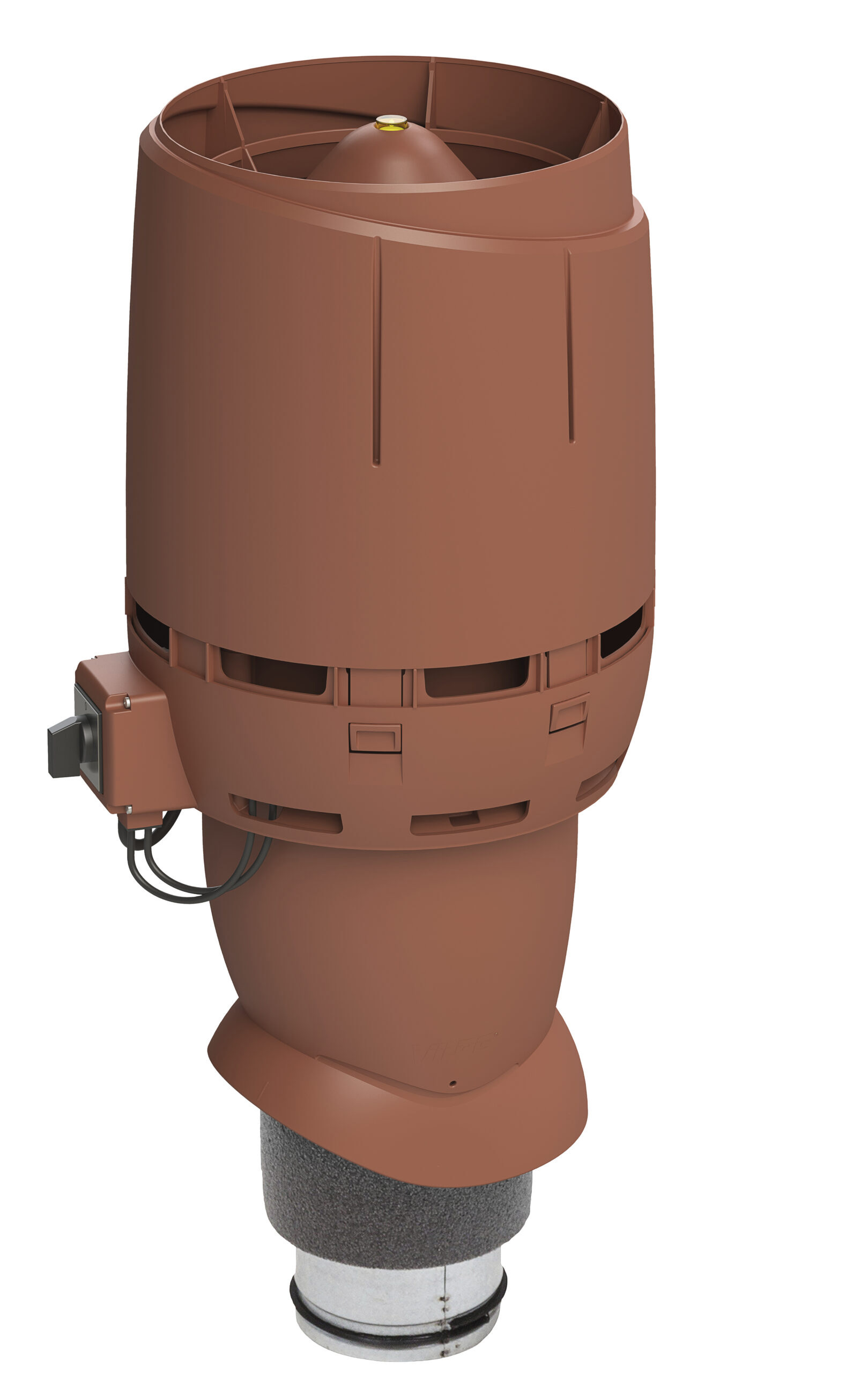

ECo125P/500 FLOW ROOF FAN

Product description: Energy-efficient roof fan for mechanical exhaust ventilation or as a cooker hood fan. Can be controlled with, for example, the ECo Controller, ECo Ideal, and home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. The product is equipped with a direct current (EC) motor. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required.

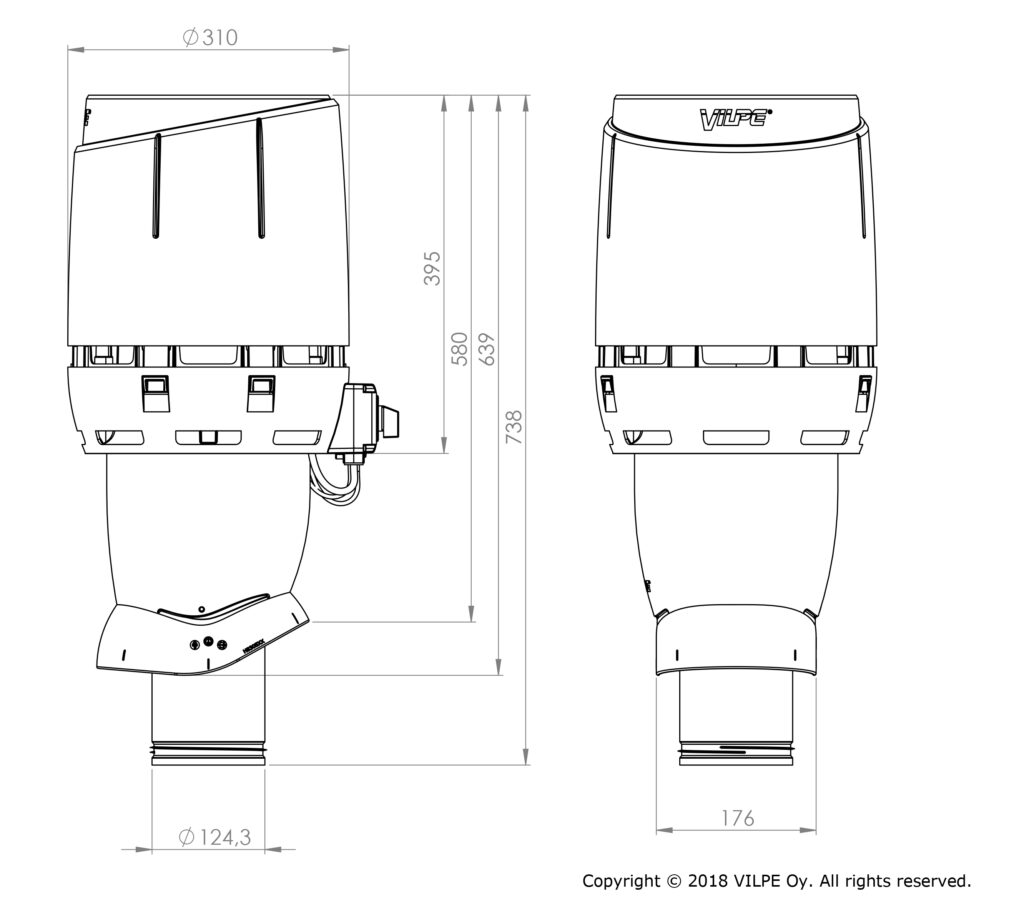

Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.

Compatible controllers

Color
Brick Red
Black
Light Grey
Brown
Green
Grey
Red
Anthracite
Product number350249
EAN Code6410453502497
Color Brick Red | RR750 | RAL8004
Weight Gross: 7.609kg, Net: 6.425kg
Product number350242
EAN Code6410453502428
Color Black | RR33 | RAL9005
Weight Gross: 7.609kg, Net: 6.425kg
Product number350241
EAN Code6410453502411
Color Light Grey | RR33 | RAL7040
Weight Gross: 7.582kg, Net: 6.398kg
Product number350244
EAN Code6410457726400
Color Brown | RR32 | RAL8019
Weight Gross: 7.609kg, Net: 6.425kg
Product number350246
EAN Code6410453502466
Color Green | RR11 | RAL6020
Weight Gross: 7.609kg, Net: 6.425kg
Product number350247
EAN Code6410453502473
Color Grey | RR23 | RAL7024
Weight Gross: 7.609kg, Net: 6.425kg
Product number350248
EAN Code6410453502480
Color Red | RR29 | RAL3009
Weight Gross: 7.609kg, Net: 6.425kg
Product number35024D
EAN Code6410457657278
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 7.609kg, Net: 6.425kg
SKU: N/A Categories: ,
Share product page
Duct size125 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

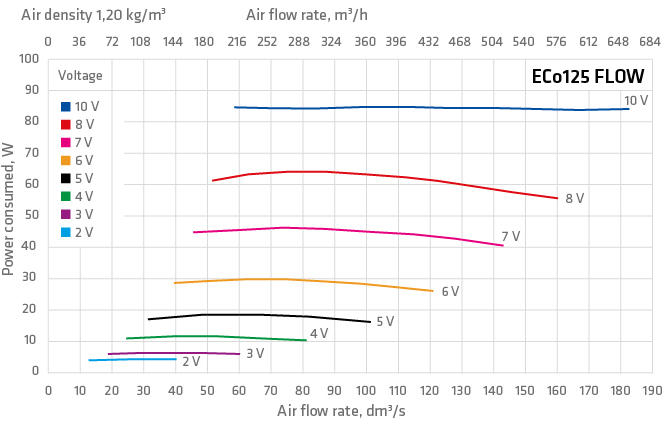

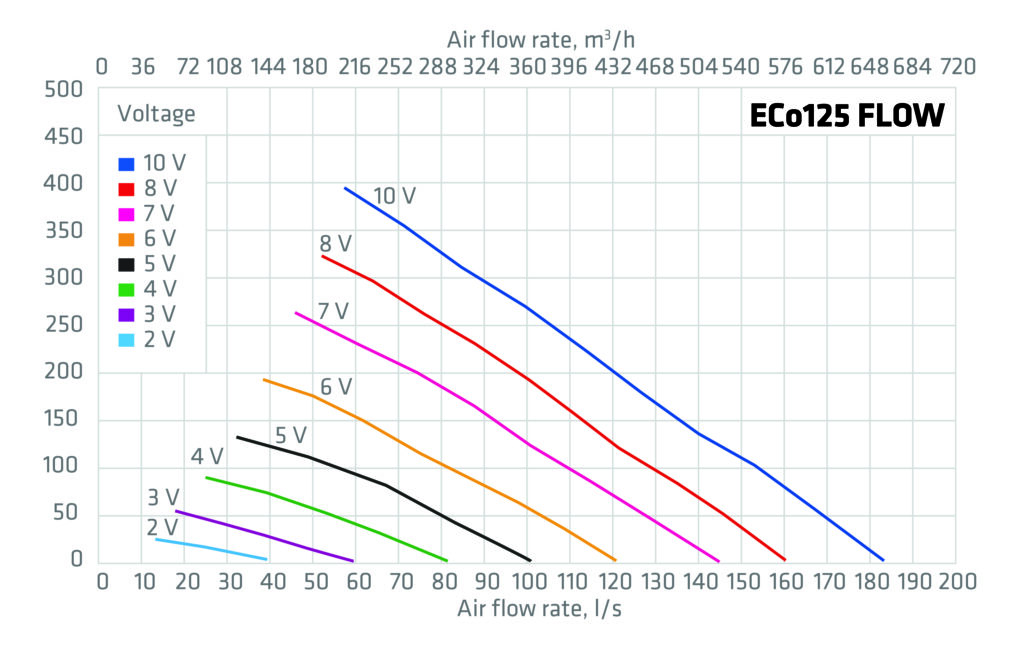

Performance data graphs

VILPE ECo FLOW 125 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

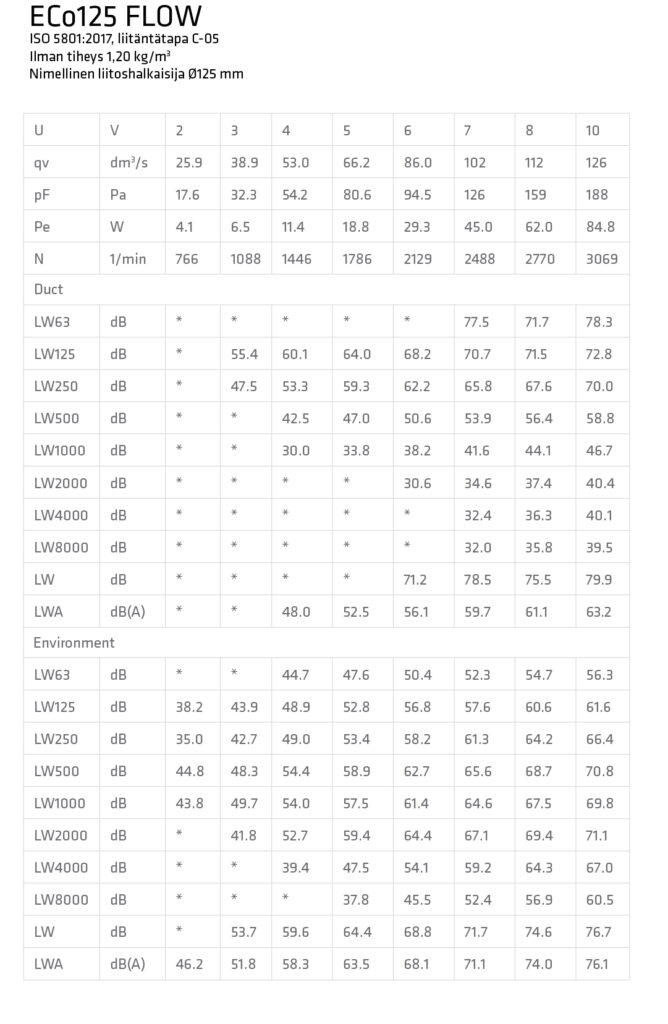

Energy efficiency data

Materials & Installation
