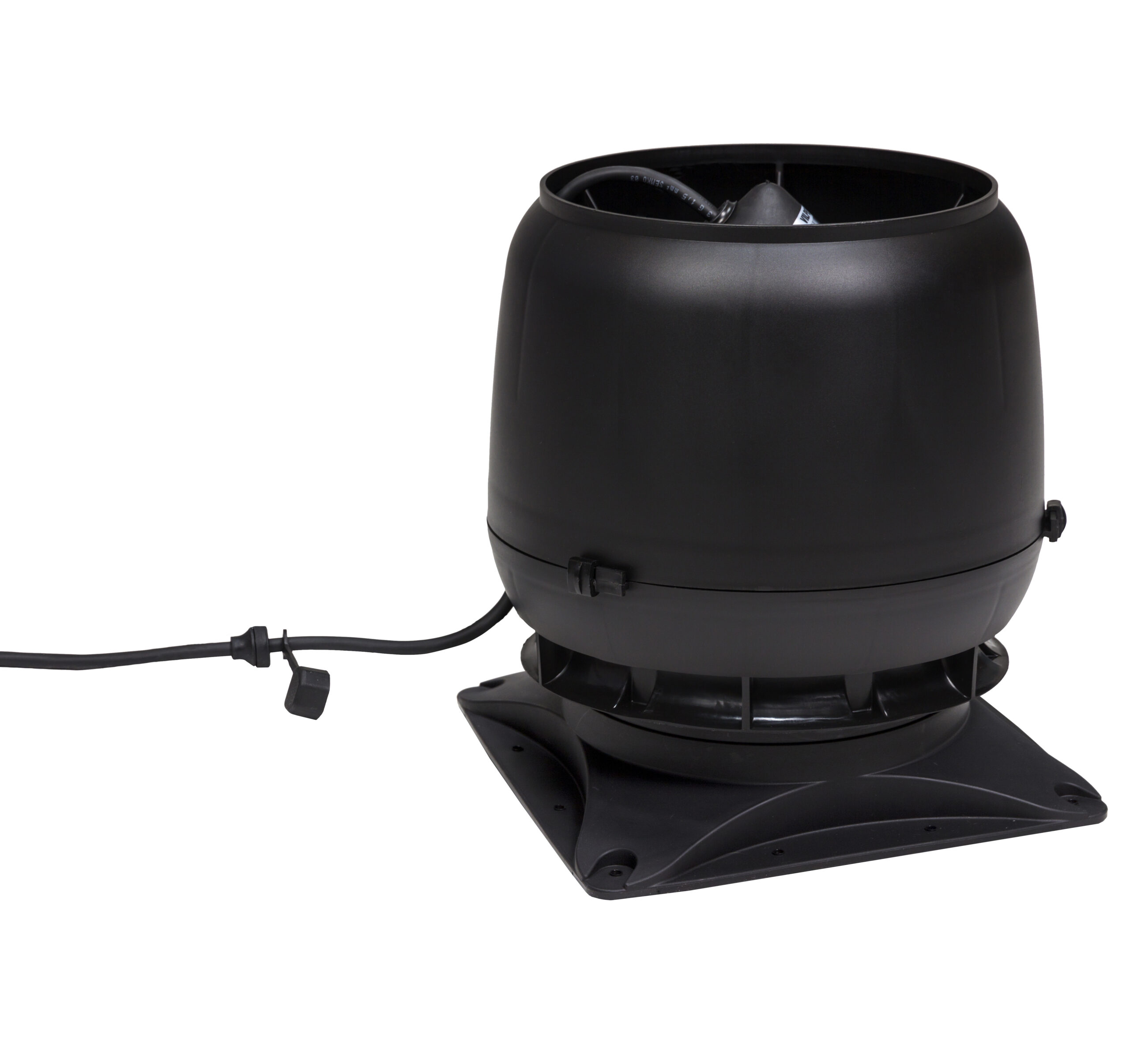

E190S/Ø125 Roof Fan + Installation Set

Description: Roof fan for the top of an air conduit or silencer. An installation set for a flat surface is included with this product.

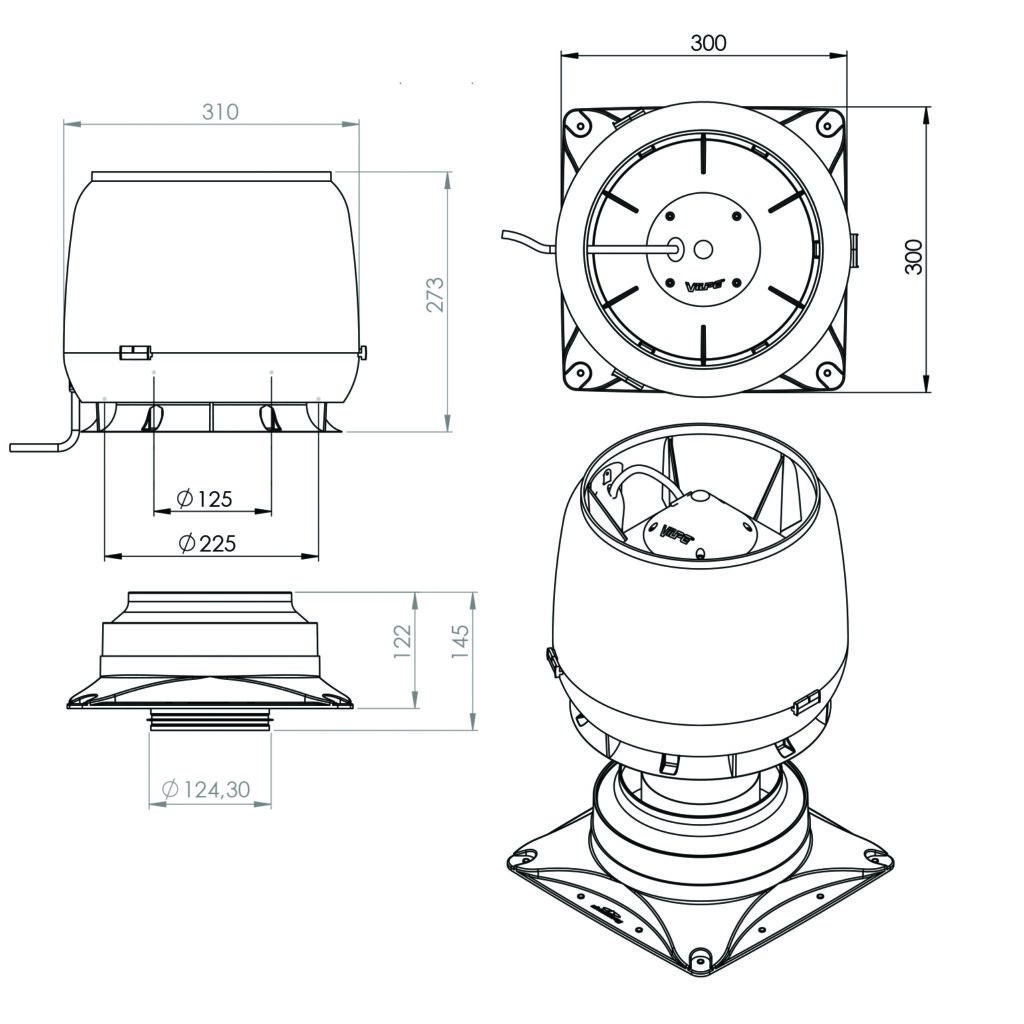

Dimensions: Duct size Ø 125 mm; installation set 300 x 300 mm, installation area must be at least the same size.

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number737522
LVI Code7820206
EAN Code6410457375226
Color Black | RR33 | RAL9005
Weight Gross: 4.797kg, Net: 4.311kg
Product number737524
LVI Code7820207
EAN Code6410457375240
Color Brown | RR32
Weight Gross: 4.744kg, Net: 4.258kg
Product number737526
LVI Code7820208
EAN Code6410457375264
Color Green | RR11
Weight Gross: 4.744kg, Net: 4.258kg
Product number737527
LVI Code7820209
EAN Code6410457375271
Color Grey | RR23 | RAL7015
Weight Gross: 4.744kg, Net: 4.258kg
Product number737528
LVI Code7820210
EAN Code6410457375288
Color Red | RR29 | RAL3009
Weight Gross: 4.744kg, Net: 4.258kg
Product number737529
LVI Code7820211
EAN Code6410457375295
Color Brick Red | RR750 | RAL8004
Weight Gross: 4.744kg, Net: 4.258kg
Product number737521
LVI Code7820205
EAN Code6410457375219
Color Light Grey | RAL7040
Weight Gross: 4.737kg, Net: 4.251kg
SKU: N/A Categories: ,
Share product page
Print pdf
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC

Performance data graphs

VILPE E190 - ISO 5221:1984 - ISO 3471:1988

Air density: 1.2

10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V

Download CAD Models

MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Videos

Product categories: Roof fans, S-Series roof fans
