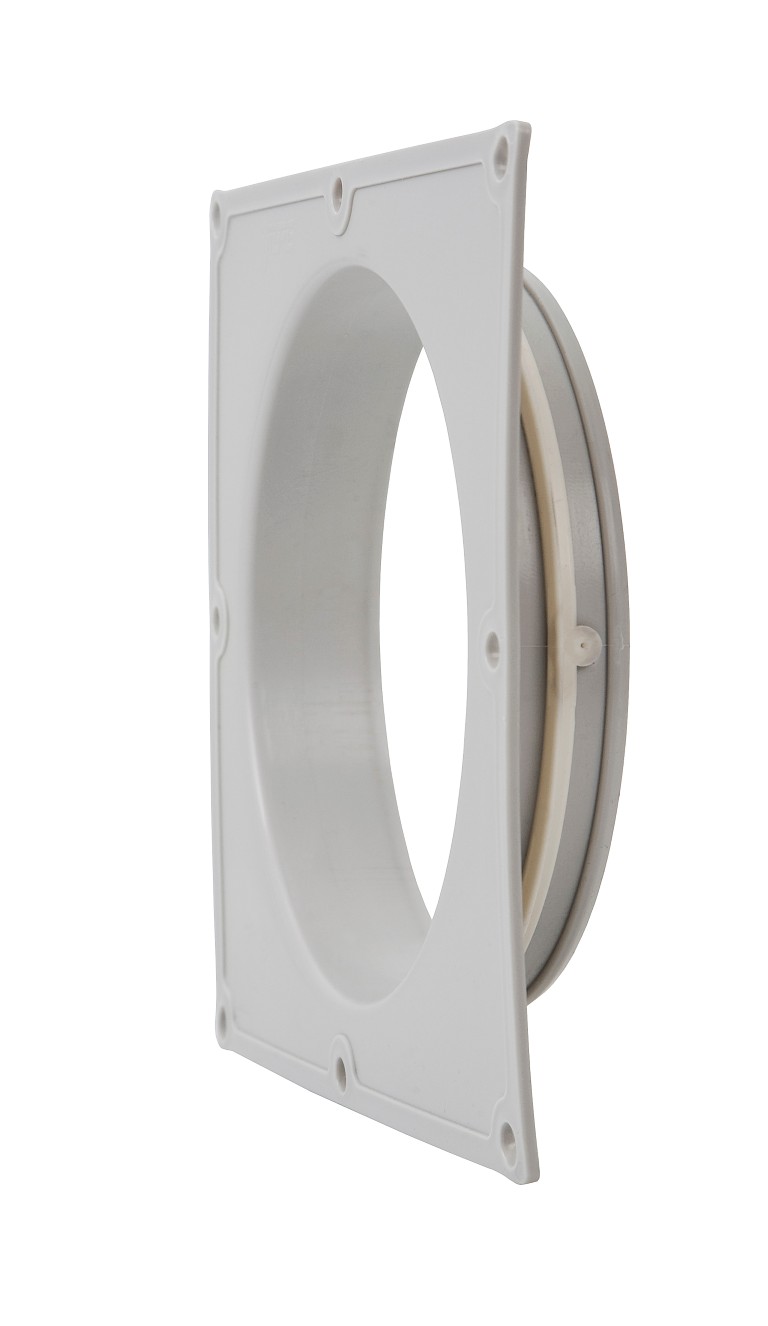

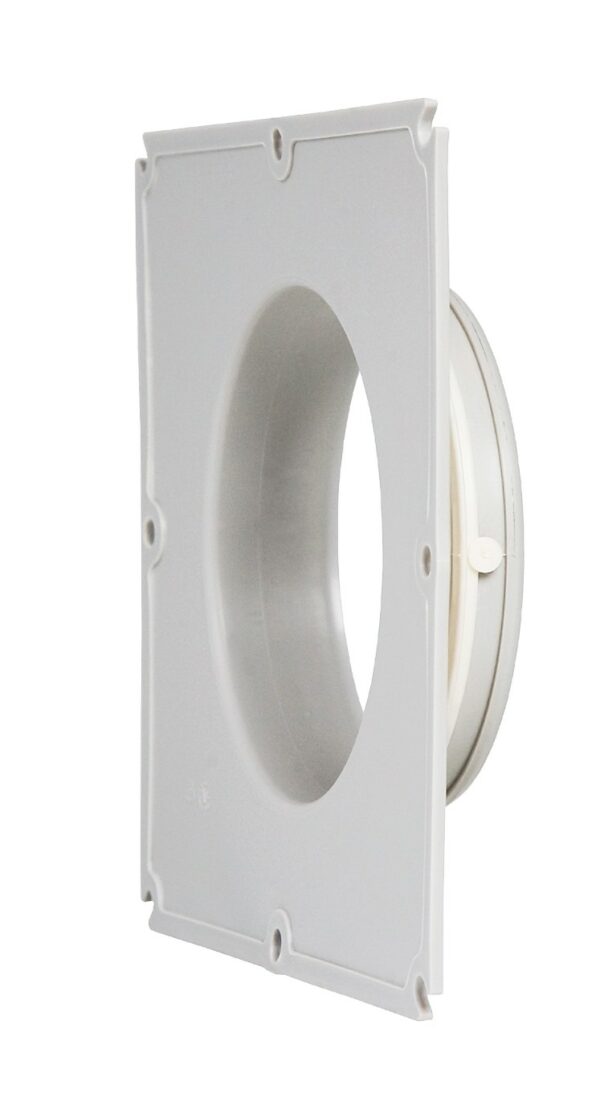

Duct Fitting Plate (for Multifunction Grille 240×240)

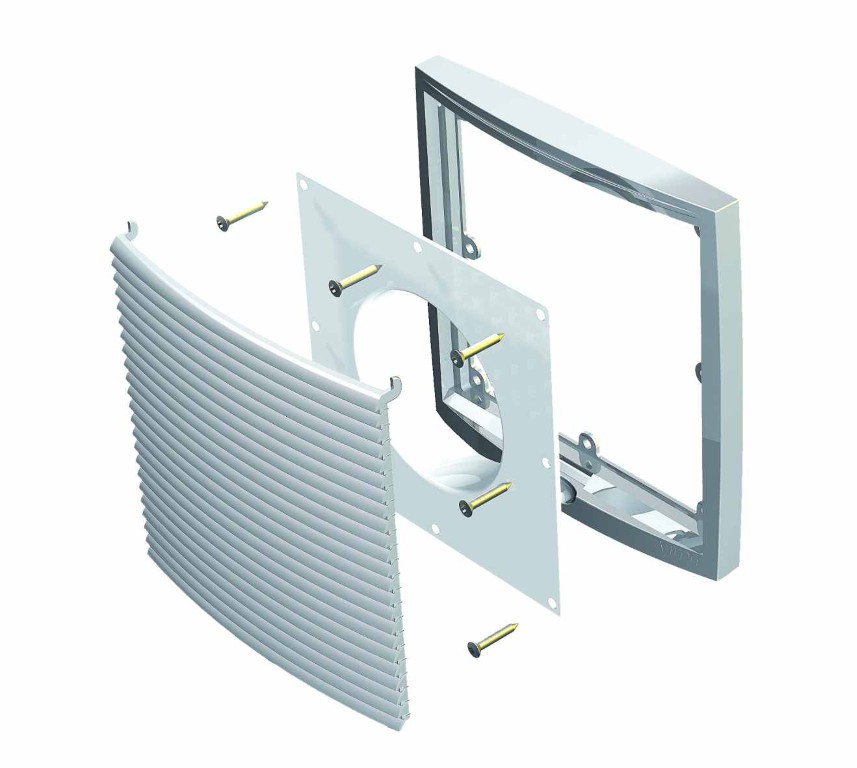

Description: The Duct Fitting Plate is required in mechanical ventilation systems, and is designed for use with a VILPE Multifunction Grille 240 x 240. The Duct Fitting Plate should be attached to an intake or exhaust air duct.

Contents: Duct Fitting Plate.
Model
Ø160
Ø200
Ø125
ModelØ160
Product number793355
LVI Code8832018
EAN Code6410457933556
Weight Gross: 0.131kg, Net: 0.078kg
ModelØ200
Product number793359
LVI Code8832024
EAN Code6410457933594
Weight Gross: 0.162kg, Net: 0.105kg
ModelØ125
Product number793354
LVI Code8832017
EAN Code6410457933549
Weight Gross: 0.136kg, Net: 0.083kg
SKU: N/A Categories: ,
Share product page
Print pdf

Download CAD Models

Download DWG-file
793354.dwg
Download DWG-file
793355.dwg
Download DWG-file
793359.dwg
Product categories: Multifunction grilles, Wall elements
