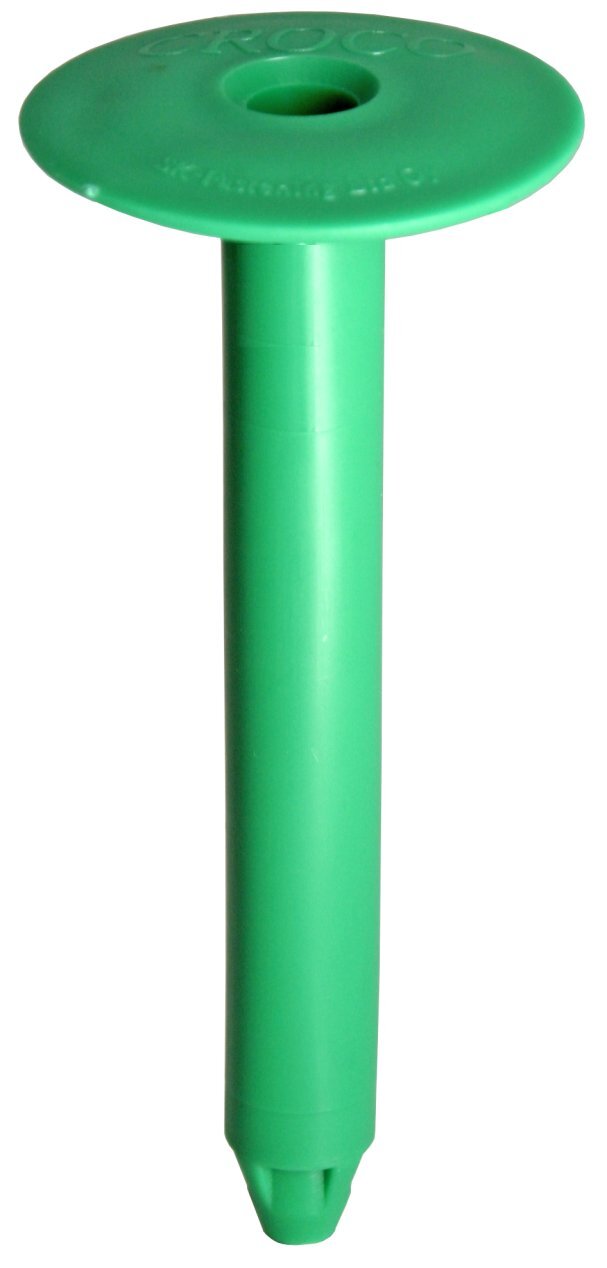

Croco B Fastener

Description: For fastening hard insulation sheets or bitumen roof covering and insulation sheets when the fix-layer is sheet metal, concrete or wood. The Croco B Fastener should be fastened to the fix-layer with a roof screw, a concrete screw or a concrete nail. The length of the fastener should be chosen according to the thickness of the insulation material, as well as the screw or nail being used.

Dimensions: Flange Ø 50 mm.

Contents: Croco B fastener.
Model
20 mm
30 mm
50 mm
80 mm
100 mm
110 mm
120 mm
140 mm
150 mm
170 mm
200 mm
210 mm
230 mm
250 mm
260 mm
290 mm
300 mm
350 mm
400 mm
450 mm
500 mm
550 mm
600 mm
Model20 mm
Product number02520
EAN Code6417323025209
Color Green | RAL6024
Weight Gross: 0.008kg, Net: 0.007kg
Model30 mm
Product number02530
EAN Code6417323025308
Color Green | RAL6024
Weight Gross: 0.008kg, Net: 0.007kg
Model50 mm
Product number02550
EAN Code6410457653942
Color Green | RAL6024
Weight Gross: 0.011kg, Net: 0.011kg
Model80 mm
Product number02580
EAN Code6410457654758
Color Green | RAL6024
Weight Gross: 0.011kg, Net: 0.01kg
Model100 mm
Product number02600
EAN Code6410457653959
Color Green | RAL6024
Weight Gross: 0.013kg, Net: 0.012kg
Model110 mm
Product number02610
EAN Code6410457653652
Color Green | RAL6024
Weight Gross: 0.014kg, Net: 0.013kg
Model120 mm
Product number02620
EAN Code6410457653966
Color Green | RAL6024
Weight Gross: 0.015kg, Net: 0.014kg
Model140 mm
Product number02640
EAN Code6410457653669
Color Green | RAL6024
Weight Gross: 0.016kg, Net: 0.015kg
Model150 mm
Product number02650
EAN Code6410457651412
Color Green | RAL6024
Weight Gross: 0.017kg, Net: 0.016kg
Model170 mm
Product number02654
EAN Code6410457651429
Color Green | RAL6024
Weight Gross: 0.019kg, Net: 0.017kg
Model200 mm
Product number02660
EAN Code6410457651436
Color Green | RAL6024
Weight Gross: 0.022kg, Net: 0.02kg
Model210 mm
Product number02661
EAN Code6417323026619
Color Green | RAL6024
Weight Gross: 0.046kg, Net: 0.043kg
Model230 mm
Product number02664
EAN Code6410457651443
Color Green | RAL6024
Weight Gross: 0.023kg, Net: 0.02kg
Model250 mm
Product number02670
EAN Code6410457651450
Color Green | RAL6024
Weight Gross: 0.025kg, Net: 0.022kg
Model260 mm
Product number02674
EAN Code6410457651467
Color Green | RAL6024
Weight Gross: 0.02kg, Net: 0.017kg
Model290 mm
Product number02678
EAN Code6410457651474
Color Green | RAL6024
Weight Gross: 0.022kg, Net: 0.019kg
Model300 mm
Product number02680
EAN Code6410457651481
Color Green | RAL6024
Weight Gross: 0.032kg, Net: 0.028kg
Model350 mm
Product number02690
EAN Code6410457651498
Color Green | RAL6024
Weight Gross: 0.036kg, Net: 0.032kg
Model400 mm
Product number02700
EAN Code6410457651504
Color Green | RAL6024
Weight Gross: 0.041kg, Net: 0.036kg
Model450 mm
Product number02710
EAN Code6410457651511
Color Green | RAL6024
Weight Gross: 0.046kg, Net: 0.042kg
Model500 mm
Product number02720
EAN Code6410457651528
Color Green | RAL6024
Weight Gross: 0.051kg, Net: 0.047kg
Model550 mm
Product number02730
EAN Code6410457651535
Color Green | RAL6024
Weight Gross: 0.057kg, Net: 0.051kg
Model600 mm
Product number02740
EAN Code6410457651542
Color Green | RAL6024
Weight Gross: 0.061kg, Net: 0.055kg
