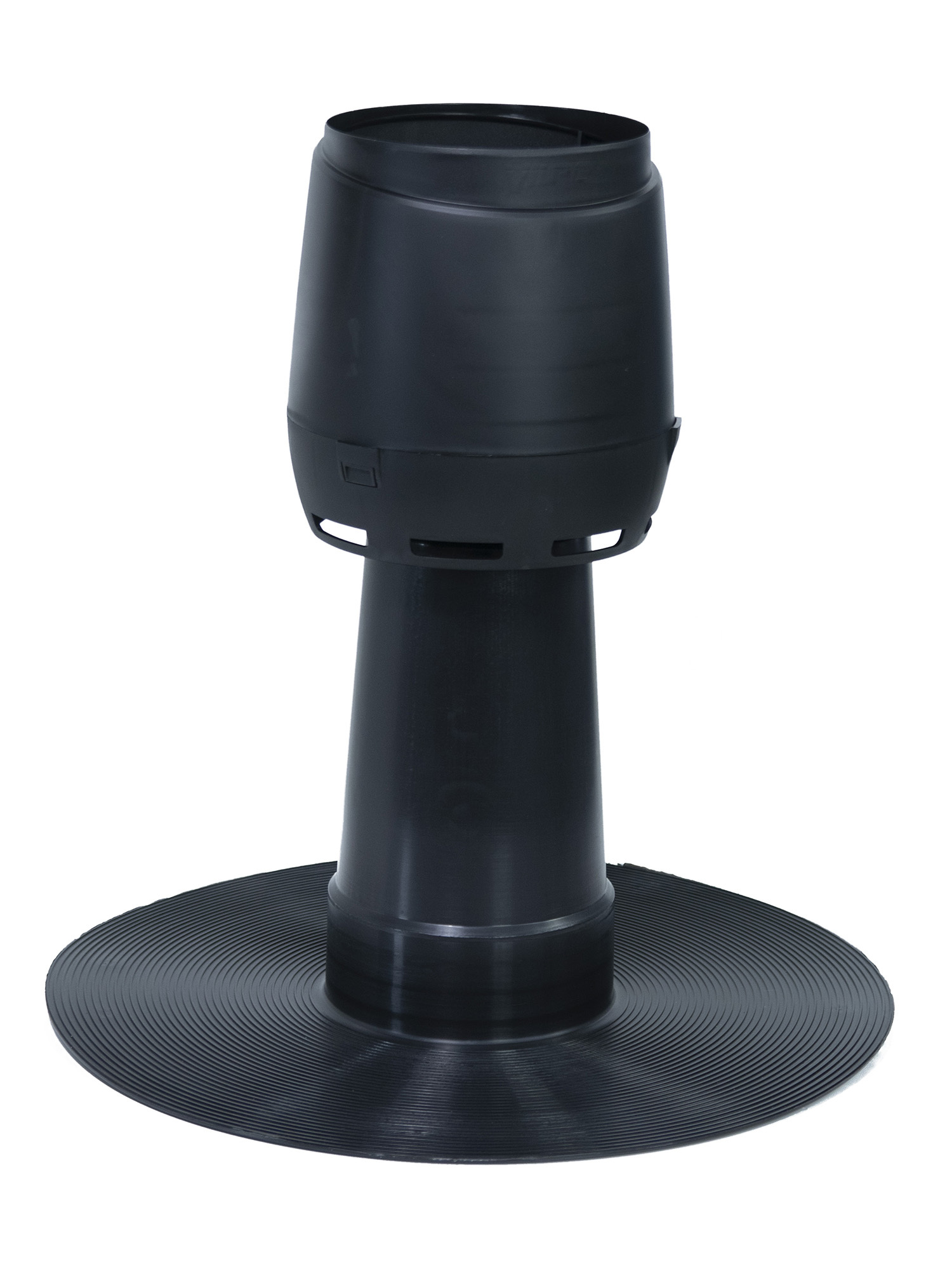

Alipai FLOW 110

Alipai FLOW 110

Description: Negative pressure ventilation pipe for the ventilation of low-pitched felt roof structures. Should be installed with hot bitumen between two felt layers.

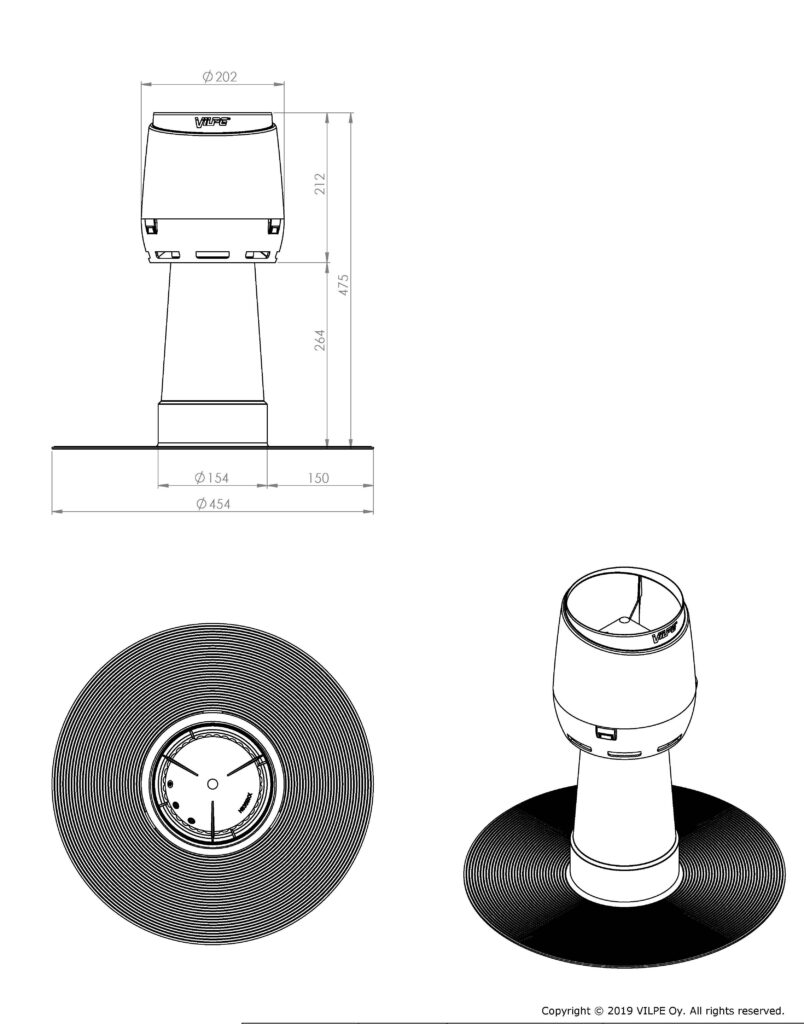

Dimensions: Ø 110 mm, height 476 mm; width of the flange 150 mm.

Contents: Negative pressure ventilation pipe, VILPE FLOW cowl.
Color
Black
Grey
Light Grey
Product number732102
EAN Code6410457321025
Color Black | RR33 | RAL9005
Weight Gross: 1.296kg, Net: 1.171kg
Product number732107
EAN Code6410457321070
Color Grey | RR23 | RAL7024
Weight Gross: 1.3kg, Net: 1.176kg
Product number732101
EAN Code6410457321018
Color Light Grey | RAL7040
Weight Gross: 1.274kg, Net: 1.149kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size110 Ø

Download CAD Models

Download DWG-file
732102.dwg
Prodlib file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Alipai, Ventilation of structures
