315S FLOW EXHAUST 724X724

315S FLOW EXHAUST 724X724

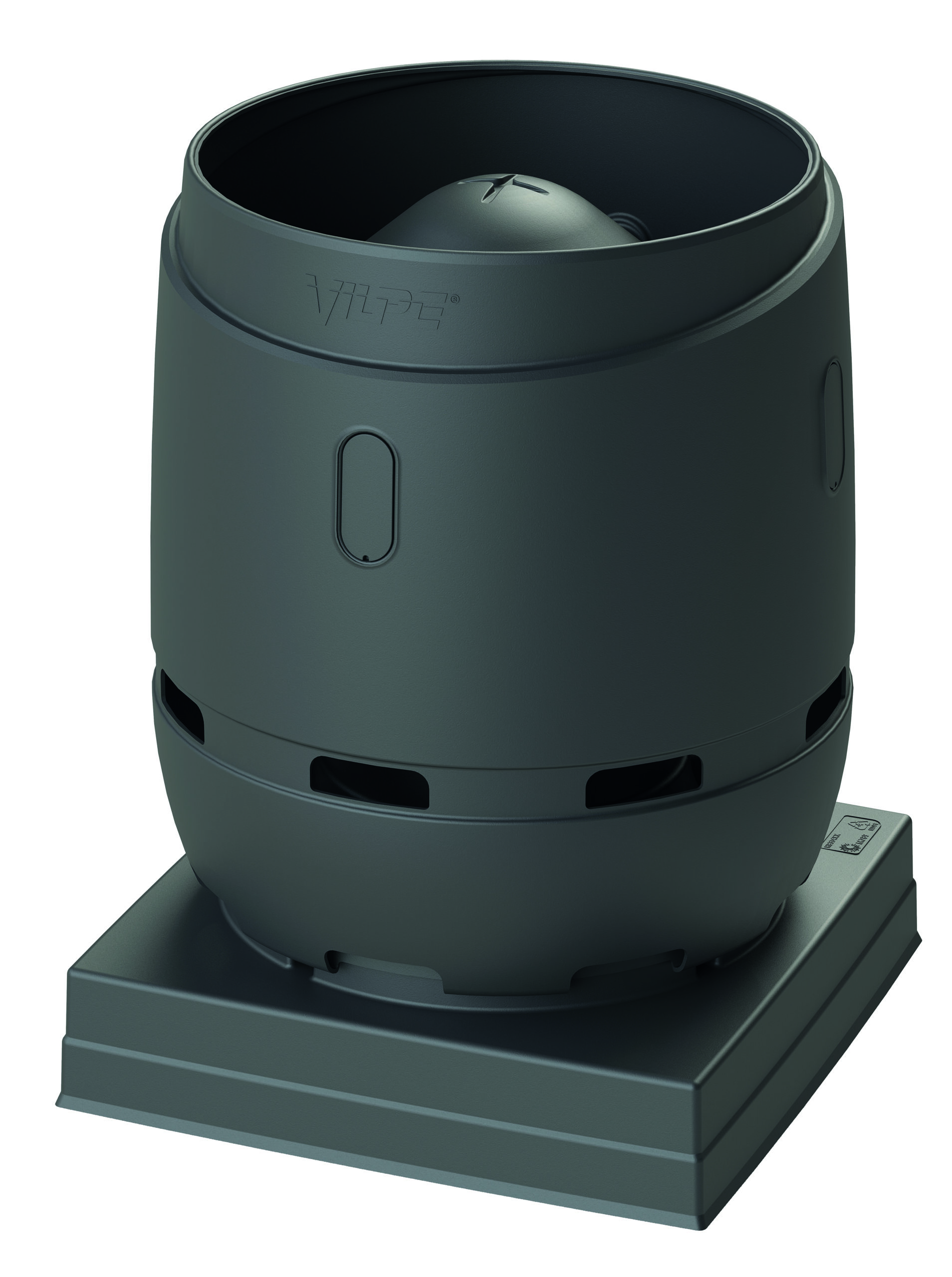

Description: Exhaust vent with FLOW cowl. Installed on a square-shaped 724 x 724 mm pass-through. An assembled square-shaped VILPE pass-through with a silencer is also available.

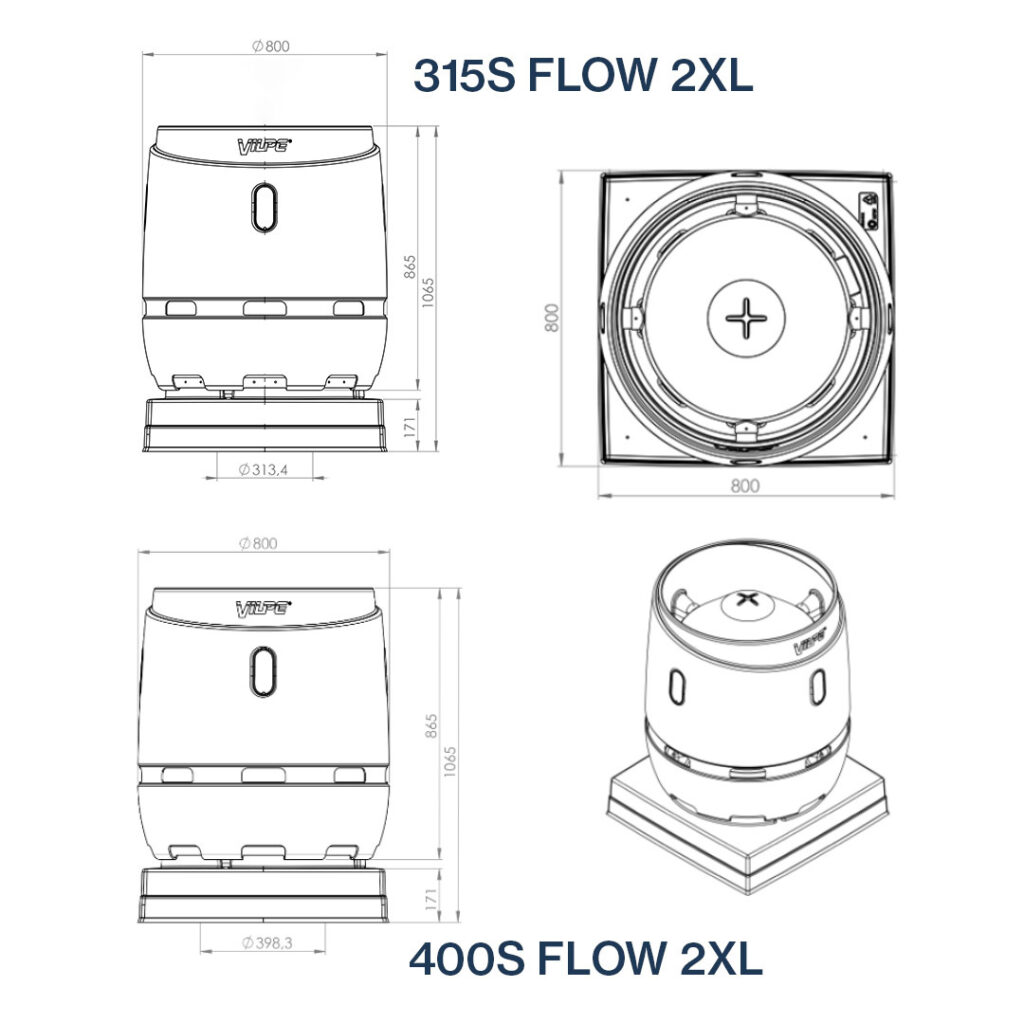

Dimensions: Ø 315 mm.

Contents: Exhaust vent, installation set, Ø 315 mm galvanized steel connection pipe.
Color
Silver Grey
Black
Grey
Product number350401
LVI Code7820532
EAN Code6410457652150
Color Silver Grey | RAL7001
Weight Gross: 24.719kg, Net: 24.715kg
Product number350402
LVI Code7820450
EAN Code6410453504026
Color Black | RR33 | RAL9005
Weight Gross: 24.719kg, Net: 24.715kg
Product number350407
LVI Code7820451
EAN Code6410453504071
Weight Gross: 24.719kg, Net: 24.715kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size315 Ø

Download CAD Models

Download DWG-file
350402.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Exhaust ventilation pipes, S-Series exhausts
