200P/IS/500 FLOW XL EXHAUST VENTILATION PIPE

200P/IS/500 FLOW XL EXHAUST VENTILATION PIPE

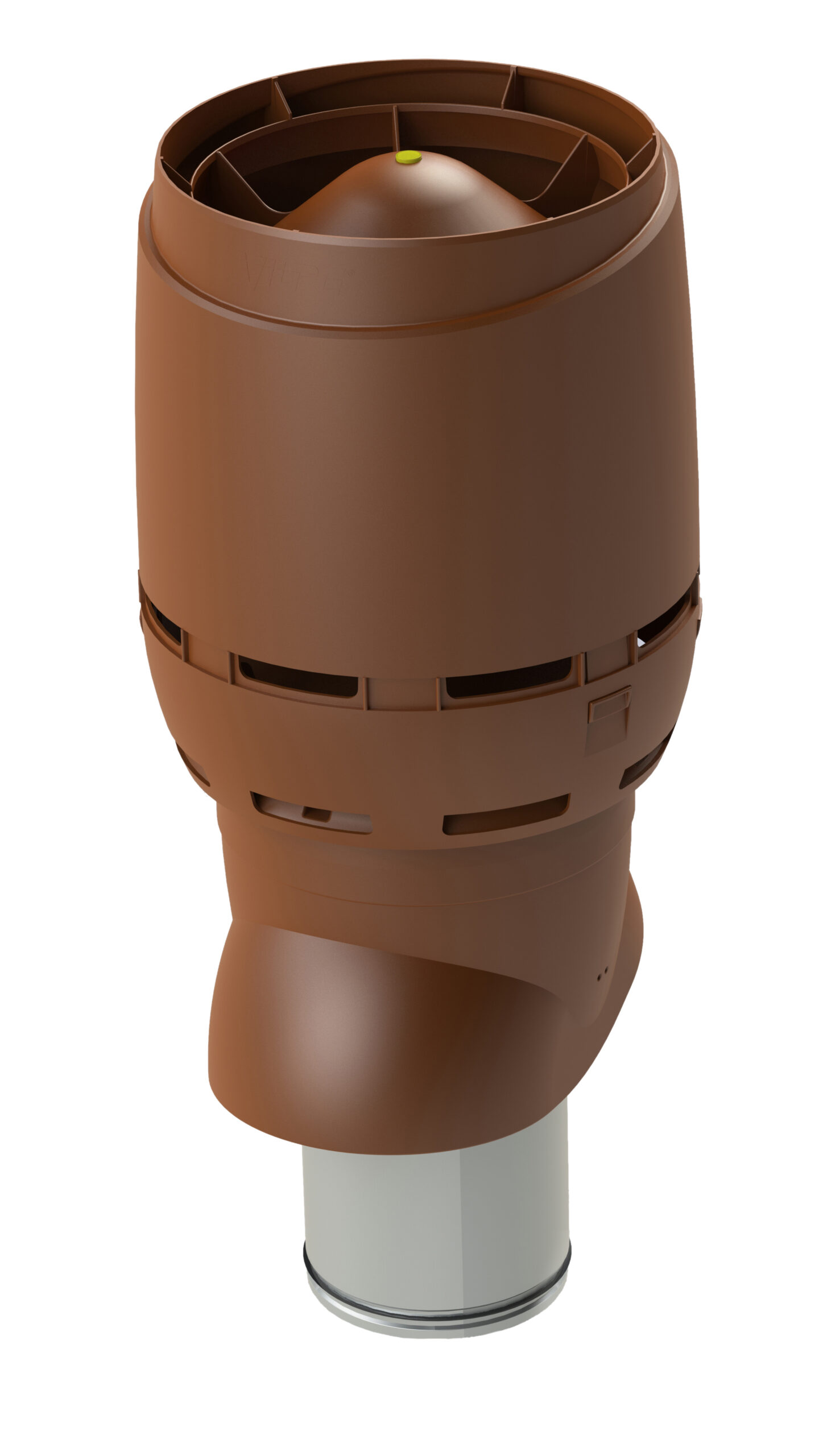

Description: Insulated exhaust ventilation pipe. The inner pipe is made of galvanised sheet steel, and its lip seal ensures a tight connection to the ductwork. In addition to the pipe, a VILPE XL roof pass-through, selected according to the roofing material, is required.

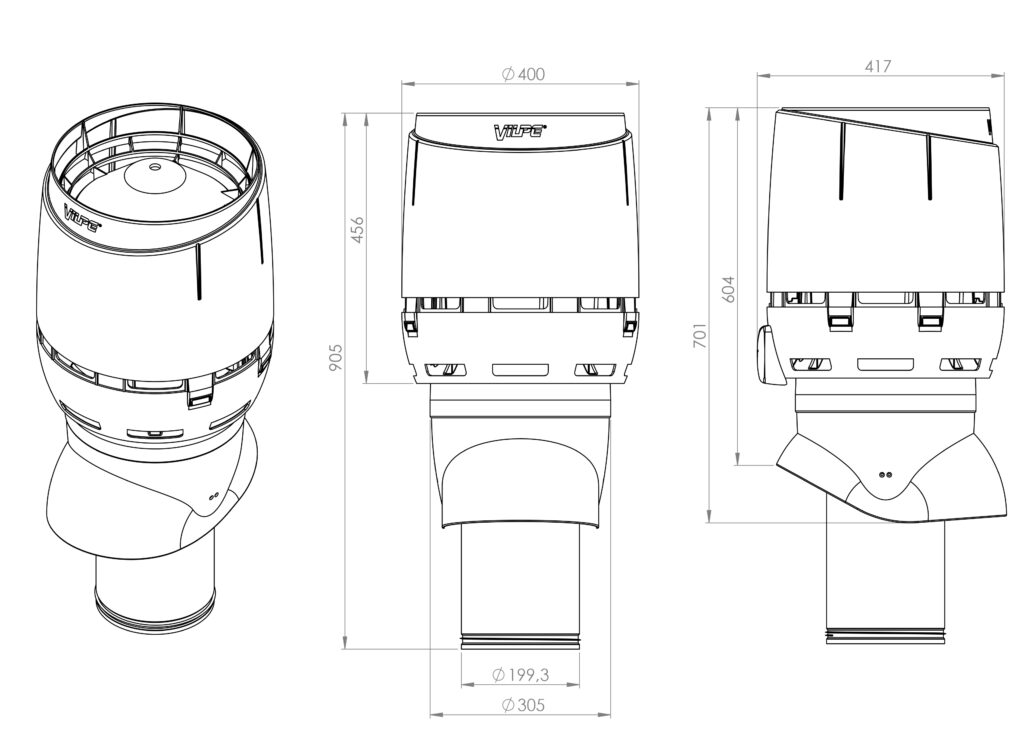

Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 500 mm.
Contents: Exhaust ventilation pipe, FLOW cowl, screws.
Color
Brown
Grey
Red
Brick Red
Black
Anthracite
Product number350134
EAN Code6410453501346
Color Brown | RR32 | RAL8019
Weight Gross: 6.728kg, Net: 5.923kg
Product number350137
EAN Code6410453501377
Color Grey | RR23 | RAL7024
Weight Gross: 6.728kg, Net: 5.923kg
Product number350138
EAN Code6410453501384
Color Red | RR29 | RAL3009
Weight Gross: 6.728kg, Net: 5.923kg
Product number350139
EAN Code6410453501391
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.728kg, Net: 5.923kg
Product number350132
EAN Code6410453501322
Color Black | RR33 | RAL9005
Weight Gross: 6.728kg, Net: 5.923kg
Product number35013D
EAN Code6410457657261
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 6.728kg, Net: 5.923kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size200 Ø
EPD LinkEPD-portal

Download CAD Models

MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: Exhaust ventilation pipes, P-Series pipes
