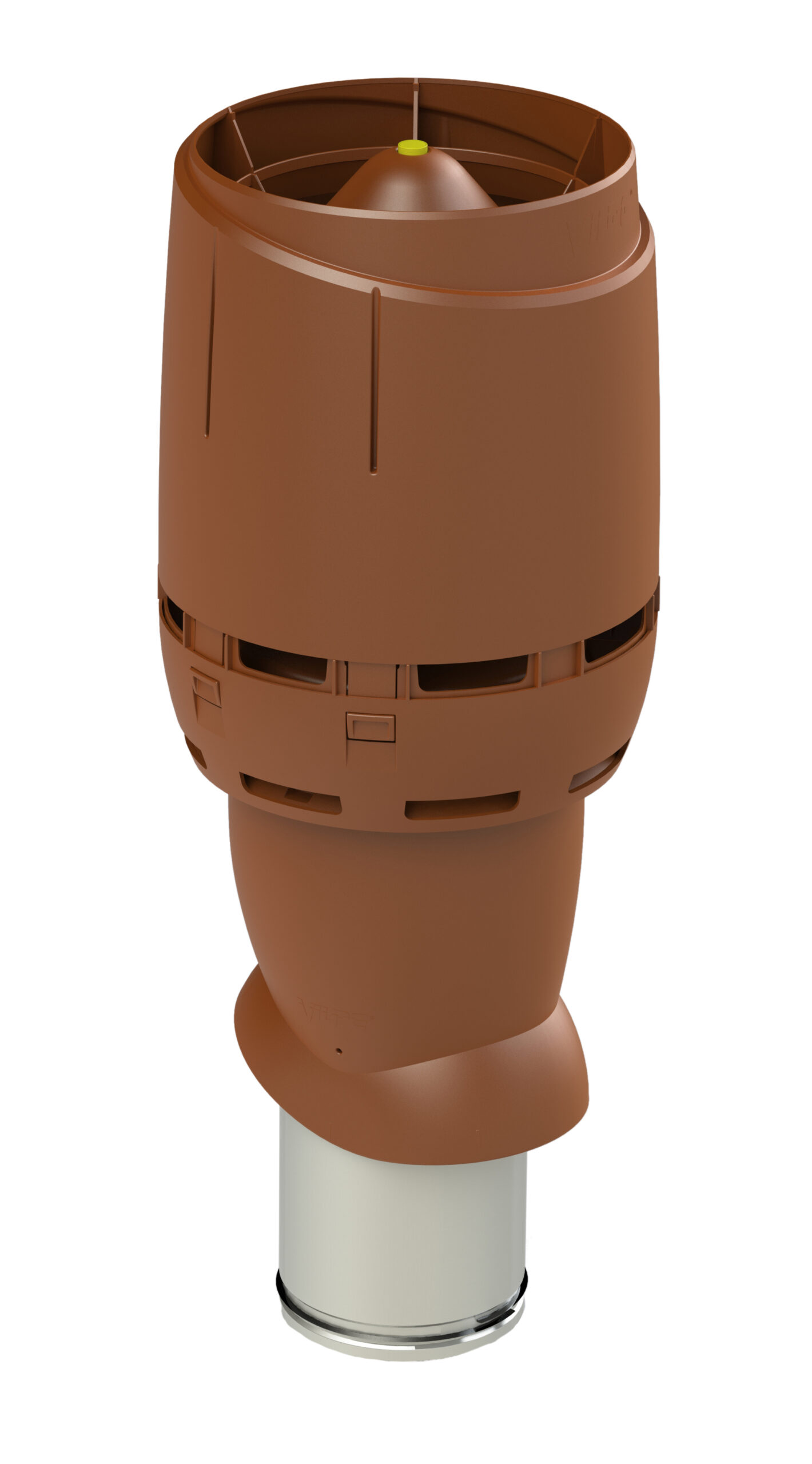

160P/IS/500 FLOW EXHAUST VENTILATION PIPE

160P/IS/500 FLOW EXHAUST VENTILATION PIPE

Description: Insulated exhaust ventilation pipe. The inner pipe is made of galvanised sheet steel, and its lip seal ensures a tight connection to the ductwork. In addition to the pipe, a VILPE roof pass-through, selected according to the roofing material, is required.
Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm.
Contents: Exhaust ventilation pipe, FLOW cowl, screws.
Color
Light Grey
Brown
Green
Grey
Red
Brick Red
Black
Chocolate Brown
Anthracite
Product number350051
EAN Code6410453500516
Color Light Grey | RAL7040
Weight Gross: 4.639kg, Net: 3.545kg
Product number350054
EAN Code6410453500547
Color Brown | RR32 | RAL8019
Weight Gross: 4.666kg, Net: 3.572kg
Product number350056
EAN Code6410453500561
Color Green | RR11 | RAL6020
Weight Gross: 4.666kg, Net: 3.572kg
Product number350057
EAN Code6410453500578
Color Grey | RR23 | RAL7024
Weight Gross: 4.666kg, Net: 3.572kg
Product number350058
EAN Code6410453500585
Color Red | RR29 | RAL3009
Weight Gross: 4.666kg, Net: 3.572kg
Product number350059
EAN Code6410453500592
Color Brick Red | RR750 | RAL8004
Weight Gross: 4.666kg, Net: 3.572kg
Product number350052
EAN Code6410453500523
Color Black | RR33 | RAL9005
Weight Gross: 4.666kg, Net: 3.572kg
Product number35005B
EAN Code6417323851020
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 4.666kg, Net: 3.572kg
Product number35005D
EAN Code6410457657254
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 4.666kg, Net: 3.572kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
EPD LinkEPD-portal

Download CAD Models

Download DWG-file
35005x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: Exhaust ventilation pipes, P-Series pipes
