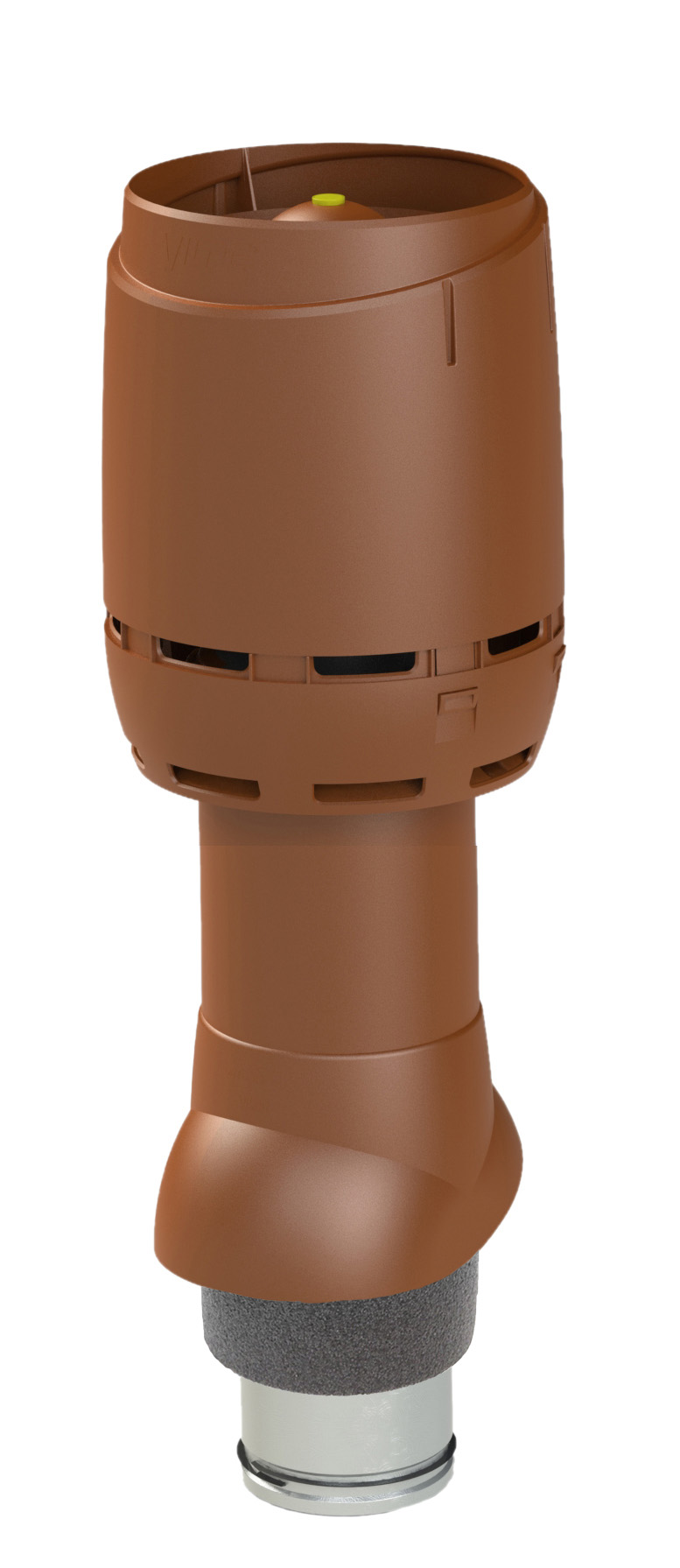

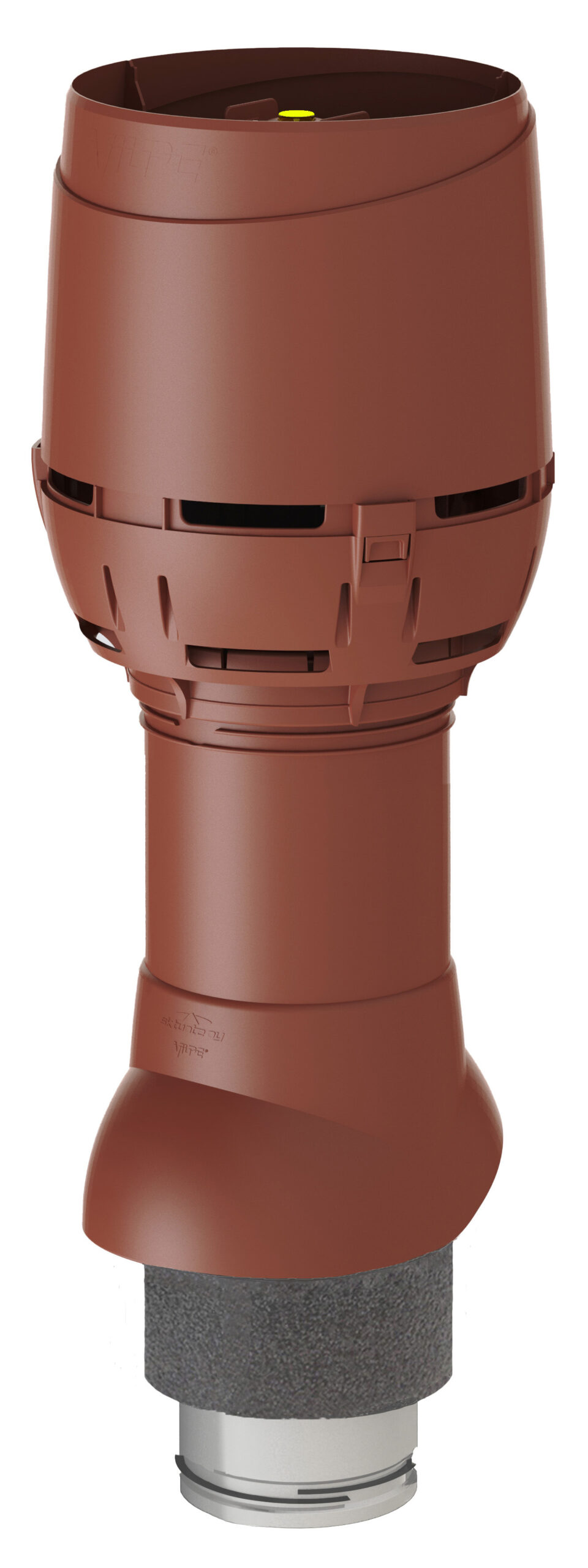

125P/IS/500 FLOW Exhaust Ventilation Pipe

Description: Insulated exhaust ventilation pipe with FLOW cowl. Includes a galvanized steel inner pipe with a lip seal. VILPE pass-throughs suitable for a range of roofing types and material are available separately.

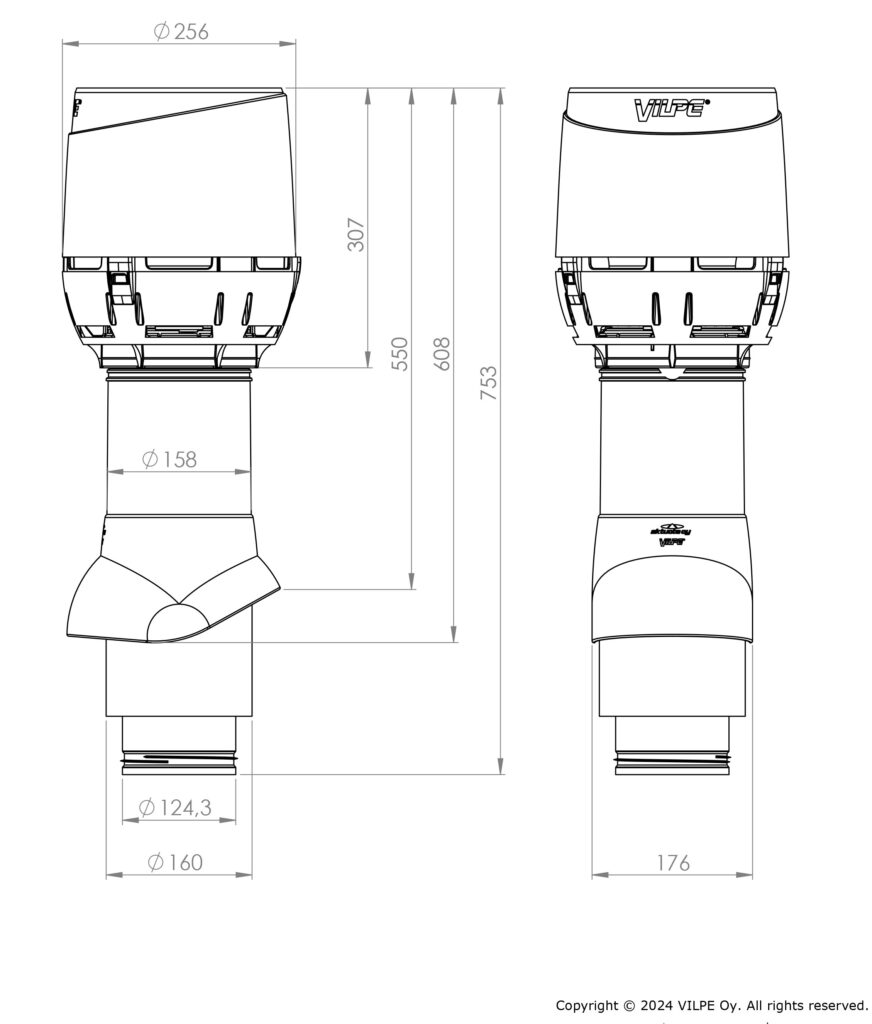

Dimensions: Duct size Ø 125 mm, external Ø 160 mm, height above roof approx. 500 mm.

Contents: Exhaust ventilation pipe, FLOW cowl, screws.
Color
Light Grey
Brown
Green
Grey
Red
Brick Red
Black
Anthracite
Chocolate Brown
Product number350041
EAN Code6410453500417
Color Light Grey | RAL7040
Weight Gross: 3.581kg, Net: 2.562kg
Product number350044
EAN Code6410453500448
Color Brown | RR32
Weight Gross: 3.581kg, Net: 2.562kg
Product number350046
EAN Code6410453500462
Color Green | RR11
Weight Gross: 3.581kg, Net: 2.562kg
Product number350047
EAN Code6410453500479
Color Grey | RR23 | RAL7015
Weight Gross: 3.581kg, Net: 2.562kg
Product number350048
EAN Code6410453500486
Color Red | RR29 | RAL3009
Weight Gross: 3.581kg, Net: 2.562kg
Product number350049
EAN Code6410453500493
Color Brick Red | RR750 | RAL8004
Weight Gross: 3.581kg, Net: 2.562kg
Product number350042
EAN Code6410453500424
Color Black | RR33 | RAL9005
Weight Gross: 3.581kg, Net: 2.562kg
Product number35004G
EAN Code6417323850900
Color Anthracite
Weight Gross: 3.581kg, Net: 2.562kg
Product number35004B
EAN Code6417323851112
Color Chocolate Brown | RR887
Weight Gross: 3.581kg, Net: 2.562kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size125 Ø

Download CAD Models

Download DWG-file
35004x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: Exhaust ventilation pipes, P-Series pipes
