ECo 110C/400 FLOW Roof Fan

ECo 110C/400 FLOW Roof Fan

Pielietojums: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Also suitable for ventilation of an ecological toilet. Not for indoor air ventilation. Installed in a sheet metal cone with opening Ø 230 mm, made by a sheet metal worker. The motor is specially protected.
Dimensions: Duct size Ø 110 mm, outer Ø 225 mm, height 400 mm.
Komplektā: Roof fan, screws, Installation, operating and maintenance instructions.
Krāsa
Melns
Gaišī pelēks
Brūns
Pelēks
Produkta numurs350562
LVI kods7820506
EAN kods6410453505627
Krāsa Melns | RR33 | RAL9005
Svars Bruto: 6.147kg, Neto: 5.051kg
Produkta numurs350561
LVI kods7820505
EAN kods6410453505610
Krāsa Gaišī pelēks | RAL7040
Svars Bruto: 6.12kg, Neto: 5.024kg
Produkta numurs350564
LVI kods7820507
EAN kods6410453505641
Krāsa Brūns | RR32 | RAL8019
Svars Bruto: 6.147kg, Neto: 5.051kg
Produkta numurs350567
LVI kods7820509
EAN kods6410453505672
Krāsa Pelēks | RR23 | RAL7024
Svars Bruto: 6.147kg, Neto: 5.051kg
SKU: N/A Categories: ,
Kopīgot produktu lapu
Drukāt kā pdf
Cauruļvada izmērs110 Ø
EPD LinkEPD-portal
Voltāža230V/50Hz
Strāva0,75 A
Rotācijas ātrums (rpm)3200 rpm
Jauda83 W
Ventilatora tipsEC

Performance data graphs

VILPE ECo FLOW 110 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Lejupielādēt CAD modeļus

Lejupielādēt DWG-datni
35056x.dwg

Materiāli un uzstādīšana

Send document by email

  • This field is for validation purposes and should be left unchanged.

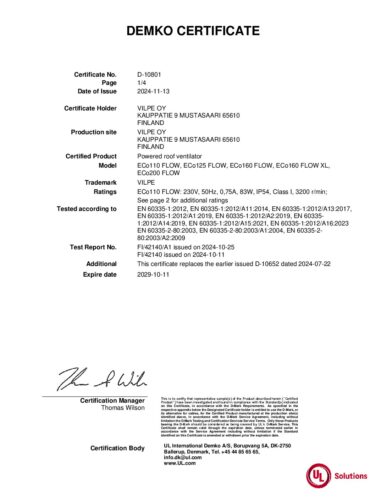

Sertifikāti

Product categories: C-sērijas jumta ventilatori, Jumta ventilatori
