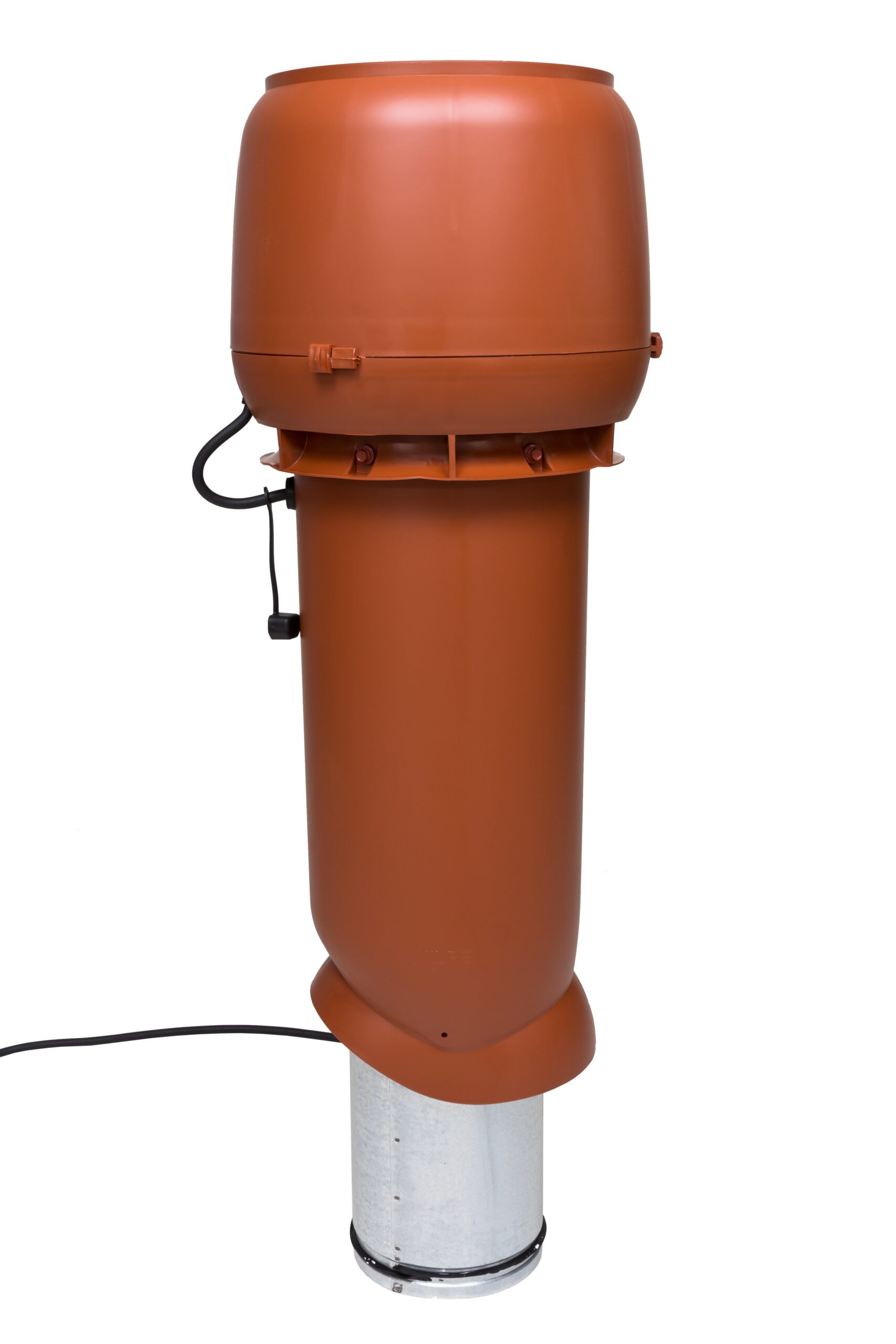

E220P/Ø160/700 katuseventilaator
E220P/Ø160/700 katuseventilaator - Image 2

E220P/Ø160/700 katuseventilaator

Kirjeldus: Isolatsiooniga katuseventilaator. Tsingitud terasest sisemine toru, tihendiga. Sobib erinevatele katustele. P-seeria XL mudelid vajavad XL läbiviiku. Mõõtmed: kanal Ø 160 mm, välismõõt Ø 225 mm, kõrgus 700 mm. Sisaldab: ventilaator, kruvid, juhendid. Yhteensopivat säätimet
Color
Product number73462
LVI Code7813702
EAN Code6417323734620
Color | RR33 | RAL9005
Weight Gross: 7.231kg, Net: 6.142kg
Product number73464
LVI Code7813704
EAN Code6417323734644
Color | RR32 | RAL8019
Weight Gross: 7.231kg, Net: 6.142kg
Product number73466
LVI Code7813706
EAN Code6417323734668
Color | RR11 | RAL6020
Weight Gross: 7.231kg, Net: 6.142kg
Product number73467
LVI Code7813707
EAN Code6417323734675
Color | RR23 | RAL7024
Weight Gross: 7.231kg, Net: 6.142kg
Product number7346D
LVI Code7820616
EAN Code6410457657520
Color
Weight Gross: 7.017kg, Net: 6.139kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,39 A
Rotation speed (rpm)2100 rpm
Capacitor2 µF
Power88 W
Fan typeAC

Performance data graphs

VILPE E220 - ISO 3471:1988 - ISO-5221:1984

Air density: 1.2

10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V

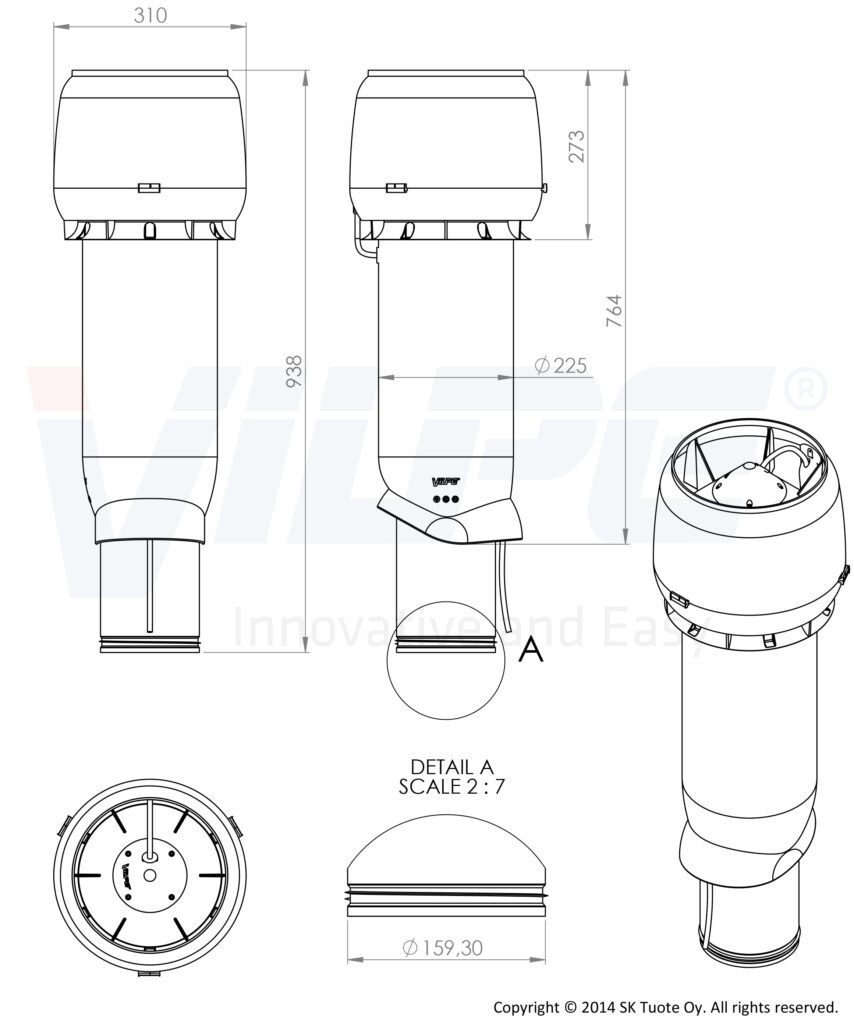

Download CAD Models

Download DWG-file
7346x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

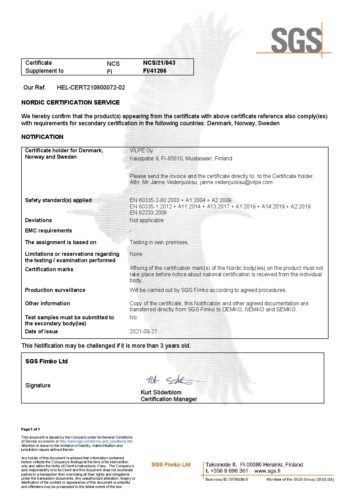

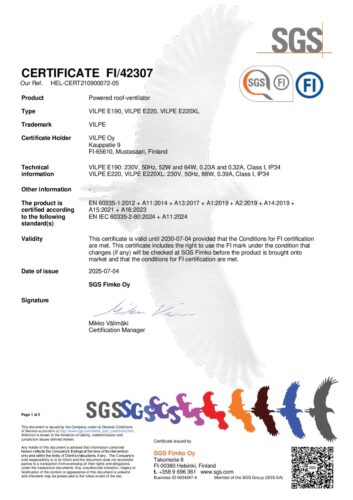

Certificates

Videos

Product categories: Katuseventilaatorid, P-seeria katuseventilaatorid
