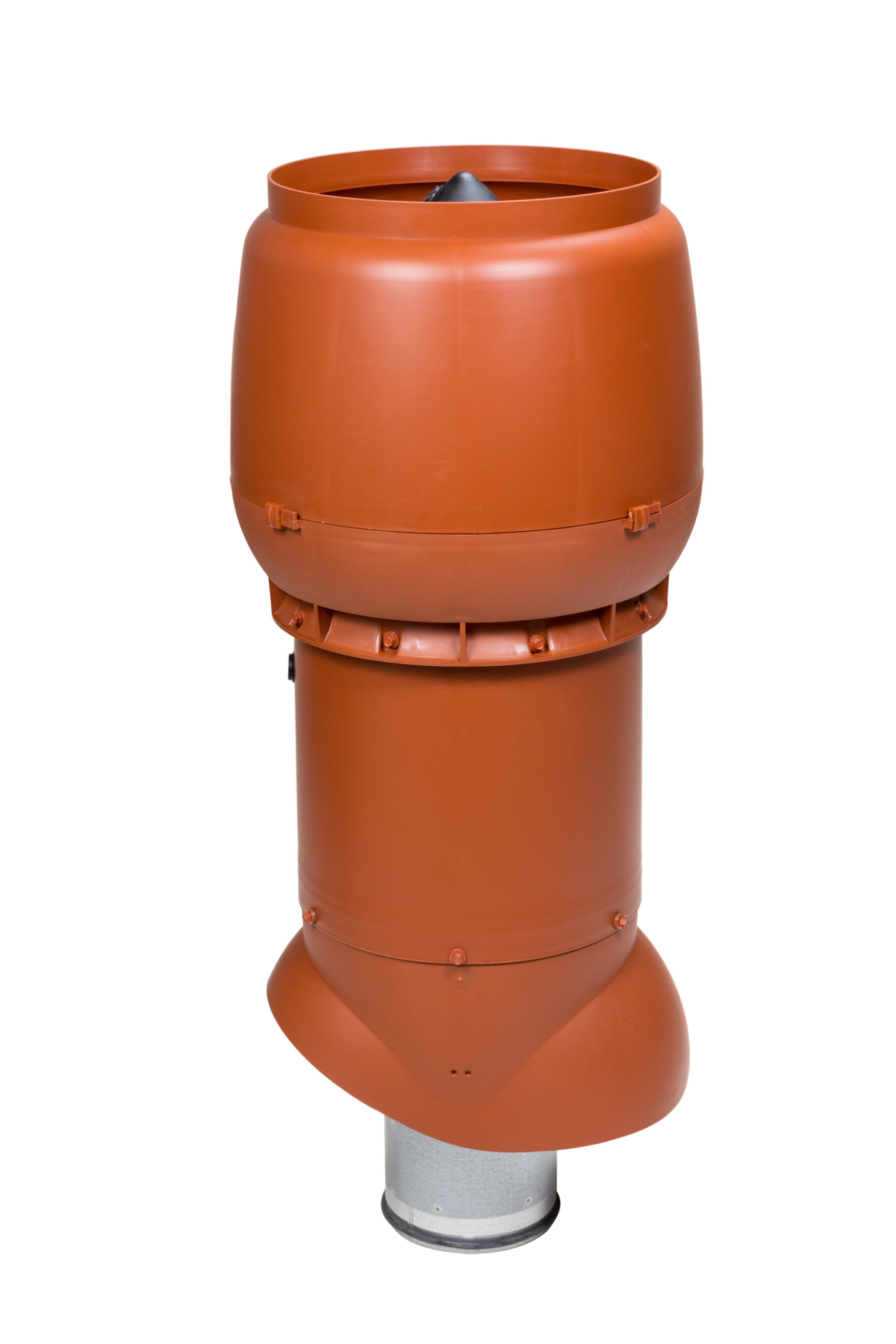

160P/IS/700 XL väljapuhketoru

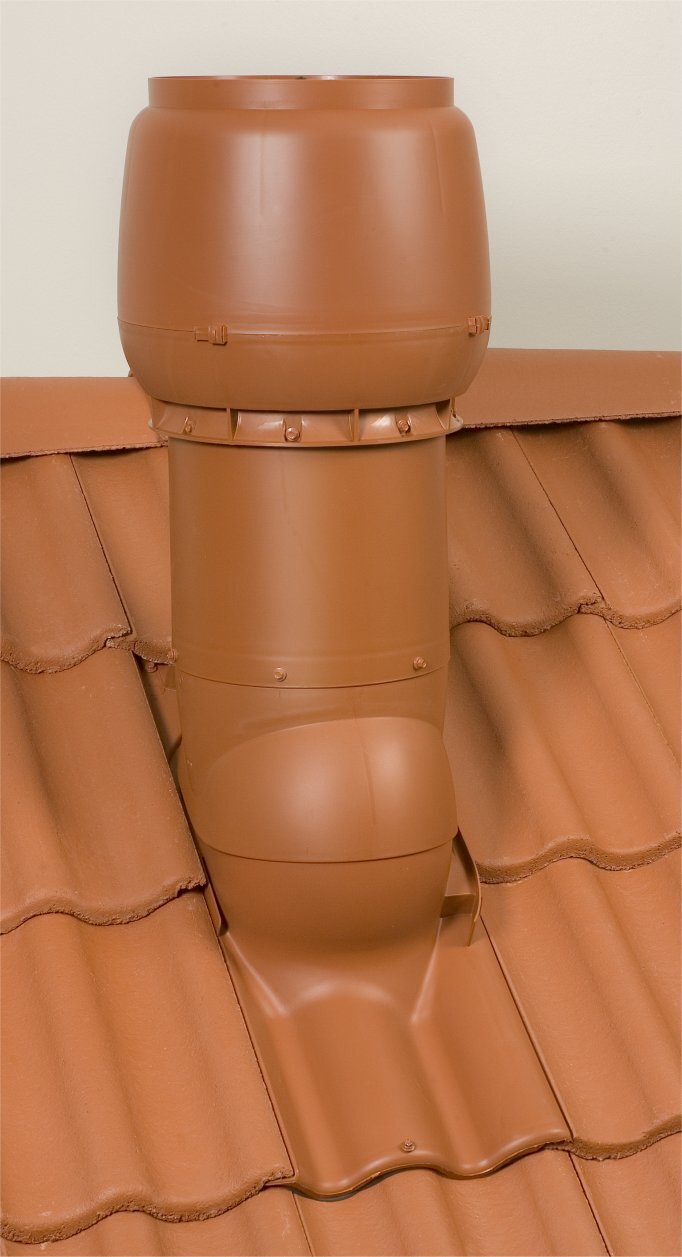

160P/IS/700 XL väljapuhketoru - Image 2

160P/IS/700 XL väljapuhketoru

Kirjeldus: Soojustatud XL väljapuhketoru koos mütsiga. Sisemine toru on tsingitud terasest ja tihendiga. Vajalik on eraldi VILPE XL läbiviik vastavalt katusematerjalile.

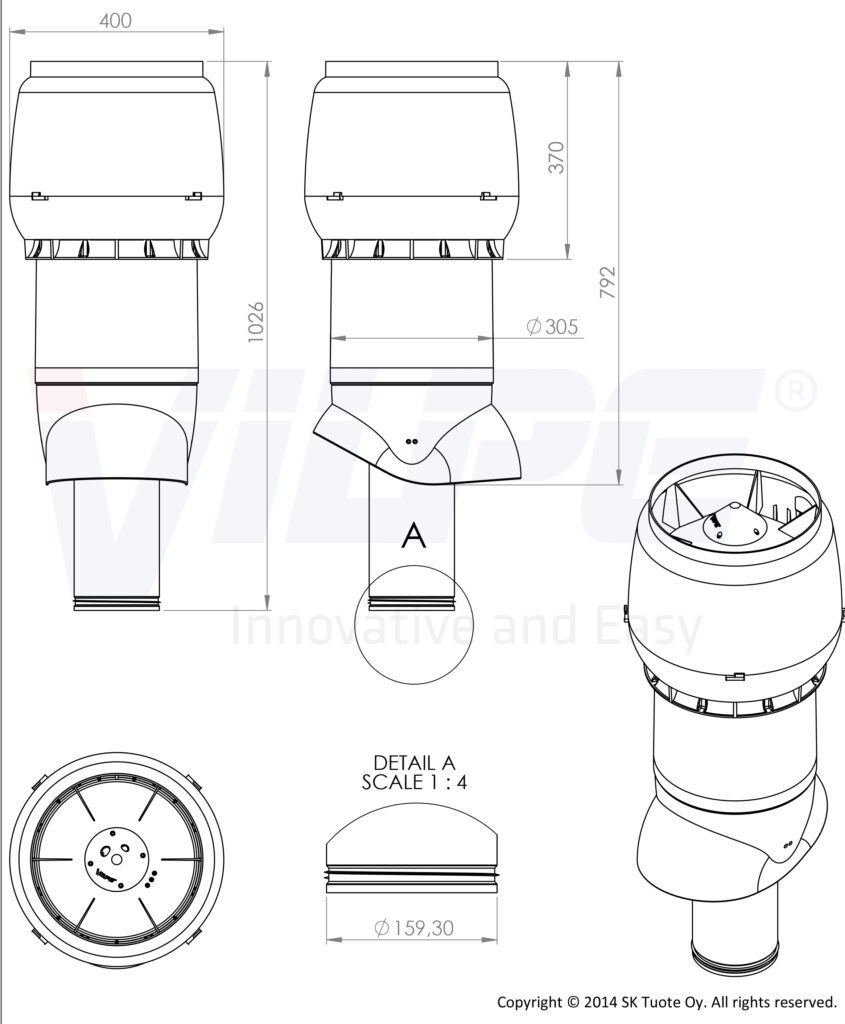

Mõõtmed: Toru Ø 160 mm, väline Ø 300 mm, kõrgus katuse kohal umbes 700 mm.

Sisaldab: väljapuhketoru, müts, kruvid.

Toode asendatakse uue ja energiatõhusama FLOW-tootega.
Color
Product number741772
LVI Code7813272
EAN Code6410457417728
Color | RR33 | RAL9005
Weight Gross: 7.716kg, Net: 6.306kg
Product number741774
LVI Code7813274
EAN Code6410457417742
Color | RR32
Weight Gross: 7.716kg, Net: 6.306kg
Product number741776
LVI Code7813276
EAN Code6410457417766
Color | RR11
Weight Gross: 7.716kg, Net: 6.306kg
Product number741777
LVI Code7813277
EAN Code6410457417773
Color | RR23 | RAL7015
Weight Gross: 7.716kg, Net: 6.306kg
Product number741778
LVI Code7813278
EAN Code6410457417780
Color | RR29 | RAL3009
Weight Gross: 7.716kg, Net: 6.306kg
Product number741779
LVI Code7813279
EAN Code6410457417797
Color | RR750 | RAL8004
Weight Gross: 7.716kg, Net: 6.306kg
SKU: N/A Category:
Share product page
Print pdf
Duct size160 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws

Download CAD Models

Download DWG-file
74177x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Tootest väljas
