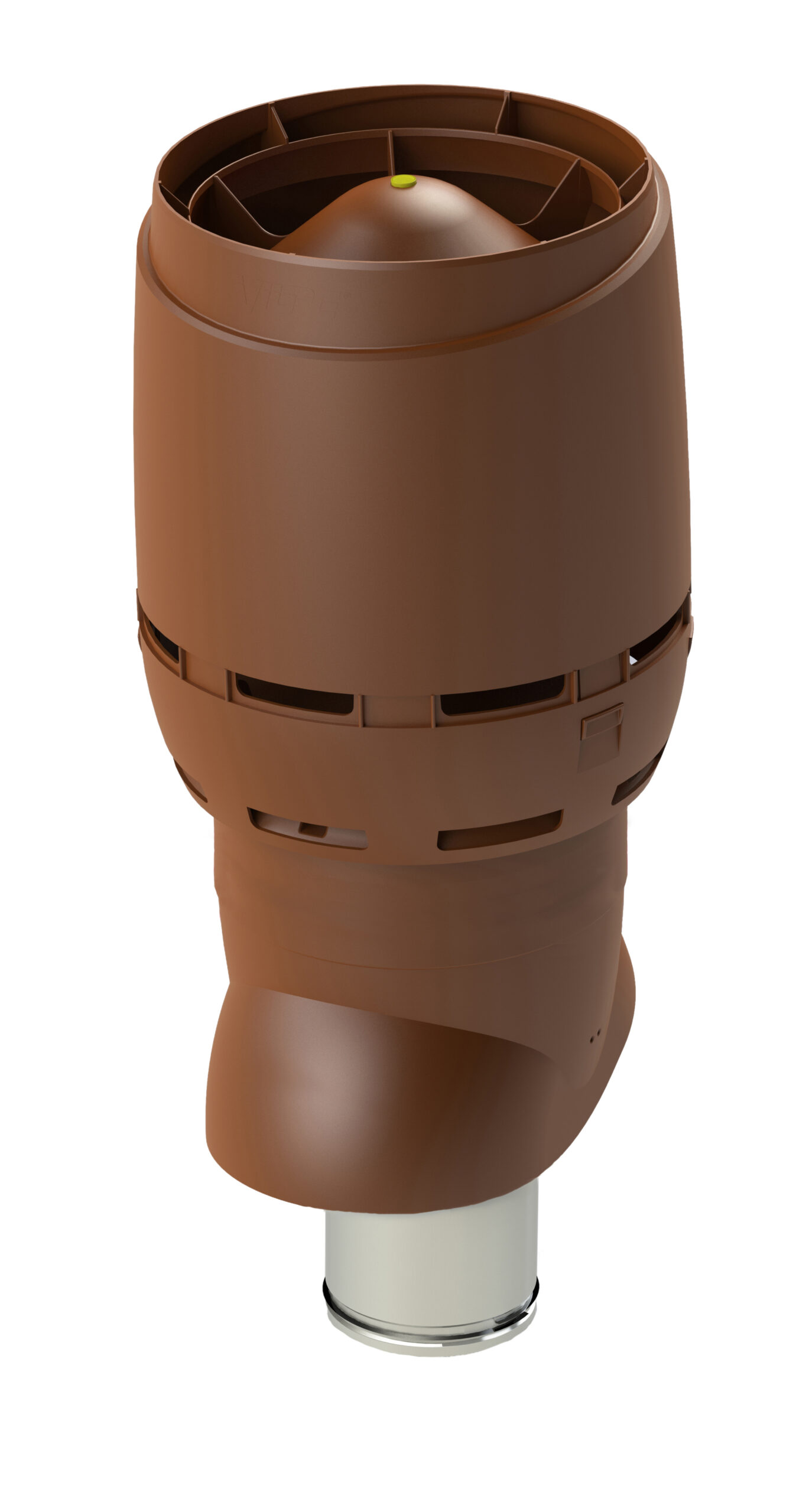

160P/IS/700 FLOW XL väljapuhketoru

160P/IS/700 FLOW XL väljapuhketoru

Kasutus: isoleeritud õhuvahetuse väljapuhketoru, millel on uus FLOW-sarja vihmamüts. Lisaks torule vajalik vastavalt katusekattele valitav VILPE® XL katuse läbiviik.

Mõõdud: kanali siseläbimõõt Ø 160 mm, välismõõt Ø 300 mm, kõrgus katusepinnast u 700 mm.

Komplektis: toru, FLOW vihmamüts, kinnituskruvid.
Color
Product number350111
LVI Code7820627
EAN Code6410453501117
Color | RAL7040
Weight Gross: 8.269kg, Net: 7.036kg
Product number350112
LVI Code7820349
EAN Code6410453501124
Color | RR33 | RAL9005
Weight Gross: 8.332kg, Net: 7.099kg
Product number350114
LVI Code7820350
EAN Code6410453501148
Color | RR32 | RAL8019
Weight Gross: 8.332kg, Net: 7.099kg
Product number350117
LVI Code7820352
EAN Code6410453501179
Color | RR23 | RAL7024
Weight Gross: 8.332kg, Net: 7.099kg
Product number350118
LVI Code7820353
EAN Code6410453501186
Color | RR29 | RAL3009
Weight Gross: 8.332kg, Net: 7.099kg
Product number350119
LVI Code7820354
EAN Code6410453501193
Color | RR750 | RAL8004
Weight Gross: 8.332kg, Net: 7.099kg
Product number35011D
LVI Code7820611
EAN Code6410457657544
Color | RR2H3 | RAL7016
Weight Gross: 5.977kg, Net: 4.744kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø

Download CAD Models

Download DWG-file
flow-xl-160-700p.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: P-seeria torud, Väljatõmbe torud
